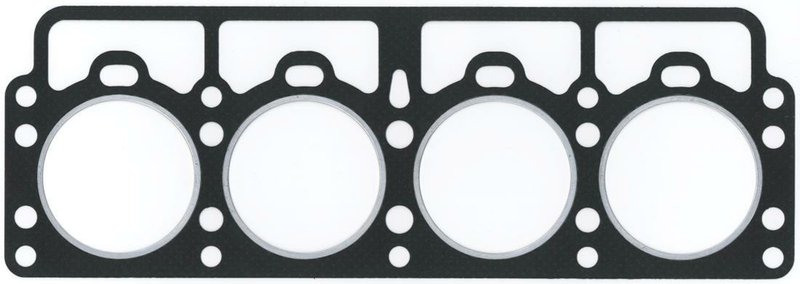

Elring 177.352 Engine Cylinder Head Gasket

Elring 177.352 Cylinder Head Gasket

The Elring 177.352 engine cylinder head gasket is a fibre composite sealing solution built around an 86 mm bore and 0.85 mm thickness. It is used in engine gasket and sealing system repairs where accurate combustion sealing and coolant/oil separation are critical.

Key Features

• Engine cylinder head gasket for sealing the cylinder head to the engine block
• Fibre composite gasket design for dependable sealing performance
• 86 mm diameter for the specified bore application
• 0.85 mm thickness for precise stack-up control
• Elring part number 177.352 for catalog matching and service lookup

Detailed Description

Elring 177.352 is a cylinder head gasket for engine rebuild and repair work where the sealing surface must maintain compression, coolant, and oil separation under operating heat and pressure. The fibre composite construction supports a stable seal across the head-to-block interface, while the 0.85 mm thickness helps maintain the intended engine geometry. For technicians searching for an Elring head gasket for Honda Civic or similar engine service applications, this part number is a direct reference point. It also appears in cross-reference listings for 913 9283 and 414963P applications.

When selecting a replacement head gasket, confirm bore size, thickness, and engine specification before installation. The Elring 177.352 is cataloged for engine sealing work where exact dimensions matter, including Honda Civic engine repair searches and other make/model lookup needs tied to the same application family.

Common Repair Uses

• Restores cylinder head sealing after overheating or gasket failure
• Addresses coolant loss caused by a breached head gasket
• Helps correct compression loss from combustion leakage
• Supports repair of oil and coolant mixing at the head-to-block joint
• Used during engine teardown, rebuild, or top-end service

Installation Notes and Tips

Clean and inspect the cylinder head and block mating surfaces before installation. Verify flatness, surface finish, and fastener condition, and follow the engine manufacturer’s torque sequence and tightening specifications. Match the gasket to the correct bore and thickness before assembly. This part cross-references 913 9283 and 414963P for the same application.

Quality Assurance

Elring is a recognized name in engine sealing systems, and this gasket is built to support precise fitment in cylinder head service work. Confirm all engine measurements and application details against the vehicle and engine code before final assembly.
