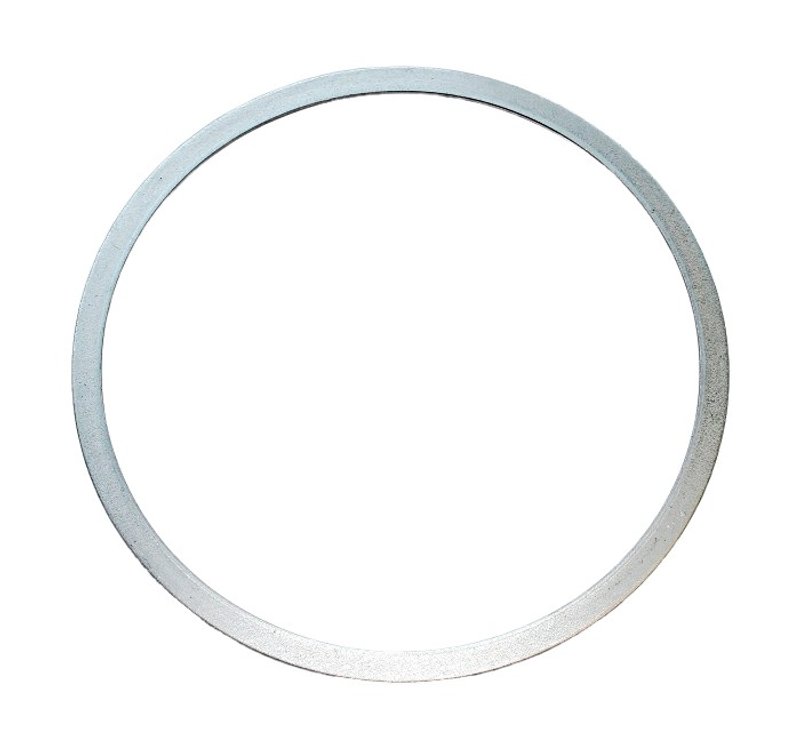

Elring 187.330 Engine Cylinder Head Gasket

Elring 187.330 Cylinder Head Gasket

Elring 187.330 is a steel engine cylinder head gasket built for precise sealing in the combustion chamber and coolant/oil passages. With a 0.7 mm thickness, 90.4 mm inner diameter, and 99.6 mm outer diameter, it is specified for applications that require accurate dimensional control and reliable head-to-block sealing.

Key Features

• Steel construction for stable sealing performance under engine heat and pressure
• 0.7 mm thickness for applications requiring a measured gasket stack height
• 90.4 mm inner diameter and 99.6 mm outer diameter for proper bore and sealing alignment
• Elring part number 187.330 for straightforward catalog lookup
• Cross-reference: Victor Reinz 61-21925-00 for the same application

Detailed Description

This Elring cylinder head gasket is engineered for engine rebuild and repair work where the head gasket must maintain compression and fluid separation across the cylinder head interface. The steel material supports consistent clamping and sealing characteristics, while the listed dimensions help match the gasket to the correct engine specification. For technicians and buyers searching for an Elring 187.330 head gasket, this part is a direct-fit sealing component for the intended engine application. It is also a relevant search match for Volkswagen and Audi engine gasket replacement needs, including Volkswagen Audi cylinder head gasket searches tied to the 187.330 part number.

What It Helps Address

• Coolant loss from a failed cylinder head seal
• Compression leakage between the head and block
• Oil and coolant mixing caused by gasket failure
• Overheating related to combustion gas leakage
• Engine teardown repairs requiring a replacement head gasket

Installation Notes and Tips

Confirm bore size, gasket thickness, and engine code before installation. Clean the cylinder head and block mating surfaces thoroughly, and inspect both for warpage or damage before assembly. Follow the manufacturer’s torque sequence and tightening specifications for the engine, and replace any components required by the service procedure. Verify that the gasket orientation matches the engine layout before final assembly.

Quality Assurance

Elring is a recognized sealing-system manufacturer with a strong OE-focused reputation in engine gaskets and related components. Part number 187.330 is built to the listed material and dimensional specifications for accurate catalog matching and repair planning.
