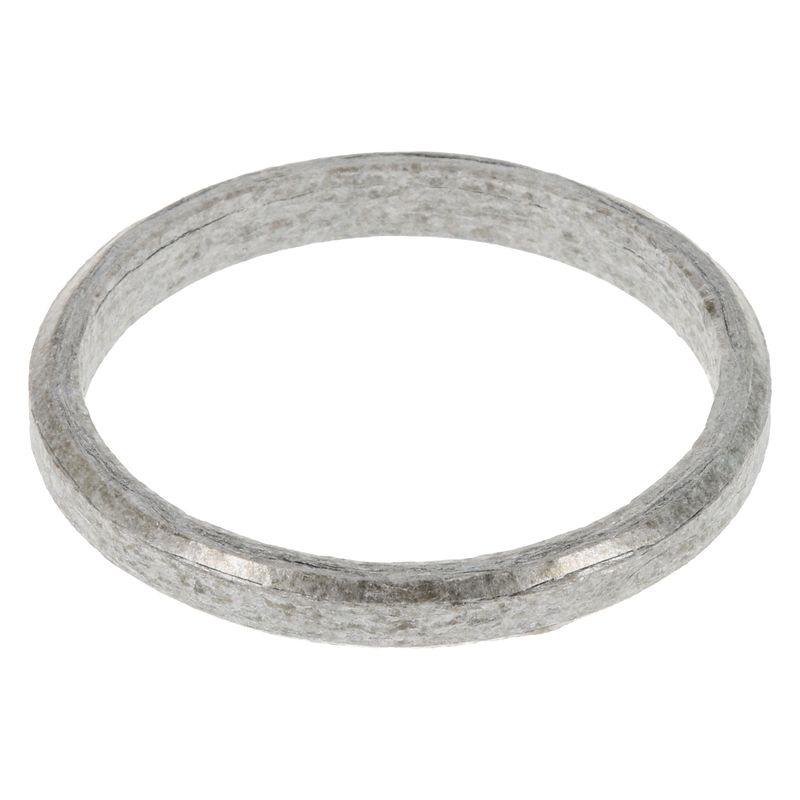

Elring 191.800 Turbocharger Exhaust Gasket

Turbocharger Exhaust Gasket Overview

The Elring 191.800 turbocharger exhaust gasket is a direct sealing component for exhaust turbocharger applications. It is built around precise dimensions to support a secure seal where the turbocharger exhaust connection must stay tight under heat and pressure.

Key Features

• Turbocharger exhaust gasket for exhaust-side sealing
• 41.4 mm inner diameter for application-specific fit
• 48.4 mm outer diameter for proper sealing surface coverage
• 5.5 mm thickness for controlled compression at the joint
• Elring part number 191.800 for catalog and service reference

Detailed Description

Elring 191.800 is a turbocharger exhaust gasket used in exhaust turbocharger sealing applications. The gasket dimensions are specified to match the connection geometry and help maintain a stable seal at the turbocharger exhaust interface. This part number is relevant for Chevrolet Colorado, GMC Canyon, and Chevrolet Express and GMC Savana van applications listed below, making it a practical choice when servicing the exhaust side of the turbo system. The 191.800 gasket is also cross-referenced to 55595128 for the same application.

What It Helps Solve

• Exhaust leaks at the turbocharger connection
• Loss of sealing integrity after gasket wear or heat cycling
• Noise caused by a leaking exhaust joint
• Soot buildup around the turbocharger exhaust flange

Installation Notes and Tips

Verify the gasket dimensions against the removed part before installation. Clean both mating surfaces thoroughly so the new gasket can seat evenly, and inspect the flange for warping, corrosion, or damage that could affect sealing. Confirm the vehicle application by year, make, and model before ordering.

Quality Assurance

Elring is a recognized sealing-system manufacturer with a focus on precision gasket applications. Part number 191.800 is specified for the listed fitments and cross-references 55595128 for the same application.
