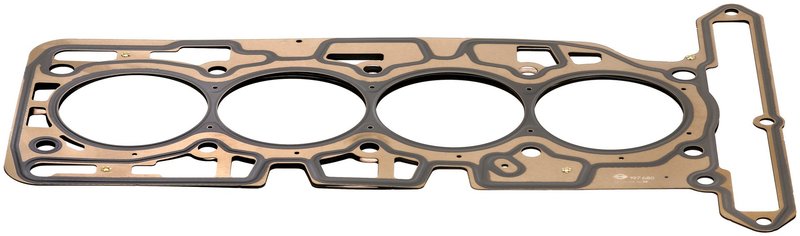

Elring 197.680 Engine Cylinder Head Gasket
| Brand | Elring 197.680 |
|---|---|
| Thickness | 0.65 |
| Diameter [Mm] | 96.4 |
| Gasket Design | Multilayer steel (mls) |
| Installed Thickness [Mm] | 0.65 |
| Fits | Chevrolet, GMC, and Isuzu · 24 vehicles |
MLS construction. Multilayer steel design helps maintain a reliable seal.
Precision thickness. 0.65 mm thickness supports consistent sealing performance.
Cylinder head gasket. Engine sealing component for dependable compression control.
Cross-references AP Exhaust 54981, 26389PT and 12582590 for the same application. See all 4.
Elring 197.680 Cylinder Head Gasket
Elring 197.680 is a multilayer steel (MLS) engine cylinder head gasket with a 0.65 mm installed thickness and a 96.4 mm diameter. It is built for precise sealing in the engine’s combustion and coolant/oil passages, making it a direct-fit option for select Chevrolet Colorado, GMC Canyon, and Isuzu i-290 applications.
Key Features
- Multilayer steel (MLS) gasket design for controlled sealing performance
- Installed thickness: 0.65 mm
- Diameter: 96.4 mm
- Engine cylinder head gasket for sealing the head-to-block interface
- Elring part number 197.680 for application matching and catalog lookup
Fitment Details
- Fits 2007-2012 Chevrolet Colorado, N/A; installed thickness 0.65 mm; diameter 96.4 mm.
- Fits 2007-2012 GMC Canyon, N/A; installed thickness 0.65 mm; diameter 96.4 mm.
- Fits 2007-2008 Isuzu i-290, N/A; installed thickness 0.65 mm; diameter 96.4 mm.
- Fits 2006 Chevrolet Colorado, N/A.
- Fits 2006 GMC Canyon, N/A.
This part cross-references AP Exhaust 54981 for the same application.
What It Is Used For
- Sealing combustion pressure between the cylinder head and engine block
- Maintaining separation between coolant and oil passages
- Addressing head-gasket failure symptoms during engine repair
- Supporting cylinder head service on Chevrolet Colorado and GMC Canyon engines
- Replacing a worn or damaged gasket during top-end engine work
Installation Notes and Tips
Verify engine code, bore diameter, and gasket thickness before installation. Clean the mating surfaces thoroughly, inspect the cylinder head and block for warpage, and follow the manufacturer’s torque sequence and torque-angle procedure during assembly. Confirm that the 96.4 mm diameter and 0.65 mm installed thickness match the engine specification for your Chevrolet Colorado, GMC Canyon, or Isuzu i-290.
Quality Assurance
Elring is a recognized sealing-system manufacturer, and this MLS cylinder head gasket is specified by its measured thickness and diameter for application matching. Part number 197.680 is listed with interchange references for catalog verification, including AP Exhaust 54981.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2012 | Chevrolet | Colorado | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2012 | GMC | Canyon | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2011 | Chevrolet | Colorado | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2011 | GMC | Canyon | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2010 | Chevrolet | Colorado | — | — | RWD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2010 | Chevrolet | Colorado | — | — | 4WD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2010 | GMC | Canyon | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2009 | Chevrolet | Colorado | — | Standard Cab Pickup | RWD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2009 | Chevrolet | Colorado | — | Extended Cab Pickup | RWD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2009 | Chevrolet | Colorado | — | Crew Cab Pickup | RWD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2009 | Chevrolet | Colorado | — | Standard Cab Pickup | 4WD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2009 | Chevrolet | Colorado | — | Extended Cab Pickup | 4WD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2009 | Chevrolet | Colorado | — | Crew Cab Pickup | 4WD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2009 | GMC | Canyon | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2008 | Chevrolet | Colorado | — | — | RWD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2008 | Chevrolet | Colorado | — | — | 4WD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2008 | GMC | Canyon | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2008 | Isuzu | i-290 | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2007 | Chevrolet | Colorado | — | — | RWD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2007 | Chevrolet | Colorado | — | — | 4WD | 2.9L | L4 | GAS | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2007 | GMC | Canyon | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2007 | Isuzu | i-290 | — | — | — | 2.9L | L4 | — | Installed Thickness: 0.65mm; Diameter: 96.4mm |
| 2006 | Chevrolet | Colorado | LS | Standard Cab Pickup | RWD | 2.8L | L4 | — | — |
| 2006 | GMC | Canyon | SL | Standard Cab Pickup | RWD | 2.8L | L4 | — | — |
