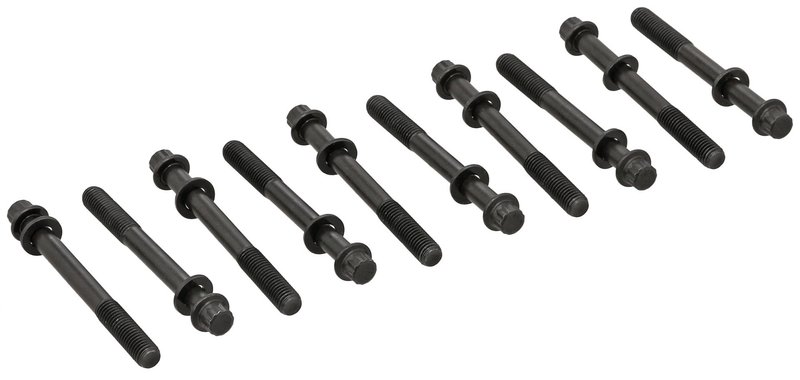

Elring 220.780 Engine Cylinder Head Bolt Set
| Brand | Elring 220.780 |
|---|---|
| Bolt Head-/Nut Design | Male star |
| Number of bolts/screws | 10 |
| Spanner Size | S10 |
| Thread Size | M 10x1,5x95 |
| Fits | Chevrolet, Geo, and Suzuki · 33 vehicles |
Cylinder head bolt set. Engine hardware for secure, precise fastening.
Male star design. Allows confident torque application during installation.
Cross-references 11117-73G00, 11117-73G00 (10x) and 49123991 for the same application. See all 4.
Elring Cylinder Head Bolt Set for Suzuki and Chevrolet
Elring 220.780 is an engine cylinder head bolt set built for specific Suzuki, Chevrolet, and Geo applications that use M10 x 1.5 x 95 hardware with a male star head design. It is a direct-fit hardware solution for engine rebuilds and head service where correct thread size, length, and head style matter.
Key Features
- Engine cylinder head bolt set from Elring
- Male star bolt head / nut design for proper tool engagement
- Thread size: M10 x 1.5 x 95
- Spanner size: S10
- Engine hardware for OE-style service and repair work
- Elring part number 220.780
Fitment and Application Details
Compatible with 1998-2002 Chevrolet Tracker, 1999-2002 Suzuki Vitara, 1998-2001 Chevrolet Metro, 1997-2001 Suzuki Swift, 1992-1993 Suzuki Swift, 1996-1997 Suzuki X-90, 1988-1995 Suzuki Samurai, and 1992-1994 Geo Metro. Fits 1998-2001 Chevrolet Metro and 1992-1994 Geo Metro with length 95 mm, M10 thread size, 1.5 mm thread pitch, and male star bolt head design. Elring 220.780 also cross-references 11117-73G00 and 49123991 for the same application.
What This Part Helps Address
- Replacing stretched or damaged cylinder head bolts during engine service
- Restoring proper clamping force after head gasket repair
- Correcting thread mismatch from incorrect fasteners
- Resolving head hardware wear on high-mileage engines
- Supporting accurate reassembly on Suzuki and Chevrolet small-displacement engines
Installation Notes and Tips
Verify thread size, length, and head design before installation. Clean the cylinder head and block threads thoroughly, and follow the vehicle service manual for tightening sequence and torque procedure. Because cylinder head fasteners are critical engine hardware, use the specified tightening method for the exact engine code and application.
Quality Assurance
Elring is a recognized engine sealing and hardware brand used in professional repair environments. Part number 220.780 is manufactured to match the listed OE-style fitment and dimensional requirements for the specified vehicles.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002 | Chevrolet | Tracker | Base | Sport Utility | 4WD | 1.6L | L4 | — |
| 2002 | Suzuki | Vitara | JA | Sport Utility | RWD | 1.6L | L4 | — |
| 2001 | Chevrolet | Metro | — | — | — | 1.3L | L4 | Length: 95mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Male Star |
| 2001 | Chevrolet | Tracker | Base | Sport Utility | 4WD | 1.6L | L4 | — |
| 2001 | Suzuki | Swift | GA | Hatchback | FWD | 1.3L | L4 | — |
| 2001 | Suzuki | Vitara | JLX | Sport Utility | 4WD | 1.6L | L4 | — |
| 2000 | Chevrolet | Metro | — | — | — | 1.3L | L4 | Length: 95mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Male Star |
| 2000 | Chevrolet | Tracker | Base | Sport Utility | RWD | 1.6L | L4 | — |
| 2000 | Suzuki | Swift | GA | Hatchback | FWD | 1.3L | L4 | — |
| 2000 | Suzuki | Vitara | JLX | Sport Utility | 4WD | 1.6L | L4 | — |
| 1999 | Chevrolet | Metro | — | — | — | 1.3L | L4 | Length: 95mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Male Star |
| 1999 | Chevrolet | Tracker | Base | Sport Utility | RWD | 1.6L | L4 | — |
| 1999 | Suzuki | Swift | Base | Hatchback | FWD | 1.3L | L4 | — |
| 1999 | Suzuki | Vitara | JX | Sport Utility | 4WD | 1.6L | L4 | — |
| 1998 | Chevrolet | Metro | — | — | — | 1.3L | L4 | Length: 95mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Male Star |
| 1998 | Chevrolet | Tracker | Base | Sport Utility | RWD | 1.6L | L4 | — |
| 1998 | Suzuki | Swift | Base | Hatchback | FWD | 1.3L | L4 | — |
| 1997 | Suzuki | Swift | Base | Hatchback | FWD | 1.3L | L4 | — |
| 1997 | Suzuki | X-90 | Base | Sport Utility | RWD | 1.6L | L4 | — |
| 1996 | Suzuki | X-90 | Base | Sport Utility | RWD | 1.6L | L4 | — |
| 1995 | Suzuki | Samurai | JL | Sport Utility | 4WD | 1.3L | L4 | — |
| 1994 | Geo | Metro | — | — | — | 1.3L | L4 | Length: 95mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Male Star |
| 1994 | Suzuki | Samurai | JL | Sport Utility | 4WD | 1.3L | L4 | — |
| 1993 | Geo | Metro | — | — | — | 1.3L | L4 | Length: 95mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Male Star |
| 1993 | Suzuki | Samurai | JA | Sport Utility | RWD | 1.3L | L4 | — |
| 1993 | Suzuki | Swift | GL | Hatchback | FWD | 1.6L | L4 | — |
| 1992 | Geo | Metro | — | — | — | 1.3L | L4 | Length: 95mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Male Star |
| 1992 | Suzuki | Samurai | JA | Sport Utility | RWD | 1.3L | L4 | — |
| 1992 | Suzuki | Swift | GL | Hatchback | FWD | 1.6L | L4 | — |
| 1991 | Suzuki | Samurai | JA | Sport Utility | RWD | 1.3L | L4 | — |
| 1990 | Suzuki | Samurai | JL | Sport Utility | 4WD | 1.3L | L4 | — |
| 1989 | Suzuki | Samurai | Base | Sport Utility | 4WD | 1.3L | L4 | — |
| 1988 | Suzuki | Samurai | JA | Sport Utility | 4WD | 1.3L | L4 | — |
