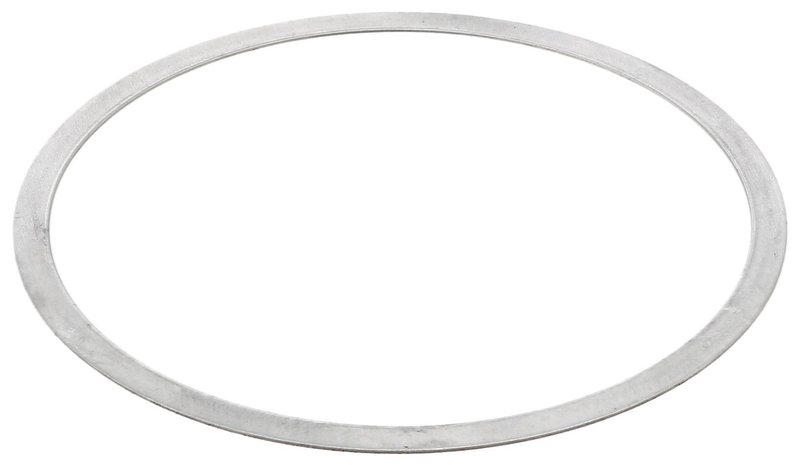

Elring 225.258 Engine Cylinder Head Gasket

Elring 225.258 Cylinder Head Gasket for Vanagon

The Elring 225.258 engine cylinder head gasket is a steel gasket built to the listed dimensions for a precise sealing interface. It is a direct-fit option for 1980-1983 Volkswagen Vanagon applications with the specified 0.7 mm thickness, 94.4 mm inner diameter, and 104.6 mm outer diameter.

Key Features

• Steel construction for a durable sealing surface
• Thickness: 0.7 mm
• Inner diameter: 94.4 mm
• Outer diameter: 104.6 mm
• Elring part number 225.258 for catalog matching and service lookup

Detailed Description

Elring 225.258 is an engine cylinder head gasket for Volkswagen Vanagon models from 1980-1983. The steel material and measured dimensions are important for maintaining the correct seal between the cylinder head and engine block, especially in applications where gasket thickness and bore sizing must match the original specification. If you are searching for a Volkswagen Vanagon head gasket, Elring 225.258 provides the listed dimensional fitment needed for service work and engine repair.

This part cross-references Victor Reinz 61-23455-00 for the same application. The Elring 225.258 also aligns with common OE-style reference numbers used in cylinder head gasket service.

What It Helps Fix

• Compression loss from a worn or damaged head gasket
• Coolant leakage at the cylinder head sealing surface
• Combustion gas leakage between the head and block
• Oil seepage caused by sealing failure at the head interface
• Overheating concerns related to poor cylinder sealing

Installation Notes and Tips

Verify bore diameter, gasket thickness, and engine code before installation. Clean both mating surfaces thoroughly and inspect the cylinder head and block for warpage or damage before assembly. Use the listed dimensions and the vehicle application data to confirm the correct Volkswagen Vanagon head gasket before final installation. The part number 225.258 should be matched against the engine specification during ordering and service.

Quality Assurance

Elring is a recognized sealing-system manufacturer with extensive OE and aftermarket coverage. This gasket is cataloged for the specified Volkswagen Vanagon fitment and dimensional requirements, supporting accurate parts selection for engine repair.
