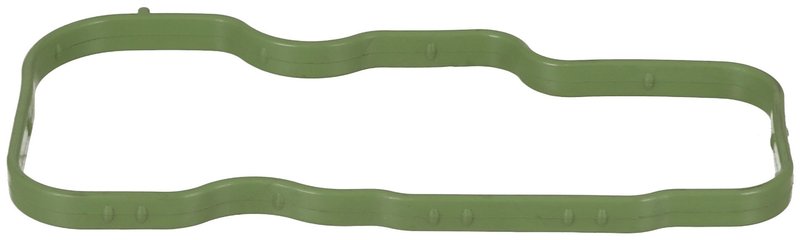

Elring 259.650 Fuel Injection Throttle Body Mounting Gasket
| Brand | Elring 259.650 |
|---|---|
| Fits | Audi and Volkswagen · 17 vehicles |
Throttle body gasket. Provides a reliable seal for the fuel injection system.
Cross-references 059 129 717 K and 955 110 147 10 for the same application. See all 2.
Elring 259.650 Fuel Injection Throttle Body Mounting Gasket
Elring 259.650 is a fuel injection throttle body mounting gasket for left-side applications in select Volkswagen and Audi vehicles. It provides a direct sealing solution for the throttle body mounting point, helping maintain proper intake tract integrity on covered fitments.
Key Features
- Fuel injection throttle body mounting gasket for left-side installation
- Elring part number 259.650 for catalog and service reference
- Fits 2009-2018 Volkswagen Touareg, N/A
- Fits 2014-2016 Audi Q5, N/A
- Fits 2009-2012 Audi Q7, N/A
- Cross-references OE-style part numbers 059 129 717 K and 955 110 147 10 for the same application
Application Details
This gasket is used at the throttle body mounting interface on select Volkswagen Touareg, Audi Q5, and Audi Q7 models. The Elring 259.650 gasket is specified for left-position applications and is listed for 2009-2018 Volkswagen Touareg, 2014-2016 Audi Q5, and 2009-2012 Audi Q7.
What It Helps Address
- Air leakage at the throttle body mounting surface
- Vacuum-related idle irregularities caused by a poor seal
- Unmetered air entering the intake system
- Throttle body sealing wear during service replacement
- Intake sealing issues on covered Volkswagen and Audi applications
Installation Notes
Verify the left-side position and match the vehicle application before installation. Clean the mating surfaces thoroughly and inspect the throttle body flange for damage or distortion before fitting the gasket. Confirm the part number 259.650 against the original component and vehicle service information for the exact application.
Quality Assurance
Elring is a recognized sealing-system manufacturer, and this gasket is cataloged for specific OE-style applications on Volkswagen Touareg, Audi Q5, and Audi Q7 models.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2018 | Volkswagen | Touareg | Wolfsburg | Sport Utility | AWD | 3.0L | V6 | N/A | — |
| 2017 | Volkswagen | Touareg | Hybrid | Sport Utility | AWD | 3.0L | V6 | N/A | — |
| 2016 | Audi | Q5 | — | — | — | 3.0L | V6 | N/A | — |
| 2016 | Volkswagen | Touareg | Comfortline | Sport Utility | AWD | 3.0L | V6 | N/A | — |
| 2015 | Audi | Q5 | — | — | — | 3.0L | V6 | N/A | — |
| 2015 | Volkswagen | Touareg | Comfortline TDI | Sport Utility | AWD | 3.0L | V6 | N/A | — |
| 2014 | Audi | Q5 | — | — | — | 3.0L | V6 | N/A | — |
| 2014 | Volkswagen | Touareg | Base | Sport Utility | AWD | 3.0L | V6 | N/A | — |
| 2013 | Volkswagen | Touareg | Execline TDI | Sport Utility | AWD | 3.0L | V6 | N/A | — |
| 2012 | Audi | Q7 | — | — | — | 3.0L | V6 | N/A | — |
| 2012 | Volkswagen | Touareg | — | — | — | 3.0L | V6 | N/A | — |
| 2011 | Audi | Q7 | — | — | — | 3.0L | V6 | N/A | — |
| 2011 | Volkswagen | Touareg | — | — | — | 3.0L | V6 | N/A | — |
| 2010 | Audi | Q7 | — | — | — | 3.0L | V6 | N/A | — |
| 2010 | Volkswagen | Touareg | — | — | — | 3.0L | V6 | N/A | — |
| 2009 | Audi | Q7 | — | — | — | 3.0L | V6 | N/A | — |
| 2009 | Volkswagen | Touareg | — | — | — | 3.0L | V6 | N/A | — |
