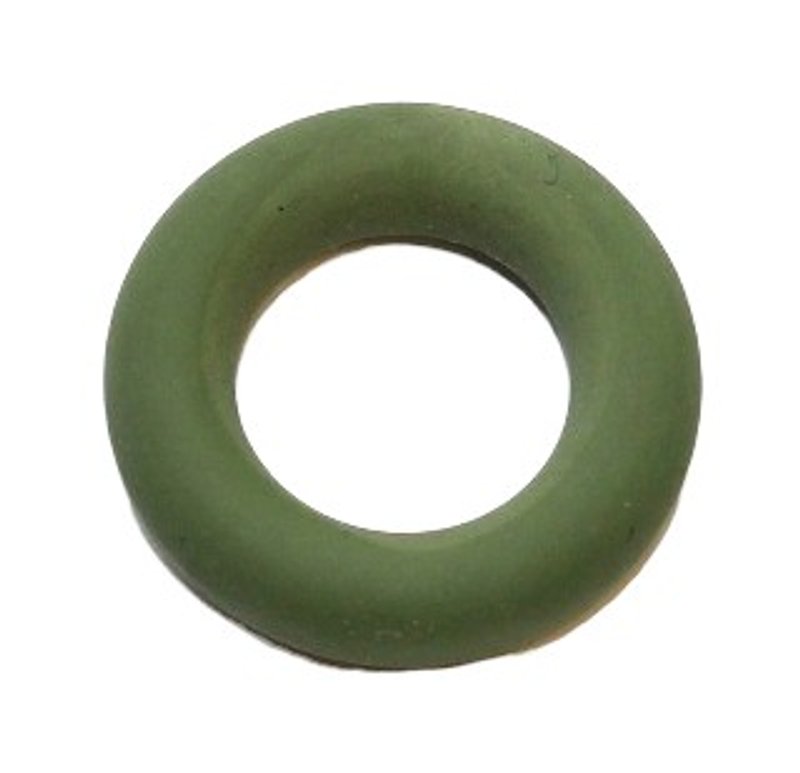

Elring 284.900 Turbocharger Oil Line Seal

Turbocharger Oil Line Seal for Mercedes-Benz

Elring 284.900 is a turbocharger oil line seal built as an FPM O-ring for precise sealing at the turbo oil connection. With an inside diameter of 7.8 mm, outer diameter of 14.2 mm, and 3.2 mm thickness, it is sized for applications that require a stable, heat-resistant sealing ring.

• FPM (fluoride rubber) construction for oil-sealing applications
• O-ring shape for a secure turbocharger oil line seal
• Inside diameter: 7.8 mm
• Outer diameter: 14.2 mm
• Thickness: 3.2 mm
• Elring part number 284.900

Fitment and Cross References

Compatible with a wide range of Mercedes-Benz and INFINITI turbocharged applications, including Fits 2015-2023 Mercedes-Benz C300, N/A; Fits 2017-2023 Mercedes-Benz E300, N/A; Fits 2016-2023 Mercedes-Benz GLC300, N/A; and Fits 2018-2019 INFINITI Q50, N/A. This part cross-references OE-style numbers 024 997 10 45 and A 024 997 10 45 for the same application.

Additional vehicle coverage includes Mercedes-Benz E350, GLE350, A220, C43 AMG, CLA250, E200, GLA250, S450, SL450, SLC300, V250, QX30, and other listed models across 2012-2023. The Elring 284.900 seal is used where the turbocharger oil line requires a correctly sized O-ring to maintain a clean, sealed connection.

What This Seal Helps Address

• Oil seepage at the turbocharger oil line connection
• Sealing loss caused by a flattened or hardened O-ring
• Leaks after turbo oil line service or removal
• Contamination around the turbo oil feed or return sealing point
• Fitment issues when replacing an OE-style turbo oil line seal

Installation Notes and Tips

Inspect the sealing groove and mating surfaces before installation. Replace the seal if it shows cuts, flattening, swelling, or heat damage, and verify the dimensions match the original application before assembly. Clean oil residue from the connection area so the O-ring seats evenly.

Quality Assurance

Elring is known for sealing-system components used in demanding engine and turbocharger applications. Part number 284.900 is manufactured as a precision O-ring seal for the specified turbocharger oil line applications.
