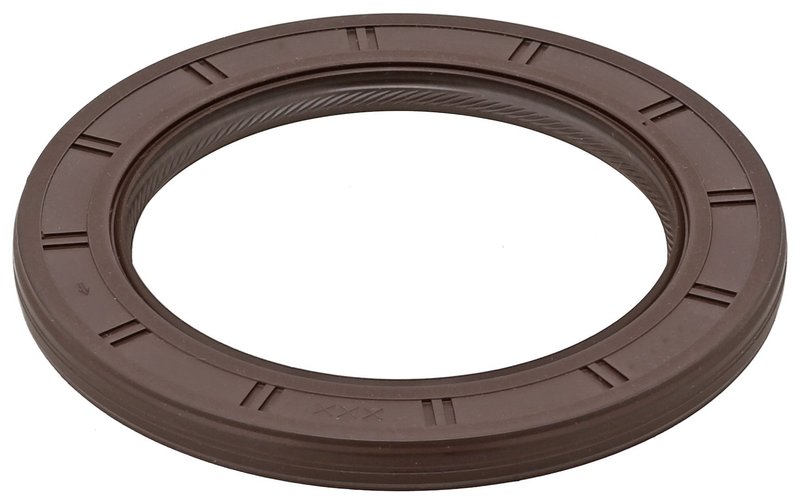

Elring 286.230 Engine Crankshaft Seal - Rear
| Brand | Elring 286.230 |
|---|---|
| Position | Rear |
| Material | Fpm (fluoride rubber) |
| Inside Diameter | 78.0 |
| Thickness | 8.5 |
| Outside Diameter | 110.0 |
| Dust Cover | With dust lip |
| Radial Shaft Seal Design | Asw |
| Swirl Type | Ld |
| Fits | Lexus, Pontiac, Scion, and Toyota · 103 vehicles |
Fluoride rubber seal. Resists heat and oil for dependable crankshaft sealing.
Dust lip included. Helps keep contaminants out and protect the sealing surface.
Radial shaft seal design. Built for precise sealing performance in engine applications.
Cross-references MAHLE JV1727, Victor Reinz 81-54087-00 and 90311-76002 for the same application. See all 7.
$23.73Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
$23.73
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Crankshaft Seal options
Engine Crankshaft Seal for Toyota and Lexus
Elring 286.230 is an engine crankshaft seal built with FPM (fluoride rubber) for reliable sealing at the transmission side of the engine. With an 8.5 mm thickness, 78.0 mm inside diameter, 110.0 mm outside diameter, and a dust lip, it is specified for a precise OE-style fit on select Toyota, Lexus, and Scion applications.
Use Elring 286.230 when you need a rear crankshaft seal for Toyota Corolla, Prius, C-HR, Matrix, Prius Prime, Prius AWD-e, Prius Plug-In, Lexus CT200h, or Scion iM applications. This part number is also referenced as 286.230 for catalog and interchange lookup.
Key Features
- FPM (fluoride rubber) sealing material for durability in engine oil environments
- 8.5 mm thickness with 78.0 mm inside diameter and 110.0 mm outside diameter
- Dust lip helps protect the sealing edge from contamination
- Radial shaft seal design: ASW
- Swirl type: LD / left-hand twist
- Rear, transmission-side application on listed vehicles
Detailed Description
Elring 286.230 is an engine crankshaft seal engineered for rear, transmission-side service on a wide range of Toyota hybrid and compact models. The FPM construction is suited to demanding sealing conditions, while the dust lip and left-hand twist swirl design support stable sealing performance at the crankshaft interface. For buyers searching by fitment, this seal matches applications such as 2009-2019 Toyota Corolla, 2010-2019 Toyota Prius, 2011-2017 Lexus CT200h, and 2017-2020 Toyota Prius Prime, along with additional Corolla, Matrix, Prius V, Prius Plug-In, C-HR, Prius AWD-e, and Scion iM listings. Elring 286.230 cross-references MAHLE JV1727 and Victor Reinz 81-54087-00 for the same application.
What It Helps Solve
- Rear main crankshaft oil leakage at the transmission side
- Oil seepage around the crankshaft seal area
- Contamination entering the seal lip area
- Seal wear from age, heat, and fluid exposure
- Service replacement for worn OE-style crankshaft seals
Installation Notes and Tips
- Verify inside diameter, outside diameter, and thickness before installation.
- Confirm rear/transmission-side placement for the exact vehicle and engine configuration.
- Inspect the crankshaft sealing surface for grooves, scoring, or contamination before fitting the new seal.
- Install with the sealing lip oriented correctly and avoid damaging the dust lip during assembly.
- Clean the housing and surrounding area thoroughly to support proper sealing.
Quality Assurance
Elring is a recognized sealing-system manufacturer, and this crankshaft seal is built to OE-style dimensional specifications for the listed Toyota, Lexus, and Scion applications.
This part fits 103 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2024 | Toyota | Corolla | — | — | — | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | Rear | Transmission Side |
| 2024 | Toyota | Prius | Base | Hatchback | FWD | 1.8L | L4 | — | N/A | — |
| 2023 | Toyota | Corolla | — | — | — | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | Rear | Transmission Side |
| 2023 | Toyota | Prius | Base | Hatchback | FWD | 1.8L | L4 | — | N/A | — |
| 2022 | Toyota | C-HR | — | — | — | 2.0L | L4 | GAS | Rear | Transmission Side |
| 2022 | Toyota | Corolla | Hybrid | Sedan | FWD | 1.8L | L4 | — | N/A | — |
| 2022 | Toyota | Prius | Base | Hatchback | FWD | 1.8L | L4 | — | N/A | — |
| 2022 | Toyota | Prius AWD-e | Base | Hatchback | AWD | 1.8L | L4 | — | N/A | — |
| 2021 | Toyota | C-HR | — | — | — | 2.0L | L4 | GAS | Rear | Transmission Side |
| 2021 | Toyota | Corolla | Hybrid | Sedan | FWD | 1.8L | L4 | — | N/A | — |
| 2021 | Toyota | Prius | Base | Hatchback | FWD | 1.8L | L4 | — | N/A | — |
| 2021 | Toyota | Prius AWD-e | Base | Hatchback | AWD | 1.8L | L4 | — | N/A | — |
| 2020 | Toyota | C-HR | — | — | — | 2.0L | L4 | GAS | Rear | Transmission Side |
| 2020 | Toyota | Corolla | Hybrid | Sedan | FWD | 1.8L | L4 | — | N/A | — |
| 2020 | Toyota | Prius | LE | Hatchback | FWD | 1.8L | L4 | — | N/A | — |
| 2020 | Toyota | Prius AWD-e | Base | Hatchback | AWD | 1.8L | L4 | — | N/A | — |
| 2020 | Toyota | Prius Prime | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2019 | Toyota | C-HR | — | — | — | 2.0L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2019 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2019 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2019 | Toyota | Prius AWD-e | Base | Hatchback | AWD | 1.8L | L4 | — | N/A | — |
| 2019 | Toyota | Prius Prime | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2018 | Toyota | C-HR | — | — | — | 2.0L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2018 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist; Transmission End |
| 2018 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2018 | Toyota | Corolla iM | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist; Transmission End |
| 2018 | Toyota | Corolla iM | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2018 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2018 | Toyota | Prius Prime | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2018 | Toyota | Prius V | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2017 | Lexus | CT200h | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2017 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist; Transmission End |
| 2017 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2017 | Toyota | Corolla iM | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist; Transmission End |
| 2017 | Toyota | Corolla iM | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2017 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2017 | Toyota | Prius Prime | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2017 | Toyota | Prius V | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Lexus | CT200h | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Scion | iM | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Toyota | Prius | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Toyota | Prius V | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Lexus | CT200h | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Toyota | Prius | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Toyota | Prius Plug-In | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Toyota | Prius V | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Lexus | CT200h | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Prius Plug-In | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Prius V | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Lexus | CT200h | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Prius Plug-In | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Prius V | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Lexus | CT200h | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Prius | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Prius Plug-In | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Prius V | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2011 | Lexus | CT200h | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist; Transmission End |
| 2011 | Lexus | CT200h | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2011 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2011 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2011 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2011 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2011 | Toyota | Prius | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2011 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2010 | Pontiac | Vibe | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2010 | Pontiac | Vibe | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2010 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2010 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2010 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2010 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2010 | Toyota | Prius | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Pontiac | Vibe | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Pontiac | Vibe | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist; Transmission End |
| 2009 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Toyota | Corolla | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | Rear | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Toyota | Matrix | — | — | — | 1.8L | L4 | — | N/A | Width: 8.5mm; Inner Diameter: 78mm; Outer Diameter: 110mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2008 | Toyota | Corolla | CE | Sedan | FWD | 1.8L | L4 | — | N/A | — |
| 2008 | Toyota | Matrix | Base | Wagon | FWD | 1.8L | L4 | — | N/A | — |
| 2007 | Toyota | Corolla | CE | Sedan | FWD | 1.8L | L4 | — | N/A | — |
| 2006 | Toyota | Corolla | CE | Sedan | FWD | 1.8L | L4 | — | N/A | — |
| No rows match your filter. | ||||||||||
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MAHLE — JV1727Victor Reinz — 81-54087-0090311-7600290311-W001119035191BBS 40732P77746-01
