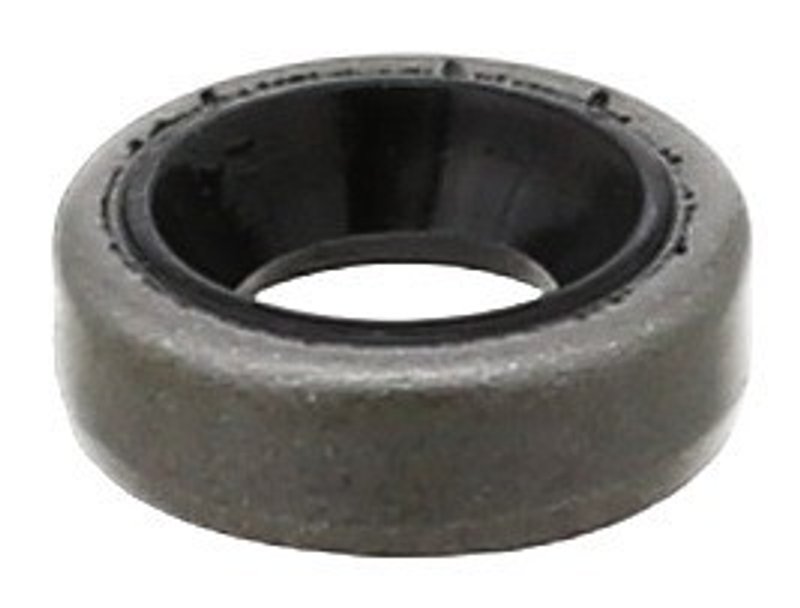

Elring 322.415 Manual Transmission Main Shaft Seal

Reliable Manual Transmission Main Shaft Seal for Volkswagen Models

The Elring 322.415 manual transmission main shaft seal is engineered to provide effective sealing for select Volkswagen vehicles. Designed with nitrile butadiene rubber (NBR), this seal offers durability and resistance to wear, ensuring consistent performance in your Volkswagen Cabriolet, Golf, Jetta, Rabbit Convertible, and Rabbit Pickup.

• Material: NBR (nitrile butadiene rubber) for enhanced oil resistance
• Inside Diameter: 8.0 mm for precise fitment
• Outside Diameter: 14.0 mm to match OEM specifications
• Thickness: 4.0 mm for optimal sealing pressure
• Radial Shaft Seal Design: Type B for reliable shaft sealing
• Without dust lip to suit specific transmission configurations

Technical Details and Material Specifications

The Elring 322.415 main shaft seal is constructed from nitrile butadiene rubber (NBR), a material known for its resistance to oils, fuels, and other automotive fluids. The seal’s dimensions—8.0 mm inside diameter, 14.0 mm outside diameter, and 4.0 mm thickness—are designed to meet the exacting standards required for manual transmission applications. The radial shaft seal design type B ensures a secure fit around the shaft, preventing fluid leaks and contamination. This particular seal does not include a dust lip, which aligns with the design requirements of certain Volkswagen manual transmissions.

Compatible Volkswagen Models and Applications

This manual transmission main shaft seal is compatible with a range of Volkswagen vehicles, including the Cabriolet, Golf, Jetta, Rabbit Convertible, and Rabbit Pickup. It is specifically designed to replace worn or damaged seals in these models, maintaining transmission integrity and preventing fluid leaks.

• Prevents transmission fluid leaks from the main shaft
• Reduces contamination ingress into the transmission system
• Helps maintain proper lubrication within the manual transmission
• Addresses issues related to seal wear and degradation
• Supports smooth operation of the manual transmission assembly

Installation Notes and Tips

When installing the Elring 322.415 main shaft seal, ensure the transmission housing and shaft are clean and free of debris. Proper alignment during installation is critical to avoid seal damage. Use appropriate tools to press the seal evenly into place without distortion. Verify that the seal’s orientation matches the original part, noting that this seal does not have a dust lip. Consult the vehicle’s service manual for torque specifications and detailed installation procedures.

Quality Assurance and Warranty Information

Elring manufactures this manual transmission main shaft seal to meet OEM quality standards, ensuring reliable performance and durability. The use of nitrile butadiene rubber material provides resistance to common automotive fluids and temperature variations. While specific warranty details are not provided, Elring products typically adhere to industry quality controls and are suitable for professional repair and maintenance applications.
