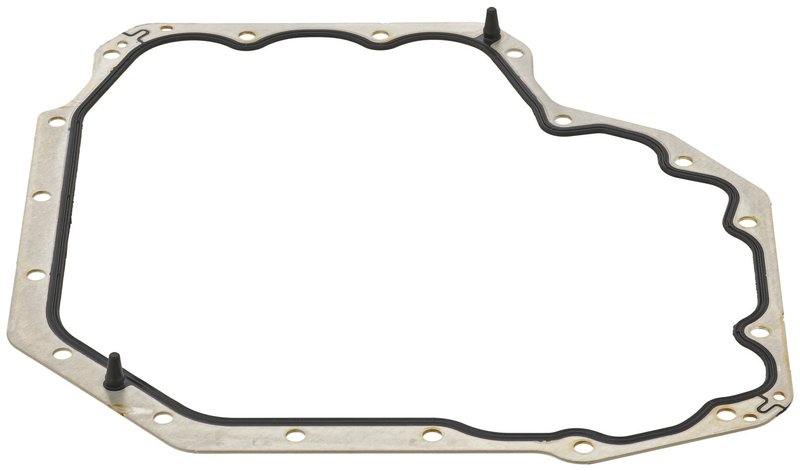

Elring 328.572 Engine Oil Pan Gasket - Lower

Elring 328.572 Engine Oil Pan Gasket

Elring 328.572 is an engine oil pan gasket for lower oil pan sealing on select GM trucks and vans. With 17 mounting bores, it is built to match the bolt pattern needed for a secure seal on the oil pan flange.

Key Features

• Engine oil pan gasket for lower oil pan applications
• 17 mounting bores for the specified bolt pattern
• Direct-fit sealing component for routine engine service
• Elring part number 328.572 for catalog and interchange lookup
• Fits 2016-2019 Chevrolet Colorado, lower
• Fits 2016-2019 GMC Canyon, lower
• Fits 2017-2019 GMC Savana 2500, lower
• Fits 2017-2019 GMC Savana 3500, lower
• Fits 2017-2018 Chevrolet Express 2500, lower
• Fits 2017-2018 Chevrolet Express 3500, lower

Detailed Description

This Elring oil pan gasket is specified for lower oil pan sealing on 2016-2019 Chevrolet Colorado and GMC Canyon models, plus 2017-2019 GMC Savana 2500 and Savana 3500, and 2017-2018 Chevrolet Express 2500 and Express 3500. The 17-bore design supports proper alignment at the pan-to-block interface, helping maintain a consistent seal during oil pan service. Part number 328.572 is also useful when matching OE and aftermarket references during repair planning.

This part cross-references 12629737 and 68027587AA for the same application.

What It Is Used For

• Replacing a leaking lower engine oil pan gasket
• Restoring the seal after oil pan removal during engine service
• Addressing oil seepage at the pan flange
• Supporting maintenance on Chevrolet Colorado and GMC Canyon oil pan repairs
• Supporting service work on Chevrolet Express and GMC Savana lower oil pan applications

Installation Notes and Tips

Clean the mating surfaces thoroughly before installation and inspect the oil pan flange for distortion, corrosion, or old sealant residue. Confirm the 17 mounting bores align with the pan and block before tightening fasteners in the proper sequence and to the vehicle manufacturer’s torque specification. Verify the lower-position application before ordering and compare the removed gasket to Elring 328.572 when confirming fitment.

Quality Assurance

Elring is an established sealing-system manufacturer with OE-level application coverage in engine gasket service. Use the part number 328.572 and the vehicle fitment details above to confirm the correct lower oil pan gasket for your repair.
