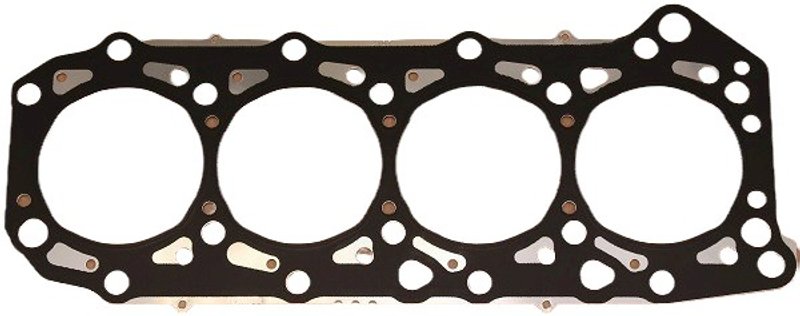

Elring 330.770 Engine Cylinder Head Gasket

Elring 330.770 MLS Cylinder Head Gasket

Elring 330.770 is a multilayer steel cylinder head gasket built for precise sealing in engine rebuild and repair work. With a 97 mm diameter and 0.65 mm installed thickness, it is specified for applications that require consistent head-to-block sealing and accurate compression control.

Key Features

• Multilayer steel (MLS) gasket design for durable sealing performance
• 97 mm diameter for the specified engine bore application
• 0.65 mm thickness and 0.65 mm installed thickness
• 3-hole configuration for application-specific thickness identification
• Elring part number 330.770 for ordering and cross-reference matching

Detailed Description

This Elring cylinder head gasket is engineered as a direct sealing component for engine service where the head gasket must maintain combustion pressure, coolant separation, and oil control. The MLS construction uses layered steel to support a stable seal under heat cycling and clamping load. For buyers searching for an Elring 330.770 head gasket, or an MLS cylinder head gasket for engine rebuild work, this part provides the core dimensions needed for correct selection. It is also a relevant match for technicians sourcing Elring 330.770 for Honda Civic and Acura Integra engine service where the listed dimensions align with the application.

This part cross-references 11044-MA70C and 10181120 for the same application.

What It Helps Address

• Coolant leakage between the cylinder head and engine block
• Compression loss from a failed head gasket seal
• Oil seepage at the head-to-block interface
• Overheating caused by combustion gas leakage into the cooling system
• Repeat repair issues after improper gasket thickness selection

Installation Notes and Tips

Confirm bore diameter, gasket thickness, and hole count before installation. Clean the cylinder head and block mating surfaces thoroughly, and inspect both for warpage or damage before assembly. Follow the engine manufacturer’s torque sequence and torque-angle procedure, and replace any fasteners required by the service manual. For Honda Civic and Acura Integra applications, verify the engine code and gasket specification against the original part before final assembly.

Quality Assurance

Elring is known for engine sealing components used in professional repair and rebuild environments. Part number 330.770 is manufactured to the listed MLS construction and dimensional specifications for accurate fitment selection.
