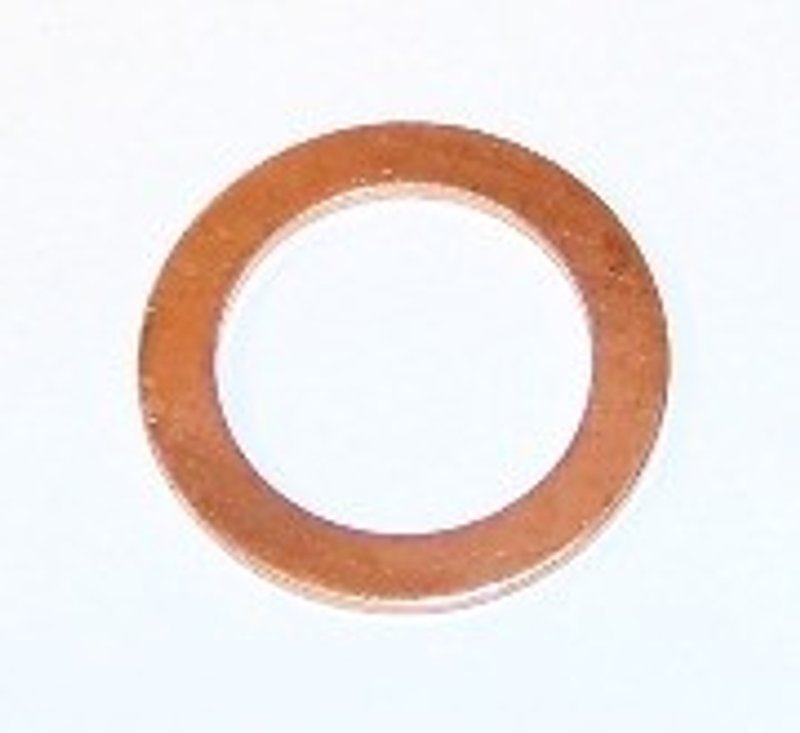

Elring 339.580 Engine Oil Drain Plug Gasket

Elring 339.580 Copper Drain Plug Gasket

Elring 339.580 is a copper engine oil drain plug gasket made for a secure sealing surface at the oil pan drain plug. Its 18.0 mm inside diameter, 26.0 mm outside diameter, and 1.5 mm thickness provide the dimensions needed for a proper drain plug seal on supported applications.

Key Features

• Copper construction for a reliable sealing interface
• 18.0 mm inside diameter for drain plug fitment
• 26.0 mm outside diameter for broad contact area
• 1.5 mm thickness for consistent crush and sealing
• A-shape profile for application-specific sealing geometry
• Elring 339.580 for engine oil drain plug service

Detailed Description

This Elring drain plug gasket is used in engine oil service where a copper sealing washer is required to help maintain a tight seal at the drain plug. The A-shape design, combined with the listed dimensions, supports correct seating during oil changes and drain plug reinstallation. This part cross-references Gates 31118 for the same application. It is a direct service part for select Jeep Compass and Suzuki SX4 applications, and Elring 339.580 should be matched to the drain plug dimensions specified for the vehicle.

Vehicle Fitment

• Fits 2016-2017 Jeep Compass, N/A
• Fits 2009 Suzuki SX4, N/A

Common Service Issues

• Oil seepage at the drain plug after service
• Damaged or flattened sealing washer during oil changes
• Poor drain plug sealing from incorrect washer dimensions
• Recurring drips from the oil pan drain point

Installation Notes

Replace the drain plug gasket whenever the oil is drained and the plug is removed. Clean the drain plug and sealing surface before installation, and verify the gasket dimensions against the original part. For Jeep Compass and Suzuki SX4 service, confirm the drain plug style and sealing surface before reassembly. Elring 339.580 is also referenced by part number 339.580 for catalog lookup and service matching.

Quality Assurance

Elring is a recognized sealing-system manufacturer, and this copper drain plug gasket is built to support proper oil pan sealing in the listed applications. Use the confirmed fitment data for 2016-2017 Jeep Compass and 2009 Suzuki SX4 when selecting this part.
