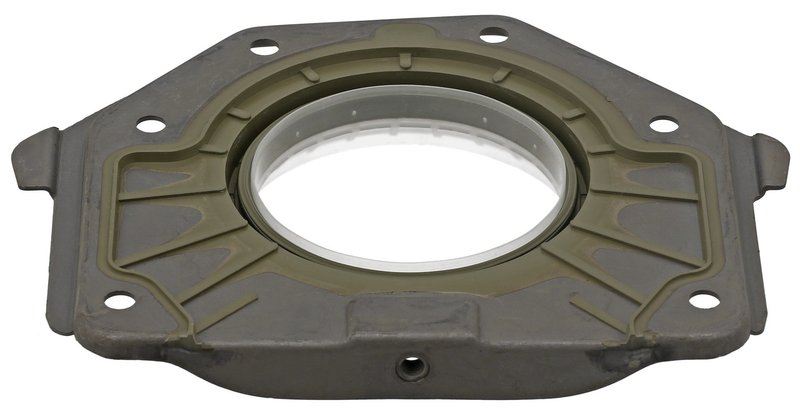

Elring 375.320 Engine Crankshaft Seal - Rear

Elring 375.320 Crankshaft Seal Overview

The Elring 375.320 engine crankshaft seal is a housing-style radial shaft seal built for precise crankshaft sealing in select Fiat, Dodge, Jeep, and Ram applications. It uses FPM (fluoride rubber) for sealing performance and includes a mounting sleeve for controlled installation.

Key Features

• Engine crankshaft seal with housing for a secure OE-style fit
• FPM (fluoride rubber) sealing material for durability in engine environments
• Radial shaft seal design: SP
• Inside diameter: 74.0 mm
• Thickness: 17.0 mm
• Outer diameter 1: 141 mm; outer diameter 2: 187.5 mm
• Includes mounting sleeve
• Swirl type: LD

Detailed Description

Elring 375.320 is a crankshaft seal assembly engineered for engines that require a housing-mounted seal with a 74.0 mm inside diameter and 17.0 mm thickness. The FPM sealing element is selected for demanding engine conditions, while the SP radial shaft seal design and included mounting sleeve support accurate placement during service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible With select Fiat 500, Fiat 500L, Fiat 124 Spider, Fiat 500X, Dodge Dart, Dodge Neon, Jeep Renegade, and Ram ProMaster Rapid applications. The Elring 375.320 part number is also referenced in OE-style replacement searches for these vehicles, including Fiat 500 and Dodge Dart crankshaft seal service.

Vehicle Fitment

• Fits 2020 Dodge Neon, N/A. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.
• Fits 2017-2018 Dodge Neon, N/A. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.
• Fits 2017-2020 Fiat 124 Spider, N/A. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.
• Fits 2014-2020 Fiat 500L, N/A. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.
• Fits 2009-2019 Fiat 500, N/A. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.
• Fits 2017-2018 Fiat 500X, N/A. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.
• Fits 2015-2018 Jeep Renegade, N/A. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.
• Fits 2017 Ram ProMaster Rapid, N/A.
• Fits 2013-2016 Dodge Dart, N/A. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.
• Fits 2016 Fiat 500X, Rear. Notes: Thickness 17 mm; Inner Diameter 74 mm; Outer Diameter 141 mm; Swirl Type Left-hand Twist.

Common Issues This Seal Addresses

• Engine oil leakage at the crankshaft sealing area
• Oil seepage around the rear or housing-mounted seal location
• Seal wear from heat, age, and crankshaft rotation
• Contamination entering the crankshaft seal interface
• Repeat service caused by incorrect seal dimensions or profile

Installation Notes and Tips

Verify the seal dimensions, housing style, and swirl direction before installation. Use the included mounting sleeve to protect the sealing lip during assembly, and confirm the crankshaft and housing surfaces are clean, smooth, and free of damage. For best results, match the application exactly to the listed vehicle, year, and position, especially on Fiat 500, Fiat 500L, and Dodge Dart service jobs.

Quality Assurance

Elring is known for engine sealing components used in professional repair environments. Part number 375.320 is built to the listed specifications for direct replacement service on confirmed applications.
