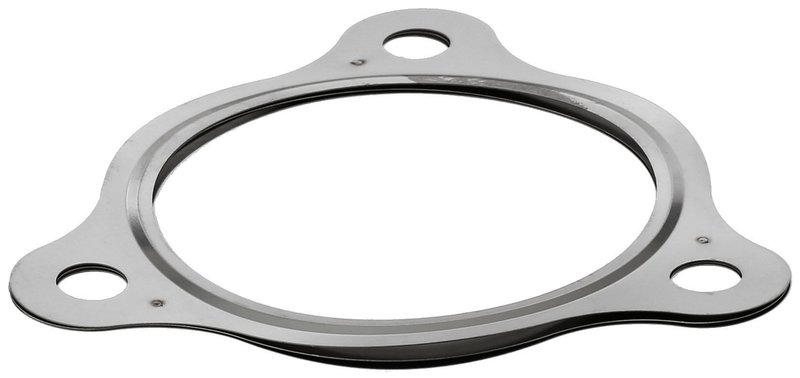

Elring 423.010 Exhaust Pipe Flange Gasket
| Brand | Elring 423.010 |
|---|---|
| Inner Diameter [Mm] | 62 |
| Number Of Mounting Bores | 3 |
| Fits | Volkswagen and Audi · 23 vehicles |
Exhaust pipe flange gasket. Seals the joint for a secure exhaust connection.
Three-bore design. Provides a precise mounting pattern for installation.
Cross-references 4D0 253 115 A, 00617900 and 01112600 for the same application. See all 3.
Elring Exhaust Pipe Flange Gasket 423.010
Elring 423.010 is an exhaust pipe flange gasket with a 62 mm inner diameter and a 3-bore mounting pattern. It is used at the exhaust turbocharger connection on select Audi and Volkswagen models, helping maintain a secure seal where exhaust components join.
Key Features
- Inner diameter: 62 mm
- 3 mounting bores for flange alignment
- Exhaust pipe flange gasket for turbocharger-side exhaust connections
- OE-style sealing solution from Elring
- Cross-references OE-style part numbers 4D0 253 115 A and 00617900 for the same application
Fitment Details
- Fits 2013-2018 Volkswagen Touareg, N/A
- Fits 2009 Volkswagen Touareg, N/A
- Fits 2010-2012 Volkswagen Touareg, N/A; Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger
- Fits 2009-2012 Audi Q7, N/A
- Fits 2007-2011 Audi S6, N/A; Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger
- Fits 2007-2010 Audi S8, N/A; Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger
What It Helps Address
- Exhaust leaks at the turbocharger outlet
- Noise from a failing flange seal
- Soot or residue around the exhaust joint
- Loss of sealing integrity after exhaust service
- Fitment issues on 62 mm turbo-side flange connections
Installation Notes
Verify the flange diameter and mounting-bore pattern before installation. Clean both mating surfaces thoroughly so the gasket seats evenly, and confirm the exhaust pipe at the turbocharger aligns correctly on Audi S6, Audi S8, Audi Q7, and Volkswagen Touareg applications.
Quality Assurance
Elring is a recognized sealing-system manufacturer with OE-focused engineering for exhaust applications. Part number 423.010 is built for direct-fit use on the listed Audi and Volkswagen vehicles.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2018 | Volkswagen | Touareg | Wolfsburg | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2017 | Volkswagen | Touareg | Hybrid | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2016 | Volkswagen | Touareg | Comfortline | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2015 | Volkswagen | Touareg | Comfortline TDI | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2014 | Volkswagen | Touareg | Base | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2013 | Volkswagen | Touareg | Execline TDI | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2012 | Audi | Q7 | Elite | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2012 | Volkswagen | Touareg | — | — | — | 3.0L | V6 | — | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2011 | Audi | Q7 | TDI | Sport Utility | AWD | 3.0L | V6 | — | N/A | — |
| 2011 | Audi | S6 | — | — | AWD | 5.2L | V10 | GAS | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2011 | Volkswagen | Touareg | — | — | — | 3.0L | V6 | — | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2010 | Audi | Q7 | — | — | — | 3.0L | V6 | DIESEL | N/A | — |
| 2010 | Audi | S6 | — | — | AWD | 5.2L | V10 | GAS | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2010 | Audi | S8 | — | — | — | 5.2L | V10 | — | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2010 | Volkswagen | Touareg | — | — | — | 3.0L | V6 | — | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2009 | Audi | Q7 | — | — | — | 3.0L | V6 | DIESEL | N/A | — |
| 2009 | Audi | S6 | — | — | AWD | 5.2L | V10 | GAS | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2009 | Audi | S8 | — | — | AWD | 5.2L | V10 | GAS | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2009 | Volkswagen | Touareg | — | — | — | 3.0L | V6 | DIESEL | N/A | — |
| 2008 | Audi | S6 | — | — | AWD | 5.2L | V10 | GAS | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2008 | Audi | S8 | — | — | AWD | 5.2L | V10 | GAS | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2007 | Audi | S6 | — | — | AWD | 5.2L | V10 | GAS | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
| 2007 | Audi | S8 | — | — | AWD | 5.2L | V10 | GAS | N/A | Inner Diameter: 62mm; Exhaust Pipe at exhaust turbocharger |
