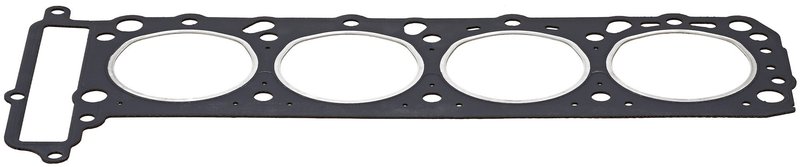

Elring 425.070 Engine Cylinder Head Gasket - Left

Elring 425.070 Cylinder Head Gasket

Elring 425.070 is a fibre composite engine cylinder head gasket with a 93.2 mm diameter for specific Mercedes-Benz V8 applications. It is built for left-side cylinder head service on select S420, E420, 400E, 400SEL, and 400SE models.

Key Features

• Part number: 425.070
• Engine cylinder head gasket for the Engine > Gaskets and Sealing Systems category
• Fibre composite gasket design
• 93.2 mm diameter
• Fits select Mercedes-Benz left-side cylinder head applications
• Cross-references Victor Reinz 61-29185-00 and Edelmann 80070 for the same application

Detailed Description

This Elring 425.070 cylinder head gasket is specified for Mercedes-Benz engines that require a 93.2 mm fibre composite sealing surface. It fits 1994-1998 Mercedes-Benz S420, Left; 1997 Mercedes-Benz E420, Left; 1994-1995 Mercedes-Benz E420, Left; 1992-1993 Mercedes-Benz 400E, Left; 1993 Mercedes-Benz 400SEL, Left; and 1992 Mercedes-Benz 400SE, Left. For 1999 Mercedes-Benz S420, it applies to engine numbers from 017486 and specific engine number ranges noted in the fitment data.

Use Elring 425.070 when replacing a worn or failed head gasket on these Mercedes-Benz S420 and E420 applications. The fibre composite construction and 93.2 mm bore size support proper sealing at the cylinder head interface.

What This Part Helps Address

• Coolant loss from a compromised cylinder head seal
• Compression leakage between the cylinder head and engine block
• Oil seepage at the head gasket interface
• Combustion sealing issues caused by gasket deterioration
• Repair needs during cylinder head service on Mercedes-Benz V8 engines

Installation Notes and Tips

Confirm engine number and side before ordering, especially for the 1999 Mercedes-Benz S420 application. Match the 93.2 mm diameter and verify the gasket orientation against the engine specification. Clean the mating surfaces thoroughly and inspect the cylinder head and block for warpage before installation.

Quality Assurance

Elring is a recognized sealing-system manufacturer, and this gasket is built to OE-style dimensional requirements for the listed Mercedes-Benz applications. Verify all fitment details against the vehicle and engine number before installation.
