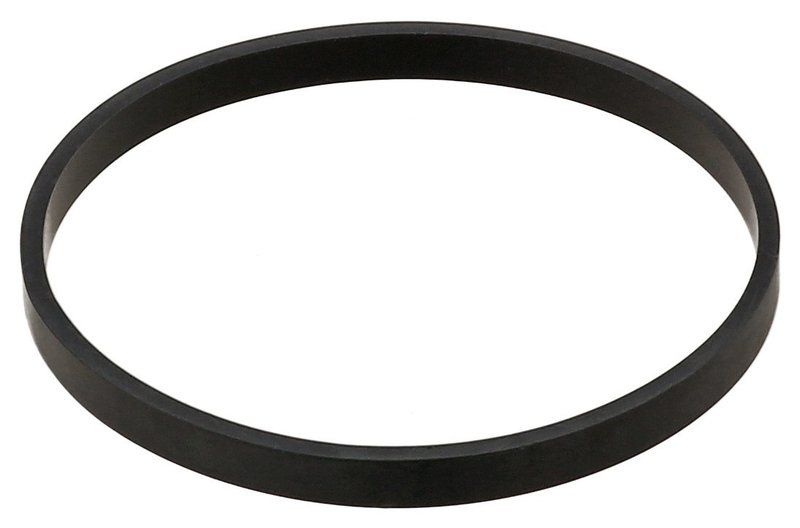

Elring 435.870 Fuel Injection Throttle Body Mounting Gasket

Fuel Injection Throttle Body Gasket for Jeep and Ram

Elring 435.870 is a fuel injection throttle body mounting gasket for the throttle valve to intake manifold connection. It is built from ACM (polyacrylate) and measures 66.4 mm outer diameter with a 5.1 mm thickness for a precise sealing interface. This gasket is used on select Jeep Wrangler, Jeep Grand Cherokee, Ram 1500, and Ram 1500 Classic applications.

Key Features

• Part number: Elring 435.870
• Fitting position: throttle valve to intake manifold
• Material: ACM (polyacrylate)
• Outer diameter: 66.4 mm
• Thickness: 5.1 mm
• Direct-fit sealing component for fuel injection throttle body service

Detailed Description

Elring 435.870 is a throttle body mounting gasket engineered for the intake sealing point between the throttle valve and intake manifold. The ACM (polyacrylate) construction is selected for fuel system sealing applications where dimensional stability and resistance to engine bay conditions matter. If you are replacing a worn throttle body gasket on a Jeep Wrangler, Jeep Grand Cherokee, Ram 1500, or Ram 1500 Classic, this part number provides the specified sealing dimensions for the application. This part cross-references Mopar 68148127AA for the same application.

Vehicle Fitment

• Fits 2020-2023 Jeep Wrangler, N/A
• Fits 2014-2021 Jeep Grand Cherokee, N/A
• Fits 2014-2018 Ram 1500, N/A
• Fits 2019 Ram 1500 Classic, N/A
• Fits 2020-2023 Ram 1500, N/A

Common Replacement Reasons

• Throttle body gasket leak at the intake manifold
• Idle instability caused by sealing loss at the throttle valve
• Air leakage around the throttle body mounting surface
• Fuel system service requiring a new throttle body seal
• Reassembly after intake or throttle body removal

Installation Notes and Tips

Install 435.870 on a clean, flat throttle body and intake manifold sealing surface. Verify the gasket seats evenly around the throttle valve to intake manifold interface before tightening fasteners to the vehicle manufacturer’s specification. For Jeep Wrangler and Ram 1500 service, confirm the old gasket is fully removed and the mating surfaces are free of residue before assembly.

Quality Assurance

Elring manufactures sealing components for automotive fuel system applications, including gaskets, O-rings, and pump seals. Elring 435.870 is specified with defined material and dimensional data to support accurate replacement selection for the listed Jeep and Ram vehicles.
