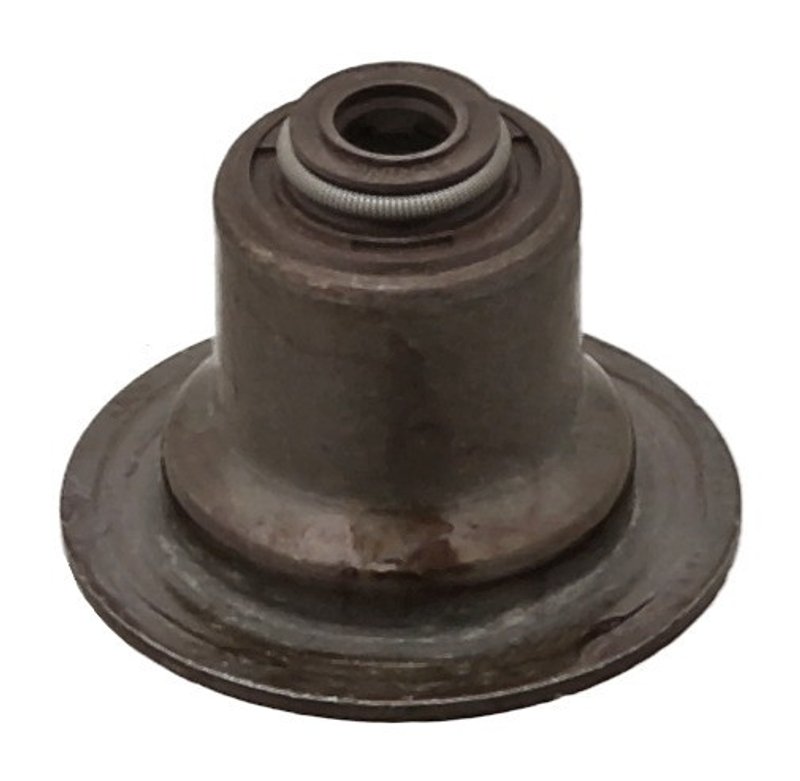

Elring 440.140 Engine Valve Stem Oil Seal

Elring 440.140 Valve Stem Oil Seal

Elring 440.140 is an engine valve stem oil seal made from FPM (fluoride rubber) for heat and oil resistance in demanding valvetrain service. With an 11.0 mm inside diameter, 27.0 mm outside diameter, and 19.4 mm thickness, it is specified for 6 mm valve stem diameter applications across select Hyundai and Kia engines.

Key Features

• Engine valve stem oil seal for valvetrain oil control
• FPM (fluoride rubber) construction for high-temperature sealing performance
• 11.0 mm inside diameter, 27.0 mm outside diameter, 19.4 mm thickness
• Designed for 6 mm valve stem diameter applications
• Elring part number 440.140 for direct catalog identification

Fitment Details

• Fits 2011-2020 Kia Sorento, N/A
• Fits 2014-2019 Kia Cadenza, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2003-2018 Hyundai Santa Fe, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2014-2018 Kia Sedona, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2007-2012 Kia Sedona, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2002-2005 Kia Sedona, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2006-2017 Hyundai Azera, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2015-2016 Hyundai Genesis, N/A
• Fits 2009-2014 Hyundai Genesis, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2013 Hyundai Santa Fe XL, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2011-2012 Hyundai Veracruz, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2009-2011 Kia Borrego, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2009-2010 Hyundai Sonata, N/A
• Fits 2004-2009 Kia Amanti, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2003-2009 Kia Sorento, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2007-2008 Hyundai Entourage, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2006-2008 Hyundai Sonata, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm
• Fits 2002-2005 Hyundai XG350, N/A. Notes: Height 19.4 mm; Inner Diameter 11 mm; Outer Diameter 27 mm

What It Helps Address

• Oil entering the combustion chamber through worn valve guides
• Blue exhaust smoke caused by valve stem seal wear
• Oil consumption from deteriorated valvetrain sealing
• Fouled spark plugs related to oil leakage past the valve stem
• Loss of proper top-end sealing during cylinder head service

Installation Notes

Verify valve stem diameter, seal height, and outer diameter before installation. Elring 440.140 is specified for 6 mm valve stems and should be installed during cylinder head repair or valve service using proper seal installation tools to avoid damage to the seal lip.

Quality Assurance

Elring is a recognized engine sealing brand, and this valve stem oil seal is built to the listed dimensional specifications for accurate service replacement. This part cross-references part numbers such as 70-10690-00 and 22224-3C100 for the same application.
