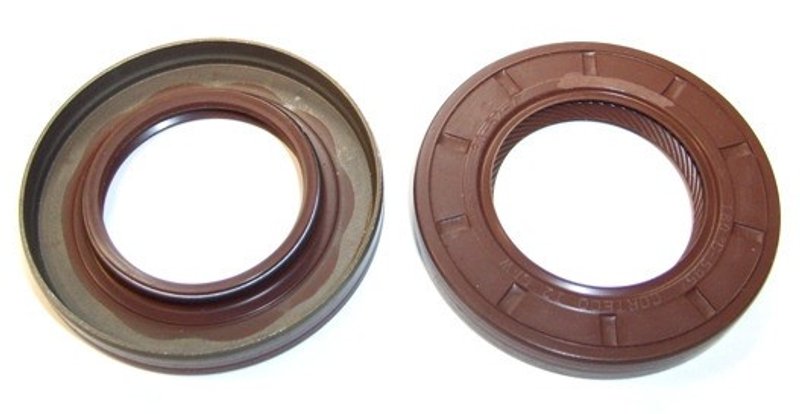

Elring 440.750 Engine Camshaft Seal
| Brand | Elring 440.750 |
|---|---|
| Dust Cover | With dust lip |
| Height [Mm] | 7 |
| Inner Diameter [Mm] | 30 |
| Material | Fpm (fluoride rubber) |
| Outer Diameter [Mm] | 52 |
| Radial Shaft Seal Design | Aw/bs |
| Swirl Type | Rd |
| Fits | —9 vehicles |
Dust lip included. Helps keep contaminants out and protect the seal surface.
FPM rubber construction. Fluoride rubber offers strong resistance to heat and fluids.
Radial shaft seal design. Built for reliable sealing in engine applications.
Cross-references Four Seasons 76060, 60 801 282 and 81-35883-00 for the same application. See all 14.
Elring Camshaft Seal 440.750
Elring 440.750 is an engine camshaft seal built for precise shaft sealing in the valvetrain area. It uses FPM (fluoride rubber) for oil resistance and heat stability, along with a dust lip to help keep contaminants away from the sealing edge.
Key Features
- Engine camshaft seal for sealing the camshaft at the engine housing
- FPM (fluoride rubber) construction for demanding engine environments
- Dust lip helps reduce dirt intrusion at the seal surface
- Radial shaft seal design: AW/BS
- Dimensions: 30 mm inner diameter, 52 mm outer diameter, 7 mm height
- Swirl type RD
Detailed Description
This Elring camshaft seal, part number 440.750, is specified for applications that require a compact radial shaft seal with accurate dimensions and durable sealing material. The 30 mm inner diameter and 52 mm outer diameter support a controlled fit, while the 7 mm height helps maintain proper installation depth in the camshaft bore. Elring 440.750 is a practical choice for engine service where oil control around the camshaft is critical. This part cross-references Four Seasons 76060 for the same application.
What It Helps Address
- Oil seepage around the camshaft seal area
- Contamination entering the seal interface
- Loss of sealing performance from worn rubber
- Engine oil residue near the timing or camshaft housing
Installation Notes and Tips
Confirm the seal dimensions, shaft diameter, and seal profile before installation. Inspect the camshaft sealing surface for wear, scoring, or corrosion, since surface damage can shorten seal life. Clean the bore thoroughly and install the seal squarely to avoid distortion. For vehicle-specific service, verify the application against the exact engine code for Honda Civic or Toyota Corolla listings where this seal is used.
Quality Assurance
Elring is known for engine sealing components used in professional repair environments. Part number 440.750 is manufactured to support accurate fit and dependable sealing performance in the intended engine application.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|---|
| 2005 | Fiat | Palio | Adventure | Hatchback | FWD | 1.6L | L4 | — |
| 2004 | Fiat | Palio | Adventure | Hatchback | FWD | 1.6L | L4 | — |
| 1983 | Fiat | X-1/9 | — | — | — | 1.5L | L4 | Width: 7mm; Inner Diameter: 30mm; Outer Diameter: 52mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist |
| 1982 | Fiat | X-1/9 | — | — | — | 1.5L | L4 | Width: 7mm; Inner Diameter: 30mm; Outer Diameter: 52mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist |
| 1981 | Fiat | X-1/9 | — | — | — | 1.5L | L4 | Width: 7mm; Inner Diameter: 30mm; Outer Diameter: 52mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist |
| 1981 | Lancia | Beta | — | — | — | 2.0L | L4 | Width: 7mm; Inner Diameter: 30mm; Outer Diameter: 52mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist |
| 1980 | Fiat | X-1/9 | — | — | — | 1.5L | L4 | Width: 7mm; Inner Diameter: 30mm; Outer Diameter: 52mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist |
| 1979 | Fiat | X-1/9 | — | — | — | 1.5L | L4 | Width: 7mm; Inner Diameter: 30mm; Outer Diameter: 52mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist |
| 1979 | Lancia | Beta | — | — | — | 2.0L | L4 | Width: 7mm; Inner Diameter: 30mm; Outer Diameter: 52mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist |
