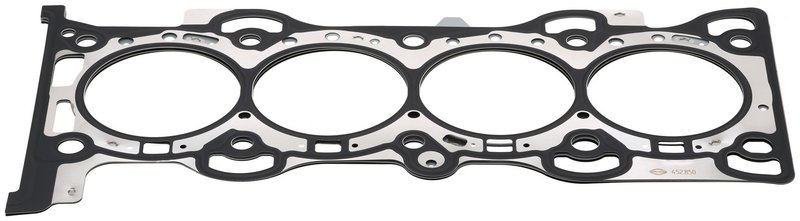

Elring 452.850 Engine Cylinder Head Gasket

Engine Cylinder Head Gasket Overview

Elring 452.850 is an engine cylinder head gasket built with multilayer steel construction and a 0.93 mm installed thickness. It is specified for 89 mm applications and is listed across Land Rover, Jaguar, Ford, and Volvo fitments.

Key Features

• Multilayer steel (MLS) gasket design for controlled sealing performance.
• 0.93 mm thickness and 0.93 mm installed thickness for accurate stack-up.
• 89 mm diameter specification for matched engine applications.
• Fits a broad range of gasoline engine applications across multiple makes.
• Elring part number 452.850 for catalog and service reference.

Detailed Fitment and Application

This cylinder head gasket is used to seal the joint between the engine block and cylinder head, helping maintain compression and separate combustion pressure from coolant and oil passages. Fits 2020-2021 Land Rover Range Rover Sport, N/A; Fits 2015-2019 Land Rover Discovery Sport, N/A; Fits 2012-2019 Land Rover Range Rover Evoque, N/A; Fits 2016 Jaguar XE, N/A; Fits 2013-2016 Jaguar XF, N/A; Fits 2013-2015 Land Rover LR2, N/A; Fits 2010-2014 Ford Focus, N/A; Fits 2012-2014 Volvo S60, N/A; Fits 2013-2014 Volvo V60, N/A; Fits 2012-2014 Volvo XC60, N/A; Fits 2012-2013 Volvo S80, N/A. This part cross-references Land Rover/Jaguar OE numbers (e.g., LR024975, JDE28243) for the same application. Elring 452.850 is a direct catalog reference when matching engine code, bore size, and gasket thickness requirements.

What It Is Used For

• Replacing a failed head gasket that can cause compression loss.
• Addressing coolant and oil mixing caused by sealing failure.
• Restoring cylinder sealing after engine teardown or head service.
• Matching the correct 89 mm bore and 0.93 mm thickness specification.

Installation Notes and Quality Assurance

Verify engine code, bore diameter, and thickness specification before installation. Clean and inspect the cylinder head and block mating surfaces, and confirm the application matches the listed fitment for your Land Rover Range Rover Sport, Discovery Sport, or Jaguar XF service job. Elring is a sealing-system manufacturer known for OE-level engine gasket applications, and part number 452.850 is built to the listed MLS and dimensional specifications.
