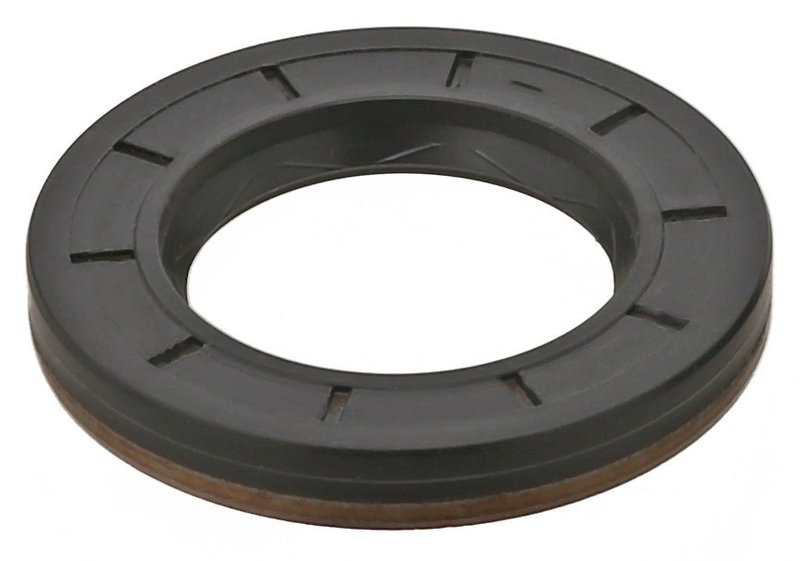

Elring 469.120 Transfer Case Input Shaft Seal

Overview of Elring Transfer Case Input Shaft Seal 469.120

The Elring Transfer Case Input Shaft Seal 469.120 is engineered for precise fitment in select Audi and Volkswagen models. Designed to maintain optimal sealing performance, this component helps protect your transfer case from contaminants and fluid leaks.

• Inside diameter: 31.0 mm
• Outside diameter: 52.0 mm
• Height: 8 mm
• Material: ACM (polyacrylate) for durability and resistance
• Radial shaft seal design: AW
• Swirl type: WD
• Dust cover: Without dust lip

Technical Details and Material Specifications

This transfer case input shaft seal features an ACM (polyacrylate) elastomer, known for its resistance to heat, oil, and aging, making it suitable for demanding automotive environments. The radial shaft seal design AW ensures effective sealing around the rotating shaft, while the WD swirl type enhances fluid retention and reduces leakage. With an inside diameter of 31.0 mm and an outside diameter of 52.0 mm, the seal fits precisely to maintain transfer case integrity. The 8 mm height dimension supports proper installation depth without interference.

Compatible Vehicles and Applications

This Elring part number 469.120 is compatible with various Audi and Volkswagen models, including the Audi RS Q3, Volkswagen Tiguan, Tiguan Limited, TT Quattro, and TT RS Quattro. It is specifically designed for the transfer case input shaft, ensuring reliable sealing performance in these all-wheel-drive systems.

• Prevents transfer case fluid leaks
• Protects against dirt and debris ingress
• Maintains transfer case pressure and lubrication
• Reduces wear on input shaft components
• Helps avoid costly transfer case repairs

Installation Notes and Tips

When installing the Elring 469.120 transfer case input shaft seal, ensure the shaft and housing surfaces are clean and free of debris. Use appropriate tools to press the seal evenly into place without distortion. Avoid damaging the sealing lip during installation. Verify the seal orientation matches the dust cover specification (without dust lip) to ensure proper function.

Quality Assurance and Warranty

Elring transfer case seals are manufactured to meet OEM standards for fit and function. The use of ACM material provides long-lasting resistance to heat and oil exposure. While specific warranty terms may vary, Elring products typically come with a limited warranty against manufacturing defects, supporting reliability in your Audi or Volkswagen transfer case maintenance.
