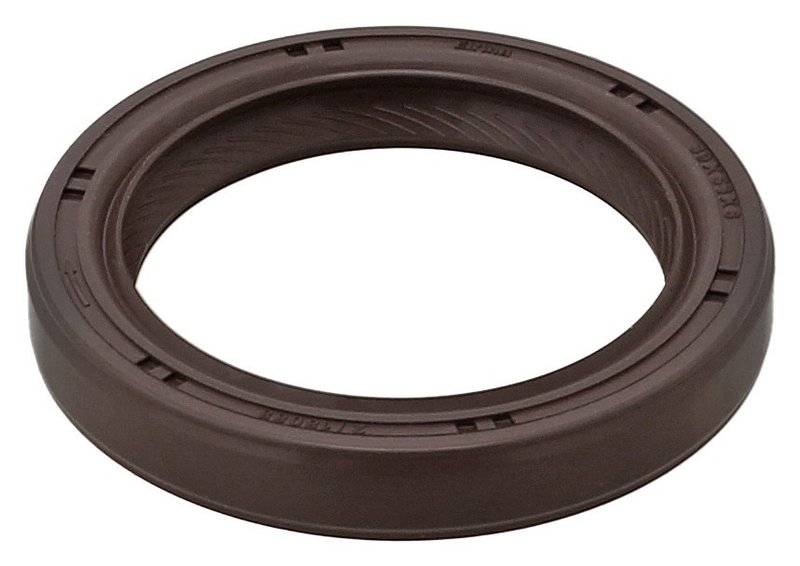

Elring 489.890 Engine Camshaft Seal

Elring Camshaft Seal for Honda and Acura

Elring 489.890 is an engine camshaft seal built for front-side applications on a wide range of Honda and Acura vehicles. It uses FPM (fluoride rubber) for sealing performance and includes a dust lip to help keep contaminants away from the sealing edge.

• Engine camshaft seal for front-side applications
• FPM (fluoride rubber) construction for oil-sealing durability
• Dust lip helps reduce dirt intrusion at the shaft seal
• Radial shaft seal design: AS
• Dimensions: 39 mm inner diameter, 53 mm outer diameter, 8 mm height
• Swirl type: RD

Detailed Product Information

This Elring camshaft seal is a direct-fit sealing component for engines that require a 39 mm inner diameter and 53 mm outer diameter seal profile. The AS radial shaft seal design and FPM material are suited for maintaining a tight seal around the camshaft area, where heat, oil exposure, and continuous rotation place constant demand on the part. Part number 489.890 is also referenced by cross numbers such as Bosch 67617 and National 710451 for the same application.

Compatible vehicle coverage includes many Honda Odyssey, Honda Pilot, Honda Ridgeline, Honda Accord, Acura MDX, Acura TL, Acura TLX, Acura RDX, and Acura RLX applications. This part number 489.890 is used across multiple model years, including 1997 through 2024, depending on the vehicle and engine configuration.

What This Seal Helps Address

• Oil seepage at the camshaft seal area
• Contamination entering the front side of the engine seal surface
• Seal wear caused by heat and rotating shaft contact
• Loss of sealing integrity during camshaft service
• Leak-related maintenance on Honda and Acura V6 engine applications

Installation Notes and Tips

Verify shaft diameter, seal dimensions, and engine application before installation. Clean the sealing bore and camshaft surface thoroughly, and inspect for scoring or wear that could affect sealing performance. Proper alignment during installation is important to avoid damaging the dust lip or sealing edge. Confirm front-side placement for the listed applications before final assembly.

Quality Assurance

Elring is a recognized engine sealing brand, and this camshaft seal is manufactured to match the listed dimensional and material specifications for the confirmed applications. Part number 489.890 is specified for multiple Honda and Acura models, including Honda Odyssey, Honda Pilot, and Acura MDX coverage.
