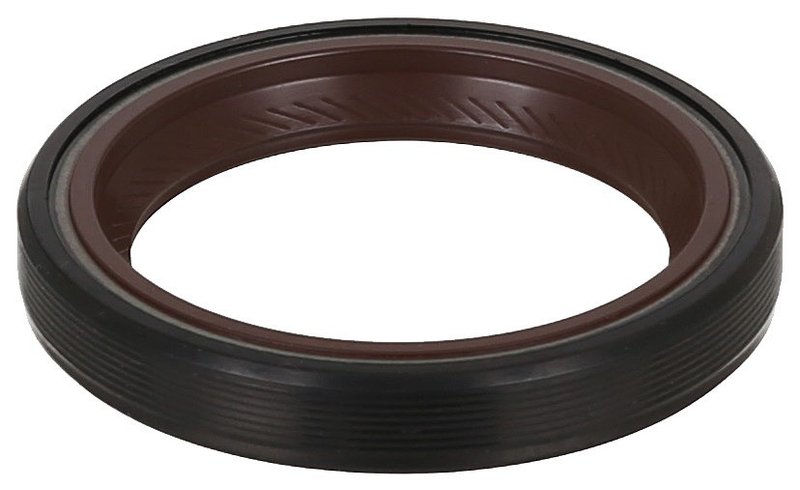

Elring 504.483 Engine Crankshaft Seal - Front

Elring 504.483 Crankshaft Seal Overview

The Elring 504.483 engine crankshaft seal is built for precise sealing at the crankshaft to help control oil leakage at the engine timing end or front position, depending on application. It uses FPM (fluoride rubber) and ACM (polyacrylate rubber) materials for sealing performance in demanding engine environments.

With a 35.0 mm inside diameter, 47.0 mm outside diameter, and 7.0 mm thickness, this radial shaft seal is specified with an AW design and RD swirl type. It is listed for select Nissan Platina, Jeep Cherokee, and Jeep Comanche applications, including 2002-2006 Nissan Platina timing end and front positions.

Key Features

• Engine crankshaft seal for sealing the crankshaft area
• Elring part number 504.483
• FPM (fluoride rubber) and ACM (polyacrylate rubber) construction
• 35.0 mm inside diameter, 47.0 mm outside diameter, 7.0 mm thickness
• Radial shaft seal design: AW
• Swirl type: RD
• Without dust lip
• Fits select Nissan Platina, Jeep Cherokee, and Jeep Comanche applications

Detailed Description

Elring 504.483 is an engine crankshaft seal engineered to maintain a tight seal around the crankshaft and reduce oil escape at the sealing point. The seal’s FPM and ACM material blend is selected for engine use, while the AW radial shaft seal design and RD swirl type support the specified rotational direction and sealing geometry. This part number is referenced for multiple OE-style applications, including Nissan Platina models from 2002-2010 and Jeep Cherokee and Jeep Comanche models from the mid-1980s.

This part cross-references National 1172 for the same application. Elring 504.483 is also associated with Nissan Platina timing end service where the listed fitment calls for a 7 mm width, 35 mm inner diameter, and 47 mm outer diameter.

Vehicle Fitment

• Fits 2007-2010 Nissan Platina, N/A
• Fits 2002-2006 Nissan Platina, N/A
• Fits 2002-2006 Nissan Platina, Front
• Fits 1985-1987 Jeep Cherokee, N/A
• Fits 1986-1987 Jeep Comanche, N/A

Common Issues This Seal May Address

• Engine oil leaking from the crankshaft sealing area
• Oil seepage at the timing end or front crankshaft location
• Seal wear from age, heat, and crankshaft rotation
• Contamination entering the sealing area where a dust lip is not specified
• Loss of sealing integrity during crankshaft seal replacement service

Installation Notes and Tips

Verify the seal dimensions before installation: 35.0 mm inside diameter, 47.0 mm outside diameter, and 7.0 mm thickness. Confirm the application position shown in the fitment data, since some Nissan Platina listings reference the timing end and front location. Inspect the crankshaft sealing surface for wear or scoring before installing the new seal, and make sure the seal is seated squarely to avoid distortion.

Quality Assurance

Elring is a recognized engine sealing brand, and this crankshaft seal is specified with defined material, size, and design details for accurate application matching. Use the listed fitment and dimensions to confirm the correct replacement before service.
