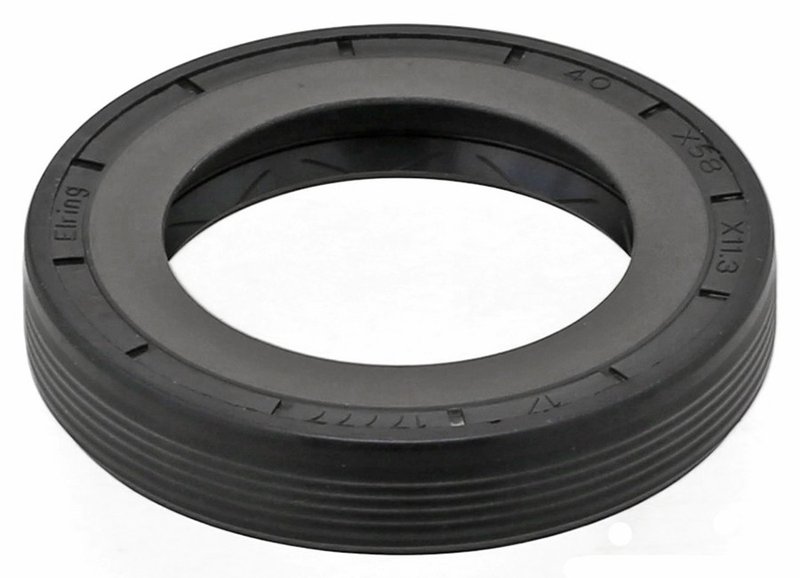

Elring 504.581 Differential Seal

Elring Differential Seal 504.581 Overview

The Elring differential seal 504.581 is engineered for reliable sealing performance in driveline and axle applications. Designed with durable FPM (fluoride rubber) and ACM (polyacrylate rubber) materials, this seal ensures effective protection against leaks and contamination in compatible vehicle differentials.

• Material: FPM (fluoride rubber) and ACM (polyacrylate rubber) for enhanced chemical and temperature resistance
• Inside Diameter: 40.0 mm
• Outside Diameter: 58.0 mm
• Height: 11.3 mm
• Includes dust cover with dust lip for added protection
• Radial shaft seal design: ASW
• Swirl type: WD for optimized sealing performance

Technical Details and Construction

The Elring 504.581 differential seal features a robust construction combining FPM and ACM rubber compounds, which provide excellent resistance to oils, heat, and aging. The seal’s 40.0 mm inside diameter and 58.0 mm outside diameter make it suitable for specific differential shaft sizes. Its 11.3 mm height and ASW radial shaft seal design contribute to a secure fit and effective sealing under dynamic conditions. The integrated dust cover with a dust lip helps prevent dirt and debris ingress, extending the service life of the differential components.

Compatible Vehicles and Applications

This differential seal is compatible with various European and Asian vehicle makes and models that require a 40 mm shaft seal with these dimensions and material specifications. It is commonly used in driveline and axle assemblies where reliable sealing is critical to maintain differential fluid integrity and prevent contamination.

Common Issues Addressed by Elring 504.581 Differential Seal

• Prevents differential oil leaks that can lead to lubrication failure
• Protects against dust and debris entering the differential housing
• Reduces wear on differential bearings by maintaining proper lubrication
• Minimizes risk of seal degradation from heat and chemical exposure
• Helps maintain optimal differential performance and longevity

Installation Notes and Tips

When installing the Elring 504.581 differential seal, ensure the shaft and housing surfaces are clean and free of burrs or damage. Use appropriate tools to press the seal evenly into place without distortion. Verify the dust lip is correctly oriented to provide maximum protection. Lubricate the seal lip lightly with compatible differential oil before installation to reduce initial wear.

Quality Assurance and Warranty

Elring manufactures the 504.581 differential seal to meet stringent quality standards for automotive sealing components. The use of high-grade FPM and ACM materials ensures durability and resistance to harsh operating conditions. While specific warranty terms may vary, Elring products typically come with manufacturer-backed quality assurance to support reliable performance in driveline applications.
