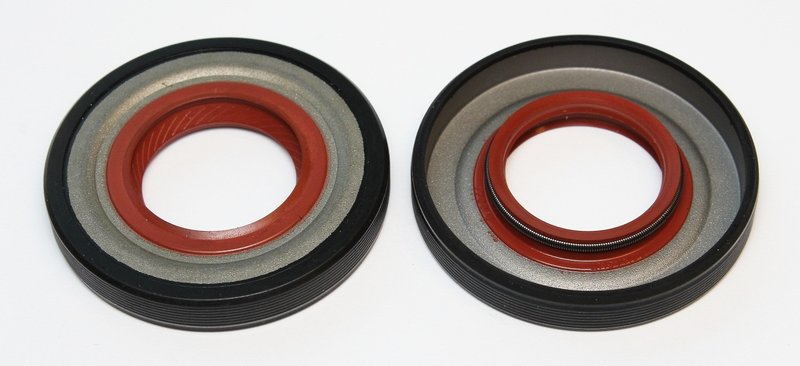

Elring 508.608 Engine Camshaft Seal

Elring Camshaft Seal for Engine Sealing

Elring part number 508.608 is an engine camshaft seal built for precise shaft sealing in the engine timing area. It uses a radial shaft seal design with a dust lip to help keep contaminants out while maintaining a secure seal at the camshaft.

With a 22 mm inner diameter, 45 mm outer diameter, and 7 mm height, this seal is made from FPM (fluoride rubber) and ACM (polyacrylate rubber) for use in demanding engine sealing applications. This Elring 508.608 camshaft seal is a direct-fit style replacement for service work where accurate dimensions matter.

Key Features

• Engine camshaft seal for sealing the camshaft area
• Part number 508.608
• Radial shaft seal design: ASW
• Dust cover with dust lip for added sealing protection
• Inner diameter: 22 mm
• Outer diameter: 45 mm
• Height: 7 mm
• Material: FPM (fluoride rubber) / ACM (polyacrylate rubber)
• Swirl type: LD

Product Details

Elring 508.608 is engineered as an OE-style camshaft seal for engine gasket and sealing system service. The seal dimensions and material selection are important for maintaining proper sealing at the camshaft, especially in high-temperature engine environments where oil control and contamination resistance are critical. For technicians searching for an Elring camshaft seal, 508.608, or an engine camshaft seal for timing-side service, this part provides the specified size and construction needed for accurate replacement.

This part cross-references Dorman - HELP 76036 for the same application. It is also listed among interchange numbers including 3 344 397 and 77 03 087 191.

What It Helps Address

• Oil seepage at the camshaft seal area
• Contamination entering the camshaft sealing surface
• Seal wear from heat and engine oil exposure
• Loss of sealing integrity during timing service
• Replacement needs for worn or hardened camshaft seals

Installation Notes

Verify the camshaft seal dimensions before installation: 22 mm inner diameter, 45 mm outer diameter, and 7 mm height. Clean the sealing bore and shaft surface thoroughly, and inspect the camshaft for scoring or wear before pressing in the new seal. Use proper seal installation tools to avoid damaging the dust lip or sealing edge.

Compatible with engine sealing service on vehicles that use this exact Elring 508.608 camshaft seal specification. For fitment-based searches, use the part number 508.608 and confirm application details against the vehicle’s engine code and seal dimensions.

Quality Assurance

Elring is a recognized name in engine gaskets and sealing systems, and this camshaft seal is built to the listed dimensional and material specifications for service replacement.
