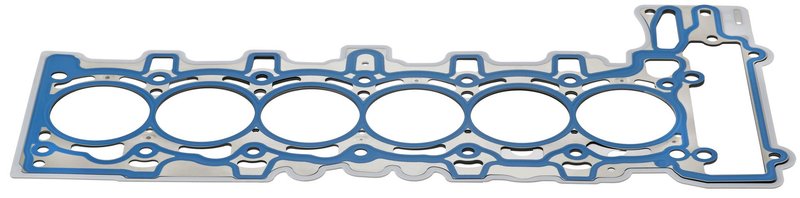

Elring 512.330 Engine Cylinder Head Gasket
| Brand | Elring 512.330 |
|---|---|
| Additionally required articles (article numbers) | 270.190 |
| Diameter [Mm] | 85.8 |
| Gasket Design | Multilayer Steel (MLS) |
| Installed Thickness [Mm] | 1.5 |
| Thickness | 1.5 |
| Fits | BMW · 57 vehicles |
MLS construction. Multilayer steel design helps maintain a reliable seal under pressure.
Cylinder head gasket. Seals the engine block and cylinder head to support compression.
Cross-references Four Seasons 54732, Victor Reinz 61-36120-10 and 11 12 7 555 758 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Elring MLS Cylinder Head Gasket for BMW
Elring part number 512.330 is a multilayer steel cylinder head gasket built for BMW engines that require a 1.5 mm installed thickness and an 85.8 mm bore diameter. It is specified for a range of BMW 328i, X3, X5, 528i, Z4, and related applications where precise sealing is critical.
- Multilayer steel (MLS) gasket design for cylinder head sealing
- Installed thickness: 1.5 mm
- Thickness: 1.5
- Diameter: 85.8 mm
- Elring 512.330 cylinder head gasket for BMW engine service
- Cross-references Victor Reinz 61-36120-10 for the same application
Fitment and application details
This Elring 512.330 head gasket is used in BMW engine rebuild and repair work where the original sealing surface must be restored to the correct thickness and bore size. It fits 2007-2013 BMW 328i, 2007-2012 BMW X3, 2008-2011 BMW 528i, 2010-2011 BMW X1, 2006-2011 BMW Z4, 2007-2010 BMW 130i, 2009-2010 BMW 328i xDrive, 2009-2010 BMW 528i xDrive, 2007-2010 BMW X5, 2007-2008 BMW 328xi, 2008 BMW 528xi, 2006-2007 BMW 525i, 2006-2007 BMW 530i, 2006-2007 BMW 530xi, 2006 BMW 330i, 2006 BMW 330xi, 2005-2006 BMW X3, 2004-2005 BMW Z4, 2006 BMW X5, 2008 BMW 125i, 2012 BMW X5, and 2014-2015 BMW ActiveHybrid 7.
What this gasket helps address
- Combustion gas leakage at the cylinder head interface
- Coolant loss caused by head gasket sealing failure
- Oil and coolant mixing from a compromised head seal
- Compression loss that affects engine performance
- Sealing issues after cylinder head service or engine teardown
Installation notes and tips
Verify the required gasket thickness and bore diameter before installation. The listing notes an additional required article, 270.190, so confirm all related service parts are on hand before beginning assembly. Clean and inspect the block and cylinder head mating surfaces, and follow BMW torque and tightening procedures exactly during reassembly. This part number, 512.330, should be matched to the engine specification rather than the vehicle alone.
Quality assurance
Elring is a recognized name in engine sealing systems, and this MLS gasket is built for precise fitment in BMW applications. Use the confirmed dimensions and vehicle coverage to select the correct replacement for your repair.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2015 | BMW | ActiveHybrid 7 | Base | Sedan | RWD | 3.0L | L6 | — | N/A | — |
| 2014 | BMW | ActiveHybrid 7 | Base | Sedan | RWD | 3.0L | L6 | — | N/A | — |
| 2013 | BMW | 328i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2012 | BMW | 328i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2012 | BMW | X3 | — | — | AWD | 3.0L | L6 | GAS | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2012 | BMW | X5 | xDrive30i | Sport Utility | AWD | 3.0L | L6 | — | N/A | — |
| 2011 | BMW | 328i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2011 | BMW | 528i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2011 | BMW | X1 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm; To 01/2011 |
| 2011 | BMW | X3 | — | — | AWD | 3.0L | L6 | GAS | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2011 | BMW | Z4 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2010 | BMW | 130i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm; To 01/2011 |
| 2010 | BMW | 328i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2010 | BMW | 328i xDrive | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2010 | BMW | 528i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2010 | BMW | 528i xDrive | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2010 | BMW | X1 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm; To 01/2011 |
| 2010 | BMW | X3 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2010 | BMW | X5 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2010 | BMW | Z4 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2009 | BMW | 130i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm; To 01/2011 |
| 2009 | BMW | 328i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2009 | BMW | 328i xDrive | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2009 | BMW | 528i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2009 | BMW | 528i xDrive | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2009 | BMW | X3 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2009 | BMW | X5 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2009 | BMW | Z4 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2008 | BMW | 125i | Coupe | Coupe | RWD | 3.0L | L6 | — | N/A | — |
| 2008 | BMW | 130i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm; To 01/2011 |
| 2008 | BMW | 328i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2008 | BMW | 328xi | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2008 | BMW | 528i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2008 | BMW | 528xi | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2008 | BMW | X3 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2008 | BMW | X5 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2008 | BMW | Z4 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2007 | BMW | 130i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm; To 01/2011 |
| 2007 | BMW | 328i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2007 | BMW | 328xi | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2007 | BMW | 525i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2007 | BMW | 530i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2007 | BMW | 530xi | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2007 | BMW | X3 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2007 | BMW | X5 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2007 | BMW | Z4 | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2006 | BMW | 330i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2006 | BMW | 330xi | — | — | AWD | 3.0L | L6 | GAS | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2006 | BMW | 525i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2006 | BMW | 530i | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2006 | BMW | 530xi | — | — | — | 3.0L | L6 | — | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2006 | BMW | X3 | 3.0i | Sport Utility | AWD | 3.0L | L6 | — | N/A | — |
| 2006 | BMW | X5 | 3.0i | Sport Utility | AWD | 3.0L | L6 | — | N/A | — |
| 2006 | BMW | Z4 | — | — | RWD | 3.0L | L6 | GAS | N/A | Installed Thickness: 1.5mm; Diameter: 85.8mm |
| 2005 | BMW | X3 | 3.0i | Sport Utility | AWD | 3.0L | L6 | — | N/A | — |
| 2005 | BMW | Z4 | 3.0i | Convertible | RWD | 3.0L | L6 | — | N/A | — |
| 2004 | BMW | Z4 | 3.0i | Convertible | RWD | 3.0L | L6 | — | N/A | — |
