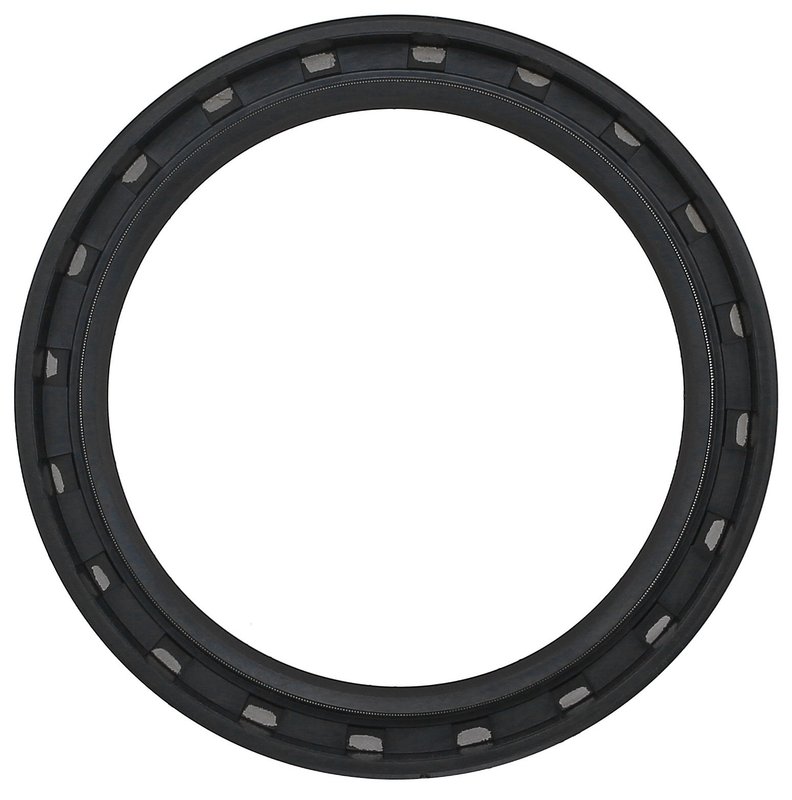

Elring 534.680 Differential Seal

Reliable Differential Seal for Porsche 911

The Elring 534.680 differential seal is engineered to provide a precise fit and durable sealing solution for Porsche 911 driveline systems. Crafted from high-quality ACM (polyacrylate) material, this seal ensures effective protection against leaks and contamination.

• Material: ACM (polyacrylate) for enhanced chemical and temperature resistance
• Inside Diameter: 64.0 mm
• Outside Diameter: 82.0 mm
• Height: 8 mm with an additional height of 11 mm for secure installation
• Includes dust cover with dust lip to prevent debris ingress
• Radial shaft seal design: ASW type for reliable sealing performance
• Swirl type: WD, optimized for differential applications

Technical Details and Construction

The Elring 534.680 differential seal is designed specifically for the Porsche 911, ensuring compatibility and optimal performance. The seal’s ACM (polyacrylate) material offers resistance to oils, heat, and aging, which is critical for maintaining the integrity of the differential assembly. Its 64.0 mm inside diameter and 82.0 mm outside diameter provide a precise fit, while the dual height measurements (8 mm and 11 mm) accommodate the specific installation requirements of the differential housing.

The integrated dust cover with a dust lip adds an extra layer of protection by preventing dirt and debris from entering the sealing area, which helps extend the lifespan of the differential components. The ASW radial shaft seal design and WD swirl type contribute to effective sealing under dynamic conditions, reducing the risk of leaks and contamination.

Applications and Problem Solving

• Prevents oil leaks from the differential housing in Porsche 911 models
• Protects differential components from dust and debris ingress
• Maintains proper lubrication by sealing the driveline effectively
• Reduces wear and tear on differential shafts and bearings
• Helps avoid costly repairs related to seal failure or contamination

Installation Notes and Tips

When installing the Elring 534.680 differential seal, ensure the sealing surfaces are clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation, especially the dust lip, to maximize protection. It is recommended to inspect the differential housing and shaft for wear or damage before fitting the new seal to ensure optimal sealing performance.

Quality Assurance and Warranty

Elring manufactures the 534.680 differential seal to meet stringent quality standards, ensuring reliable performance in Porsche 911 driveline systems. The use of ACM material and precise engineering supports durability and resistance to harsh operating conditions. While specific warranty details may vary, Elring products typically come with manufacturer-backed quality guarantees to support professional automotive repairs.
