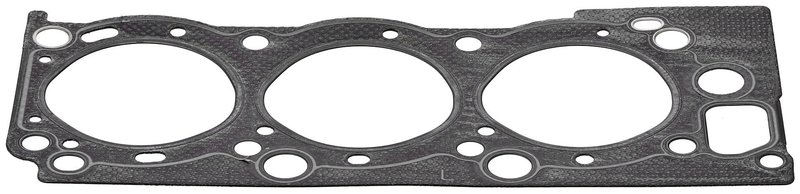

Elring 540.560 Engine Cylinder Head Gasket - Left

Elring 540.560 Cylinder Head Gasket

The Elring 540.560 engine cylinder head gasket is built for Toyota applications that require an 89 mm bore and 1.3 mm thickness. Its graphite composite gasket design supports a reliable seal between the cylinder head and engine block in compatible Toyota 4Runner, Pickup, and T100 applications.

Key Features

• Engine cylinder head gasket for Toyota engine sealing applications
• Graphite composite gasket design for consistent sealing performance
• 1.3 mm thickness
• 89 mm diameter
• Elring part number 540.560
• Cross-reference: Victor Reinz 61-53520-00

Detailed Description

Elring 540.560 is a graphite composite cylinder head gasket engineered for specific Toyota engines that use an 89 mm bore. This gasket is listed for 1988-1995 Toyota 4Runner, 1988-1990 Toyota Pickup, 1991-1995 Toyota Pickup, Left, and 1993-1994 Toyota T100, Left. For buyers searching for a Toyota 4Runner head gasket, Toyota Pickup head gasket, or Toyota T100 head gasket, this part number provides a direct match for the listed engine and position requirements. The 1.3 mm thickness is an important specification for maintaining proper compression and sealing integrity during cylinder head service.

Common Uses

• Replacing a leaking or failed cylinder head gasket
• Restoring compression loss caused by head gasket wear
• Addressing coolant or combustion sealing issues at the cylinder head
• Servicing Toyota engines during top-end rebuilds
• Matching an 89 mm bore and 1.3 mm gasket specification

Installation Notes and Tips

Verify engine bore, thickness, and position before installation. Clean the cylinder head and block mating surfaces thoroughly and inspect both surfaces for warpage or damage before assembly. Follow the vehicle service manual for torque sequence, torque values, and any required re-torque procedure. Confirm the application details for your Toyota 4Runner, Pickup, or T100 before ordering Elring 540.560.

Quality Assurance

Elring is a recognized engine sealing brand, and this gasket is built to the listed dimensional and material specifications for the stated Toyota applications. Part number 540.560 is also referenced by Victor Reinz 61-53520-00 for the same application.
