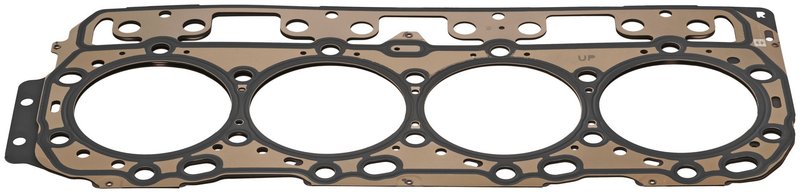

Elring 541.762 Engine Cylinder Head Gasket - Right

Elring MLS Cylinder Head Gasket for GM V8 Applications

The Elring 541.762 engine cylinder head gasket is a multilayer steel (MLS) gasket built for right-side cylinder head service on select Chevrolet and GMC trucks and vans. With a 1.0 mm thickness and 105.4 mm diameter, it matches the specified piston protrusion range for accurate sealing in the listed applications.

Key Features

• Elring part number 541.762 for engine sealing service
• Multilayer steel (MLS) gasket design for cylinder head sealing
• 1.0 mm thickness for the specified fitment range
• 105.4 mm diameter for listed GM engine applications
• Specified for piston protrusion from 0.274 mm to 0.325 mm
• Fits right-side cylinder head positions on supported vehicles

Detailed Product Information

This Elring 541.762 cylinder head gasket is specified for Chevrolet Express 2500, Chevrolet Express 3500, Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Savana 2500, GMC Savana 3500, GMC Sierra 2500 HD, and GMC Sierra 3500 HD applications listed in the fitment data. It is also referenced for 2007 Chevrolet Silverado 2500 HD Classic, 2007 Chevrolet Silverado 3500 Classic, 2007 GMC Sierra 2500 HD Classic, and 2007 GMC Sierra 3500 Classic, along with earlier Silverado 3500 and Sierra 3500 coverage shown in the fitment table.

The MLS construction helps provide a precise sealing surface for the cylinder head, while the thickness and piston protrusion specifications support correct selection during engine repair. This part cross-references Four Seasons 54581 for the same application.

What This Part Helps Address

• Coolant leakage at the cylinder head sealing surface
• Compression loss between the cylinder head and engine block
• Combustion sealing issues on the right-side head
• Oil seepage related to a worn head gasket
• Repair needs after cylinder head removal or engine teardown

Installation Notes and Tips

Verify the engine’s piston protrusion measurement before installation and confirm the gasket thickness matches the specified range. Clean and inspect the mating surfaces carefully, and follow the vehicle service procedure for torque sequence, torque stages, and any required fastener replacement. For fitment verification, match the vehicle year, make, model, and right-side application exactly as listed for Chevrolet Express, Chevrolet Silverado, GMC Savana, and GMC Sierra platforms.

Quality Assurance

Elring is a recognized name in engine sealing systems, and this gasket is built to the dimensional and material specifications listed for the application. Part number 541.762 is identified with MLS construction and fitment-specific measurements to support accurate replacement selection.
