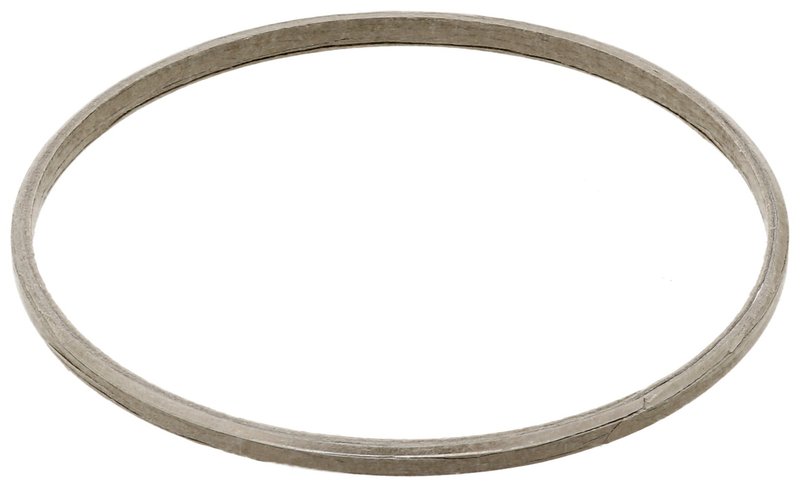

Elring 559.190 Exhaust Pipe Flange Gasket
| Brand | Elring 559.190 |
|---|---|
| Height [Mm] | 5.5 |
| Inner Diameter [Mm] | 118.8 |
| Outer Diameter [Mm] | 125.8 |
| Fits | Jaguar and Land Rover · 11 vehicles |
Precision seal. Exhaust pipe flange gasket with 5.5 mm height for controlled compression.
Dimension-specific fit. 118.8 mm inner diameter and 125.8 mm outer diameter for exact matching.
Catalog reference. Elring 559.190 simplifies ordering and service identification.
Cross-references LR121356 for the same application. See all 1.
Exhaust Flange Gasket Overview
The Elring 559.190 exhaust pipe flange gasket is built for sealing exhaust connections where precise fit and heat resistance matter. It matches select Land Rover and Jaguar applications, including turbocharger exhaust pipe locations with the listed dimensions.
Key Features
- Exhaust pipe flange gasket for sealing the joint between exhaust components.
- 5.5 mm height for a controlled compressed seal.
- 118.8 mm inner diameter and 125.8 mm outer diameter for dimension-specific fitment.
- Compatible with select Land Rover Range Rover, Range Rover Sport, Defender 110, and Jaguar F-Pace applications.
- Elring part number 559.190 for catalog and service reference.
Detailed Fitment and Use
This gasket is used in exhaust sealing applications where a stable flange seal is needed to control leakage at the connection point. Fits 2021-2023 Land Rover Range Rover, N/A. Fits 2022 Land Rover Range Rover Sport, N/A. Fits 2020-2021 Land Rover Defender 110, N/A, Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger. Fits 2020 Jaguar F-Pace, N/A. Fits 2020 Land Rover Range Rover, N/A, Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger. Fits 2019-2020 Land Rover Range Rover Sport, N/A, Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger. The Elring 559.190 is a direct service part for exhaust flange sealing on these listed vehicles.
What It Helps Address
- Exhaust leakage at a flange connection.
- Noise caused by a poor sealing surface.
- Soot marks around the exhaust joint.
- Loss of seal integrity after gasket wear or removal.
Installation Notes
Verify the flange dimensions and application notes before installation. Clean the mating surfaces thoroughly so the gasket can seat evenly. Confirm the exhaust connection matches the listed inner and outer diameter specifications for the Elring 559.190.
Quality Assurance
Elring is a recognized sealing-system manufacturer, and this gasket is cataloged under part number 559.190 for application-specific exhaust service.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2023 | Land Rover | Range Rover | SE | Sport Utility | AWD | 3.0L | L6 | — | — |
| 2022 | Land Rover | Range Rover | SE | Sport Utility | AWD | 3.0L | L6 | — | — |
| 2022 | Land Rover | Range Rover Sport | HSE Silver Edition | Sport Utility | 4WD | 3.0L | L6 | — | — |
| 2021 | Land Rover | Defender 110 | — | — | AWD | 3.0L | L6 | ELECTRIC/GAS | Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger |
| 2021 | Land Rover | Range Rover | Westminster Edition | Sport Utility | AWD | 3.0L | L6 | — | — |
| 2020 | Jaguar | F-Pace | S | Sport Utility | AWD | 3.0L | V6 | — | — |
| 2020 | Land Rover | Defender 110 | — | — | AWD | 3.0L | L6 | ELECTRIC/GAS | Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger |
| 2020 | Land Rover | Range Rover | — | — | AWD | 3.0L | L6 | ELECTRIC/GAS | Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger |
| 2020 | Land Rover | Range Rover Sport | — | — | AWD | 3.0L | L6 | ELECTRIC/GAS | Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger |
| 2020 | Land Rover | Range Rover Sport | — | — | 4WD | 3.0L | L6 | ELECTRIC/GAS | Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger |
| 2019 | Land Rover | Range Rover Sport | — | — | 4WD | 3.0L | L6 | ELECTRIC/GAS | Inner Diameter: 118.8mm; Outer Diameter: 125.8mm; Exhaust Pipe at exhaust turbocharger |
