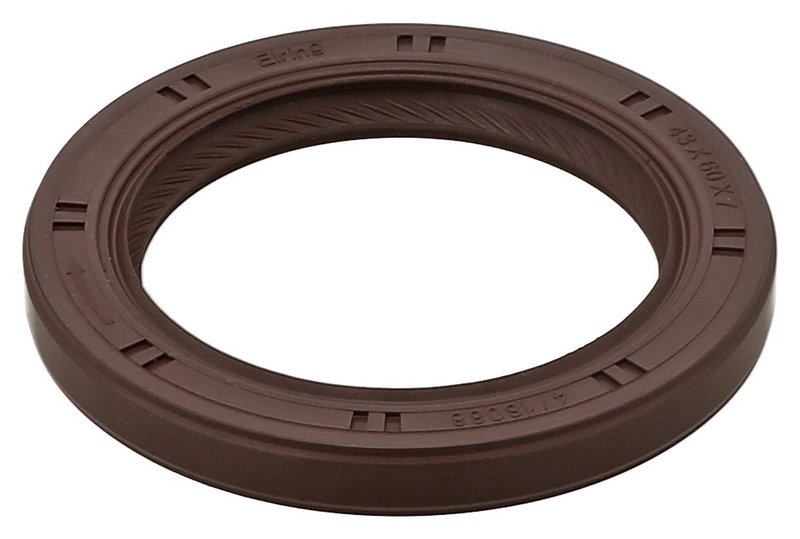

Elring 562.380 Engine Crankshaft Seal - Front

Elring 562.380 Crankshaft Seal

The Elring 562.380 engine crankshaft seal is built for front-engine sealing applications that require precise shaft control and reliable oil retention. It uses FPM fluoride rubber for heat and fluid resistance, with a dust lip to help keep contaminants away from the sealing edge.

Compatible with select Toyota and Lexus V8 applications, including Toyota Tundra, Toyota Sequoia, Toyota 4Runner, Lexus GX470, Lexus LX470, Lexus LS430, Lexus LS400, Lexus SC430, Lexus SC400, Lexus GS430, and Lexus GS400.

Key Features

• Elring part number 562.380
• Engine crankshaft seal for front sealing applications
• FPM (fluoride rubber) construction for demanding engine environments
• 43.0 mm inside diameter, 60.0 mm outside diameter, 7.0 mm thickness
• Dust lip helps reduce contamination at the seal surface
• Radial shaft seal design: AS
• Swirl type: RD, right-hand twist

Detailed Description

Elring 562.380 is an OE-style crankshaft seal engineered around the listed dimensions and sealing profile for accurate fitment on supported Toyota and Lexus engines. The 43.0 mm inner diameter, 60.0 mm outer diameter, and 7.0 mm width are critical for proper shaft sealing, while the FPM material supports durability in high-temperature engine conditions. This seal is a direct-fit service part for front crankshaft sealing on applications such as Toyota Tundra, Toyota Sequoia, and Lexus GX470, and it also cross-references Victor Reinz 81-10469-00 for the same application.

What It Helps Address

• Front crankshaft oil leakage
• Oil seepage around the crankshaft snout
• Contamination entering the sealing area
• Seal wear from heat and engine fluid exposure
• Loss of sealing integrity on high-mileage engines

Installation Notes and Tips

Verify the shaft diameter, seal width, and outer diameter before installation. Clean the sealing surface thoroughly and inspect the crankshaft for grooves or damage that could affect sealing performance. Confirm the swirl direction and dust lip orientation match the original part before pressing the seal into place. This part fits 2000-2006 Toyota Tundra, Front; 2007 Toyota Tundra, N/A; 2008-2009 Toyota Tundra, Front; 2001-2012 Toyota Sequoia, N/A; 2003-2009 Toyota 4Runner, N/A; 1998-2007 Toyota Land Cruiser, Front; 2008-2009 Lexus GX470, N/A; 2003-2007 Lexus GX470, Front; 1998-2007 Lexus LX470, Front; 2001-2007 Lexus GS430, N/A; 2001-2006 Lexus LS430, N/A; 1990-2000 Lexus LS400, N/A; 1998-2000 Lexus GS400, N/A; 1992-2000 Lexus SC400, N/A; and 2002-2010 Lexus SC430, N/A.

Quality Assurance

Elring is a recognized sealing-system manufacturer, and this crankshaft seal is produced to match the specified dimensions and sealing design for the listed Toyota and Lexus applications. Part number 562.380 is also referenced for service replacement use across the supported fitments.
