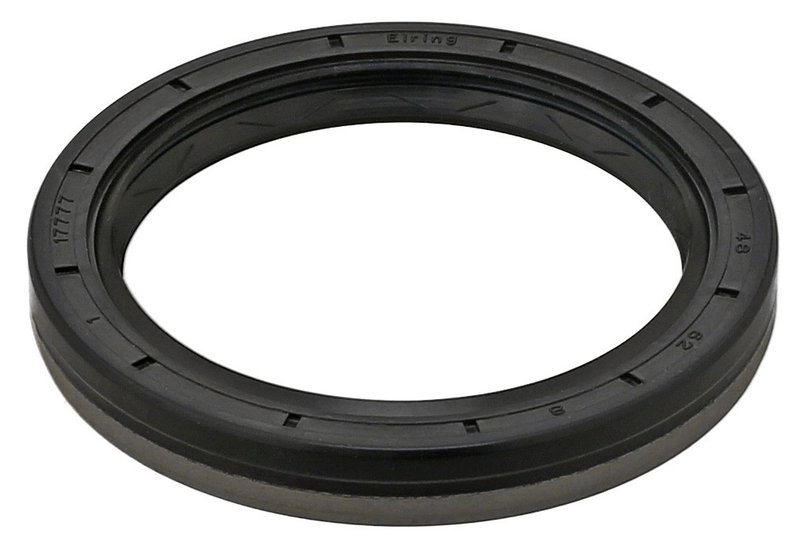

Elring 567.510 Differential Seal

Elring 567.510 Differential Seal for Volkswagen

Elring 567.510 is a differential seal built for driveline sealing service on select Volkswagen applications. It uses ACM (polyacrylate) material with a dust lip to help maintain a clean sealing surface where the axle or shaft passes through the differential housing.

Compatible With Volkswagen Beetle, Bora, Golf, and Jetta applications across the listed model years, this seal is specified with a 48.0 mm inside diameter, 62.0 mm outside diameter, and 8 mm height. The radial shaft seal design is A/BS with WD swirl type construction.

Key Features

• Elring differential seal, part number 567.510
• ACM (polyacrylate) sealing material for driveline use
• 48.0 mm inside diameter and 62.0 mm outside diameter
• 8 mm height for the specified housing fit
• Dust lip helps protect the sealing edge from contamination
• Radial shaft seal design: A/BS
• Swirl type: WD

Detailed Description

This Elring 567.510 differential seal is a direct-fit sealing component for Volkswagen driveline and axle service. It is used in applications where the differential housing needs a precise seal around the rotating shaft, helping retain lubricant and maintain proper sealing performance. The listed fitment includes 1990-2005 Volkswagen Golf, 1990-1992 Volkswagen Jetta, 1998-2010 Volkswagen Beetle, and 2006-2009 Volkswagen Bora. This part cross-references OE-style numbers such as 02J 409 189 A and 02J 409 189 E for the same application.

What It Helps Address

• Differential fluid seepage at the shaft opening
• Oil residue around the axle or output seal area
• Contamination entering the sealing surface
• Wear-related sealing loss in the differential housing
• Service replacement for a damaged or hardened seal

Installation Notes and Tips

• Verify the 48.0 mm inside diameter, 62.0 mm outside diameter, and 8 mm height before installation.
• Inspect the shaft and housing for scoring, corrosion, or debris before pressing in the new seal.
• Install with the sealing lip oriented correctly for the differential application.
• Use clean assembly practices to avoid damaging the dust lip or sealing edge.
• Confirm vehicle application by year and model before ordering, especially on Volkswagen Golf, Jetta, Beetle, and Bora driveline repairs.

Quality Assurance

Elring is a recognized sealing-system manufacturer with OE-level engineering focus for drivetrain applications. Part number 567.510 is built to the listed dimensional and material specifications for consistent fitment on the confirmed Volkswagen applications.
