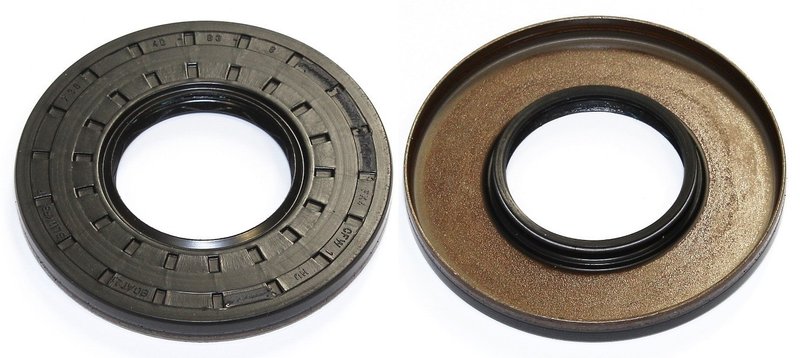

Elring 569.130 Drive Shaft Seal
| Brand | Elring 569.130 |
|---|---|
| Material | Acm (polyacrylate) |
| Inside Diameter | 40.0 |
| Thickness | 8.0 |
| Outside Diameter | 83.0 |
| Dust Cover | With dust lip |
| Radial Shaft Seal Design | A/bs2 |
| Swirl Type | Wd |
| Fits | Audi and Volkswagen · 24 vehicles |
Radial shaft seal design. A/BS2 construction helps maintain a reliable seal.
ACM material. Polyacrylate offers dependable sealing performance.
With dust lip. Added protection helps keep contaminants out.
Cross-references 0A6 409 596 and 01036457B for the same application. See all 2.
Elring 569.130 Drive Shaft Seal
Elring 569.130 is a drive shaft seal built for driveline sealing applications where precise dimensions matter. It uses ACM (polyacrylate) material, measures 40.0 mm inside diameter, 83.0 mm outside diameter, and 8.0 mm thickness, with a dust lip to help protect the sealing edge from contamination.
Key Features
- Drive shaft seal for driveline and axle sealing systems
- ACM (polyacrylate) construction for sealing performance in automotive service
- 40.0 mm inside diameter, 83.0 mm outside diameter, 8.0 mm thickness
- Dust lip design helps shield the seal area from road debris
- Radial shaft seal design: A/BS2
- Swirl type: WD
- Elring part number 569.130 for direct identification
Detailed Description
This Elring drive shaft seal is specified for select Audi and Volkswagen driveline applications, including Audi RS Q3, Audi TT Quattro, Audi TT RS Quattro, Volkswagen Tiguan, and Volkswagen Tiguan Limited. The seal dimensions and radial shaft seal profile are important for proper sealing at the drive shaft interface, helping maintain a clean barrier where rotating components pass through the housing. If you are sourcing an Elring 569.130 replacement for an Audi RS Q3 or Volkswagen Tiguan driveline repair, matching the listed measurements is essential.
This part cross-references OE-style numbers 0A6 409 596 and 01036457B for the same application.
What It Helps Address
- Gear oil or lubricant seepage at the drive shaft sealing point
- Contamination entering the seal area from dust and road debris
- Wear-related sealing loss on high-mileage driveline assemblies
- Replacement needs during axle, transmission, or driveline service
- Fitment matching for Audi RS Q3, Audi TT Quattro, and Volkswagen Tiguan applications
Installation Notes and Tips
Verify the inside diameter, outside diameter, and thickness against the removed seal before installation. Clean the shaft and housing thoroughly, inspect for grooves or scoring, and install the seal squarely to avoid lip damage. For vehicles such as the Audi RS Q3 and Volkswagen Tiguan, confirm the driveline configuration and seal profile before final assembly. Elring 569.130 should be matched to the exact application listed in the fitment data.
Quality Assurance
Elring is a recognized sealing-system manufacturer, and this drive shaft seal is built to the listed dimensional and design specifications for accurate replacement service.
Compatible Vehicles
- Fits 2021-2023 Audi RS Q3, N/A
- Fits 2017-2018 Audi RS Q3, N/A; Width: 8mm; Inner Diameter: 40mm; Outer Diameter: 83mm; Dust Cover: with dust lip; Swirl Type: Alternating Twist
- Fits 2017-2018 Volkswagen Tiguan Limited, N/A; Width: 8mm; Inner Diameter: 40mm; Outer Diameter: 83mm; Dust Cover: with dust lip; Swirl Type: Alternating Twist
- Fits 2009-2017 Volkswagen Tiguan, N/A
- Fits 2011-2014 Audi TT Quattro, N/A
- Fits 2011-2014 Audi TT RS Quattro, N/A
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2023 | Audi | RS Q3 | — | — | — | 2.5L | L5 | GAS | — |
| 2022 | Audi | RS Q3 | — | — | — | 2.5L | L5 | GAS | — |
| 2021 | Audi | RS Q3 | — | — | — | 2.5L | L5 | GAS | — |
| 2018 | Audi | RS Q3 | — | — | — | 2.5L | L5 | — | Width: 8mm; Inner Diameter: 40mm; Outer Diameter: 83mm; Dust Cover: with dust lip; Swirl Type: Alternating Twist |
| 2018 | Volkswagen | Tiguan Limited | — | — | — | 2.0L | L4 | — | Width: 8mm; Inner Diameter: 40mm; Outer Diameter: 83mm; Dust Cover: with dust lip; Swirl Type: Alternating Twist |
| 2017 | Audi | RS Q3 | — | — | — | 2.5L | L5 | — | Width: 8mm; Inner Diameter: 40mm; Outer Diameter: 83mm; Dust Cover: with dust lip; Swirl Type: Alternating Twist |
| 2017 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
| 2017 | Volkswagen | Tiguan Limited | — | — | — | 2.0L | L4 | — | Width: 8mm; Inner Diameter: 40mm; Outer Diameter: 83mm; Dust Cover: with dust lip; Swirl Type: Alternating Twist |
| 2016 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
| 2015 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
| 2014 | Audi | TT Quattro | — | — | — | 2.0L | L4 | GAS | — |
| 2014 | Audi | TT RS Quattro | Base | Coupe | AWD | 2.5L | L5 | — | — |
| 2014 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
| 2013 | Audi | TT Quattro | — | — | — | 2.0L | L4 | GAS | — |
| 2013 | Audi | TT RS Quattro | — | — | — | 2.5L | L5 | GAS | — |
| 2013 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
| 2012 | Audi | TT Quattro | — | — | — | 2.0L | L4 | GAS | — |
| 2012 | Audi | TT RS Quattro | — | — | — | 2.5L | L5 | GAS | — |
| 2012 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
| 2011 | Audi | TT Quattro | — | — | — | 2.0L | L4 | GAS | — |
| 2011 | Audi | TT RS Quattro | Base | Coupe | AWD | 2.5L | L5 | — | — |
| 2011 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
| 2010 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
| 2009 | Volkswagen | Tiguan | — | — | — | 2.0L | L4 | GAS | — |
