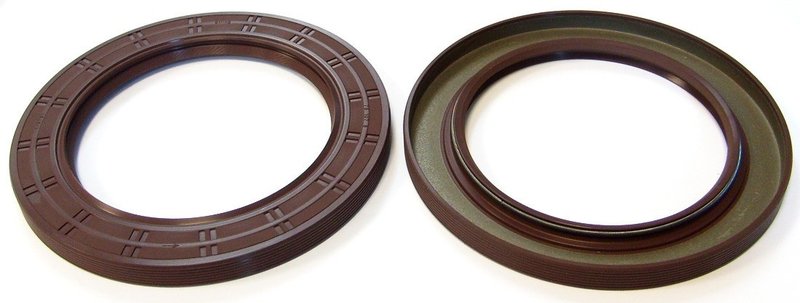

Elring 575.450 Engine Crankshaft Seal - Rear
| Brand | Elring 575.450 |
|---|---|
| Position | Rear |
| Material | Fpm (fluoride rubber) |
| Inside Diameter | 75.0 |
| Thickness | 8.0 |
| Outside Diameter | 107.0 |
| Dust Cover | With dust lip |
| Radial Shaft Seal Design | Asw |
| Swirl Type | Ld |
| Fits | Audi, Scion, and Toyota · 56 vehicles |
Fluoride rubber seal. Resists heat and oil for dependable crankshaft sealing.
Dust lip included. Helps keep contaminants out and protect the sealing surface.
Radial shaft seal design. Built for precise sealing performance in engine applications.
Cross-references MAHLE 67830, MAHLE JV1678 and National 710761 for the same application. See all 11.
$29.23Free shipping
In stock · usually ships same day before 1pm CST
Vehicle: not selected
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Fitment not checked
Select your vehicle to confirm fitment
Verify this part fits before purchasing β free returns if it doesn't
Step 2 — Quantity
$29.23
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Crankshaft Seal options
Engine Crankshaft Seal for Toyota and Audi
Elring 575.450 is an engine crankshaft seal built for rear and transmission-side applications where precise shaft sealing is critical. It uses FPM (fluoride rubber) for oil resistance and heat stability, along with a dust lip to help keep contaminants away from the sealing edge.
Compatible With select Toyota Prius, Prius C, Yaris, Echo, Scion xA, Scion xB, and Audi A4/A4 Quattro applications, this seal matches common OE-style dimensions for service work on the crankshaft or transmission side.
Key Features
- Elring part number 575.450
- FPM (fluoride rubber) sealing material
- 75.0 mm inside diameter
- 107.0 mm outside diameter
- 8.0 mm thickness
- Dust cover with dust lip
- Radial shaft seal design: ASW
- Swirl type: LD / left-hand twist
Detailed Description
This crankshaft seal is specified for a range of Toyota and Audi vehicles, including 2001-2009 Toyota Prius, 2006-2019 Toyota Yaris, 2000-2005 Toyota Echo, 2004-2006 Scion xA, 2004-2006 Scion xB, 2005-2009 Audi A4 Quattro, and 2006-2008 Audi A4. It also appears in rear or transmission-side applications such as 2020-2021 Toyota Prius C, 2020 Toyota Yaris, and 2004-2005 Toyota Yaris rear transmission end service.
Elring 575.450 is cross-referenced to MAHLE 67830 and Victor Reinz 81-53313-00 for the same application. The seal dimensions and left-hand twist swirl type are important for correct crankshaft sealing performance and proper OE-style fitment.
What It Helps Address
- Engine oil leakage at the crankshaft seal area
- Contamination entering the sealing surface
- Wear-related seepage at the transmission side or rear seal location
- Seal replacement during engine or transmission service
- Fitment issues when OE dimensions must be matched closely
Installation Notes and Tips
Verify the seal dimensions, position, and swirl direction before installation. Match the 75 mm inner diameter, 107 mm outer diameter, and 8 mm thickness to the original part, and confirm whether the application is rear, transmission side, or another listed position. Clean the shaft and housing thoroughly before pressing the seal into place to avoid premature wear.
Quality Assurance
Elring manufactures sealing components for engine service applications with OE-style dimensional accuracy and material selection focused on durability. This part is built with FPM rubber and a dust lip to support reliable sealing in demanding crankshaft applications.
This part fits 56 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2021 | Toyota | Prius C | — | — | — | 1.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Rear | Transmission Side |
| 2020 | Toyota | Prius C | — | — | — | 1.5L | L4 | FULL HYBRID EV-GAS (FHEV) | Rear | Transmission Side |
| 2020 | Toyota | Yaris | Base | Hatchback | FWD | 1.5L | L4 | — | N/A | — |
| 2019 | Toyota | Prius C | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2019 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2018 | Toyota | Prius C | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2018 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2017 | Toyota | Prius C | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2017 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Toyota | Prius C | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2016 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Toyota | Prius C | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2015 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Prius C | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2014 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Prius C | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2013 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Prius C | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2012 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2011 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2010 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Audi | A4 Quattro | — | — | — | 3.2L | V6 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2009 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2008 | Audi | A4 | Base | Sedan | FWD | 3.2L | V6 | — | N/A | — |
| 2008 | Audi | A4 Quattro | — | — | — | 3.2L | V6 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2008 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2008 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2007 | Audi | A4 | Base | Sedan | FWD | 3.2L | V6 | — | N/A | — |
| 2007 | Audi | A4 Quattro | — | — | — | 3.2L | V6 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2007 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2007 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2006 | Audi | A4 | Base | Sedan | FWD | 3.2L | V6 | — | N/A | — |
| 2006 | Audi | A4 Quattro | — | — | — | 3.2L | V6 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2006 | Scion | xA | — | — | — | 1.5L | L4 | — | Rear | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2006 | Scion | xB | — | — | — | 1.5L | L4 | — | Rear | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2006 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2006 | Toyota | Yaris | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2005 | Audi | A4 Quattro | — | — | — | 3.2L | V6 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2005 | Scion | xA | — | — | — | 1.5L | L4 | — | Rear | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2005 | Scion | xB | — | — | — | 1.5L | L4 | — | Rear | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2005 | Toyota | Echo | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2005 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2005 | Toyota | Yaris | — | — | — | 1.3L | L4 | — | Rear | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist; Transmission End |
| 2004 | Scion | xA | — | — | — | 1.5L | L4 | — | Rear | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2004 | Scion | xB | — | — | — | 1.5L | L4 | — | Rear | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2004 | Toyota | Echo | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2004 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2004 | Toyota | Yaris | — | — | — | 1.3L | L4 | — | Rear | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist; Transmission End |
| 2003 | Toyota | Echo | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2003 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2002 | Toyota | Echo | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2002 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2001 | Toyota | Echo | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2001 | Toyota | Prius | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| 2000 | Toyota | Echo | — | — | — | 1.5L | L4 | — | N/A | Width: 8mm; Inner Diameter: 75mm; Outer Diameter: 107mm; Dust Cover: with dust lip; Swirl Type: Left-hand Twist |
| No rows match your filter. | ||||||||||
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MAHLE — 67830MAHLE — JV1678National — 710761Victor Reinz — 81-53313-0011 14 7 790 96090080-3109490311-750167106761506310019026734BP77414-01
