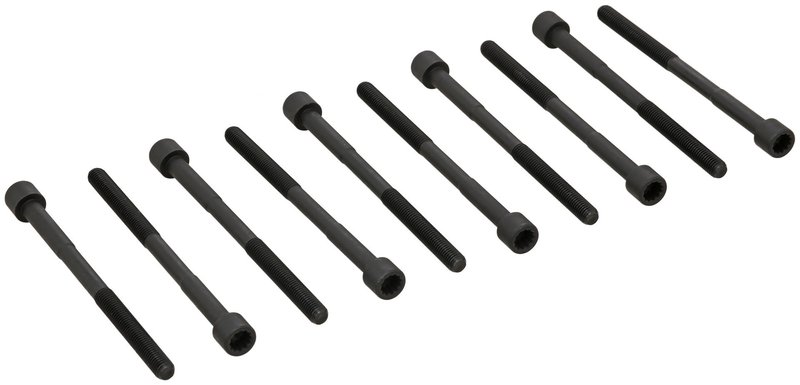

Elring 590.400 Engine Cylinder Head Bolt Set

Elring 590.400 Cylinder Head Bolt Set

Elring 590.400 is an engine cylinder head bolt set built for specific Toyota, Lexus, Scion, and Pontiac applications that use M10 x 1.5 x 147 mm female star head bolts. With 10 bolts in the set, this part is specified for engine service where correct clamping load and thread dimensions matter. It is a direct-fit option for many Toyota Corolla, Prius, and related models.

Key Features

• Engine cylinder head bolt set for service and rebuild work
• Part number: 590.400
• 10-bolt set
• Female star bolt head/nut design
• Thread size: M10 x 1.5 x 147 mm
• Fits a wide range of Toyota Corolla and Prius applications, plus select Lexus CT200h, Scion iM, and Pontiac Vibe models

Detailed Description

Elring 590.400 is engineered for engine cylinder head fastening applications that require the correct bolt length, thread pitch, and drive style. The female star head design and M10 x 1.5 x 147 mm specification match the listed Toyota, Lexus, Scion, and Pontiac fitments, including Toyota Corolla, Toyota Prius, and Toyota Prius Prime applications. If you are replacing head bolts during cylinder head service, this set provides the specified hardware format for those engines.

This part cross-references Beck/Arnley 016-1075 and MAHLE GS33762 for the same application. The Elring 590.400 part number is also used in interchange listings for related OE-style replacement searches.

What This Part Is Used For

• Replacing stretched or removed cylinder head bolts during engine repair
• Restoring proper cylinder head clamping on Toyota Corolla and Toyota Prius engines
• Servicing engines after head gasket replacement or cylinder head removal
• Matching the required female star drive and M10 x 1.5 thread specification
• Supporting rebuild work on compatible Lexus CT200h, Scion iM, and Pontiac Vibe applications

Installation Notes and Tips

Verify engine code, bolt length, thread pitch, and head design before installation. For the listed applications, confirm the vehicle-specific service procedure and tightening sequence in the factory repair information. Because cylinder head bolts are critical fasteners, replace them only with the exact specification required for the engine.

• Fits 2020-2024 Toyota Corolla, N/A
• Fits 2006-2008 Toyota Corolla, N/A
• Fits 2020-2024 Toyota Prius, N/A
• Fits 2020-2022 Toyota C-HR, N/A
• Fits 2019-2022 Toyota Prius AWD-e, N/A
• Fits 2017-2020 Toyota Prius Prime, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2018-2019 Toyota C-HR, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2009-2019 Toyota Corolla, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2010-2019 Toyota Prius, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2017-2018 Toyota Corolla iM, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2012-2018 Toyota Prius V, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2011-2017 Lexus CT200h, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2016 Scion iM, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2012-2015 Toyota Prius Plug-In, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2009-2014 Toyota Matrix, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2009-2010 Pontiac Vibe, N/A; Length: 147mm; Thread Size: M10; Thread Pitch: 1.5mm; Bolt Head Nut Design: Female Star
• Fits 2008 Toyota Matrix, N/A

Quality Assurance

Elring is a recognized engine sealing and fastening brand used in professional repair applications. This cylinder head bolt set is built to the listed dimensional and drive specifications for accurate fitment on the confirmed vehicle applications.
