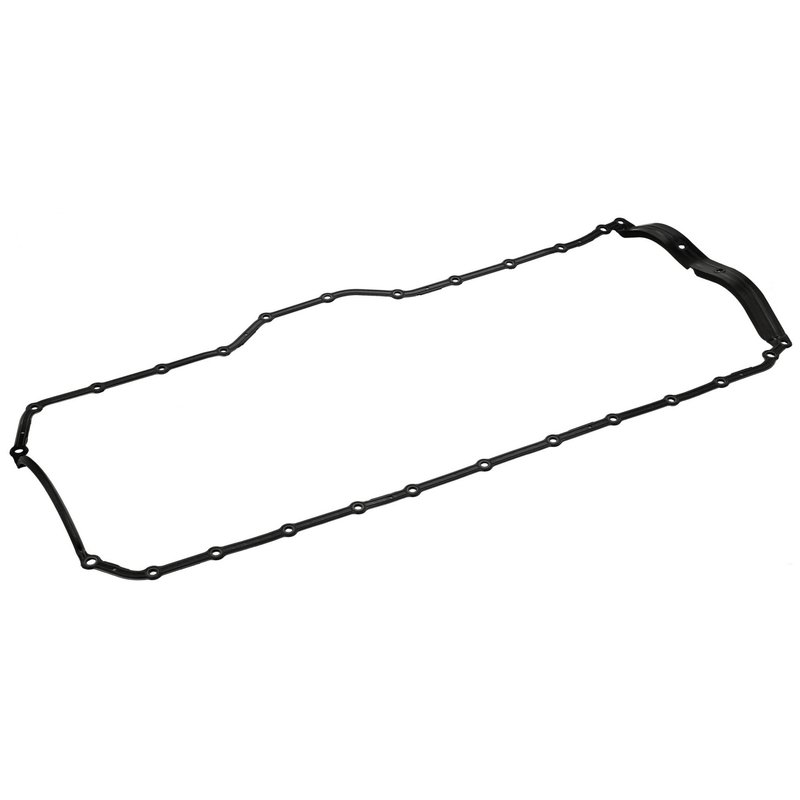

Elring 651.680 Engine Oil Pan Gasket

Elastomer Oil Pan Gasket for Jeep Engines

The Elring 651.680 engine oil pan gasket is built with elastomer material to deliver a consistent seal between the oil pan and engine block. It supports leak control and stable engine operation for Jeep Wrangler, Cherokee, Grand Cherokee, and Comanche applications across multiple model years.

Key Features

• Elastomer construction for flexible sealing performance
• Engine oil pan gasket for leak-resistant crankcase sealing
• Direct-fit application coverage for select Jeep models
• OE-style sealing solution for routine engine service
• Part number 651.680 for easy identification

Detailed Description

Elring 651.680 is an engine oil pan gasket made for sealing the oil pan to the engine on select Jeep vehicles. The elastomer material helps maintain a uniform seal under normal engine heat cycles, which is important for controlling oil seepage and preserving clean engine operation. This part is a practical choice for Jeep Wrangler, Jeep Cherokee, Jeep Grand Cherokee, and Jeep Comanche service work where a reliable oil pan seal is required. This part cross-references MAHLE OS32118 for the same application.

What It Helps Address

• Oil leaking from the oil pan-to-block sealing surface
• Wet residue or drips under the engine
• Seepage after oil pan removal or service
• Loss of sealing integrity from aged gasket material
• Maintenance needs on high-mileage Jeep engines

Installation Notes and Tips

Clean both mating surfaces thoroughly before installation and remove all old gasket material, oil, and debris. Inspect the oil pan flange for distortion and verify fastener torque in the manufacturer’s sequence to help the elastomer gasket seat evenly. Confirm vehicle application by year, make, and model before ordering; this gasket is listed for 1987-2001 Jeep Cherokee, 1987-1992 Jeep Comanche, 1991-1995 Jeep Wrangler, 1996-2004 Jeep Grand Cherokee, and 1997-2006 Jeep Wrangler.

Quality Assurance

Elring is known for sealing-system components used in engine service, and this gasket is manufactured to support dependable fit and sealing performance in the listed applications. Part number 651.680 is provided for accurate cross-reference and catalog matching.
