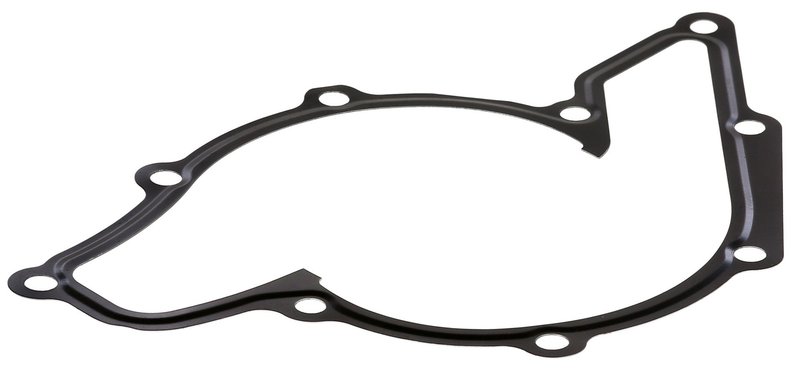

Elring 710.560 Engine Water Pump Gasket
| Brand | Elring 710.560 |
|---|---|
| Gasket Design | Steel |
| Fits | Audi · 31 vehicles |
Steel gasket design. Provides a durable sealing surface for the water pump.
Engine water pump gasket. Creates a reliable seal in the cooling system.
Cross-references FEL-PRO 35829, 06C 121 043 and 00609900 for the same application. See all 4.
Elring 710.560 Engine Water Pump Gasket
Elring 710.560 is a steel engine water pump gasket made for sealing service on select Audi applications. It is built for the 2001-2006 Audi fitments listed below and supports a precise seal at the water pump mounting surface.
Key Features
- Steel gasket design for a stable sealing surface
- Engine water pump gasket for cooling system service
- Fits 2001-2005 Audi Allroad Quattro
- Fits 2002-2005 Audi A4
- Fits 2002-2006 Audi A4 Quattro
- Fits 2002-2005 Audi A6 Quattro
- Fits 2002-2006 Audi A6
- Elring part number 710.560 for direct catalog matching
Detailed Description
This Elring water pump gasket is specified with a steel gasket design, which helps maintain a consistent seal between the water pump and engine mating surface. It is a practical replacement for cooling system service on Audi A4, Audi A4 Quattro, Audi A6, Audi A6 Quattro, and Audi Allroad Quattro models in the listed years. The part number 710.560 is also useful when cross-checking service records or ordering by reference.
This part cross-references FEL-PRO 35829 for the same application.
What It Helps Address
- Coolant seepage at the water pump mounting area
- Loss of sealing integrity after water pump replacement
- Leak paths caused by a worn or compressed gasket
- Service issues during cooling system repair on Audi A4 and Audi A6 platforms
- Fitment verification when replacing an OE-style gasket by part number 710.560
Installation Notes and Tips
Clean the mating surfaces thoroughly before installation and inspect the water pump flange for damage or corrosion. Confirm the gasket orientation matches the pump and engine housing before tightening fasteners to the vehicle manufacturer’s specification. Verify application by year, model, and engine service part reference before assembly.
Quality Assurance
Elring is a recognized sealing-system manufacturer, and this gasket is cataloged for direct replacement use on the listed Audi applications. Interchange references include 06C 121 043, 00609900, and K32312 for additional catalog verification.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2006 | Audi | A4 Quattro | — | — | AWD | 3.0L | V6 | GAS | N/A | — |
| 2006 | Audi | A6 | Elite | Sedan | FWD | 3.0L | V6 | — | N/A | — |
| 2005 | Audi | A4 | — | — | FWD | 3.0L | V6 | GAS | N/A | — |
| 2005 | Audi | A4 Quattro | — | — | AWD | 3.0L | V6 | GAS | N/A | — |
| 2005 | Audi | A6 | — | — | FWD | 3.0L | V6 | GAS | N/A | — |
| 2005 | Audi | A6 Quattro | — | — | AWD | 3.0L | V6 | GAS | N/A | — |
| 2005 | Audi | Allroad Quattro | — | — | AWD | 2.7L | V6 | GAS | N/A | — |
| 2004 | Audi | A4 | — | — | — | 3.0L | V6 | — | N/A | — |
| 2004 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | — | N/A | — |
| 2004 | Audi | A6 | — | — | — | 3.0L | V6 | — | N/A | — |
| 2004 | Audi | A6 | — | — | FWD | 3.0L | V6 | GAS | N/A | — |
| 2004 | Audi | A6 Quattro | — | — | — | 3.0L | V6 | — | N/A | — |
| 2004 | Audi | A6 Quattro | — | — | AWD | 3.0L | V6 | GAS | N/A | — |
| 2004 | Audi | A6 Quattro | — | — | — | 2.7L | V6 | — | N/A | — |
| 2004 | Audi | Allroad Quattro | — | — | — | 2.7L | V6 | — | N/A | — |
| 2003 | Audi | A4 | — | — | — | 3.0L | V6 | — | N/A | — |
| 2003 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | — | N/A | — |
| 2003 | Audi | A6 | — | — | — | 3.0L | V6 | — | N/A | — |
| 2003 | Audi | A6 | — | — | FWD | 3.0L | V6 | GAS | N/A | — |
| 2003 | Audi | A6 Quattro | — | — | — | 3.0L | V6 | — | N/A | — |
| 2003 | Audi | A6 Quattro | — | — | AWD | 3.0L | V6 | GAS | N/A | — |
| 2003 | Audi | A6 Quattro | — | — | — | 2.7L | V6 | — | N/A | — |
| 2003 | Audi | Allroad Quattro | — | — | — | 2.7L | V6 | — | N/A | — |
| 2002 | Audi | A4 | — | — | — | 3.0L | V6 | — | N/A | — |
| 2002 | Audi | A4 Quattro | — | — | — | 3.0L | V6 | — | N/A | — |
| 2002 | Audi | A6 | — | — | — | 3.0L | V6 | — | N/A | — |
| 2002 | Audi | A6 | — | — | FWD | 3.0L | V6 | GAS | N/A | — |
| 2002 | Audi | A6 Quattro | — | — | — | 3.0L | V6 | — | N/A | — |
| 2002 | Audi | A6 Quattro | — | — | AWD | 3.0L | V6 | GAS | N/A | — |
| 2002 | Audi | Allroad Quattro | — | — | — | 2.7L | V6 | GAS | N/A | — |
| 2001 | Audi | Allroad Quattro | — | — | — | 2.7L | V6 | GAS | N/A | — |
