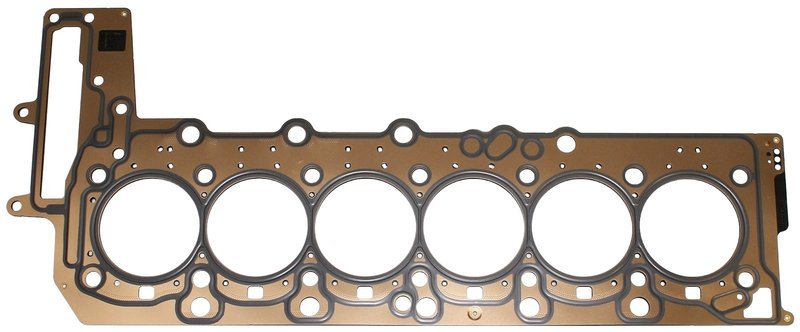

Elring 713.183 Engine Cylinder Head Gasket

Overview of Elring Engine Cylinder Head Gasket 713.183

The Elring 713.183 engine cylinder head gasket is engineered for precise fitment and reliable sealing in select BMW models. Designed with multilayer steel construction, this gasket ensures durability and optimal performance for engines requiring a 1.65 mm thickness.

• Thickness: 1.65 mm for accurate sealing
• Diameter: 85 mm to match cylinder specifications
• Gasket Design: Multilayer steel (MLS) for enhanced durability
• Installed Thickness: 1.65 mm ensuring consistent compression
• Number of Holes: 3 for proper fluid and gas passage
• Piston Protrusion Range: 1.03 mm to 1.18 mm for precise engine fit

Technical Details and Compatibility

This Elring engine cylinder head gasket (part number 713.183) is specifically designed for compatibility with BMW 535d, 535d xDrive, 740Ld xDrive, and X5 models. The multilayer steel (MLS) design provides a robust seal between the cylinder head and engine block, accommodating thermal expansion and high combustion pressures. The 1.65 mm thickness and 85 mm diameter are tailored to maintain engine compression and prevent leaks, while the three-hole configuration supports coolant and oil flow as required by these BMW engines.

Applications and Problem Resolution

• Prevents coolant and oil leaks between cylinder head and engine block
• Maintains proper engine compression for efficient combustion
• Reduces risk of gasket failure under high thermal and mechanical stress
• Addresses issues related to engine overheating and loss of power
• Suitable for repair or replacement in BMW 535d, 535d xDrive, 740Ld xDrive, and X5 engines

Installation Notes and Tips

Ensure the cylinder head and engine block surfaces are clean and free of debris before installation. Verify the gasket orientation matches the engine specifications, paying attention to the three-hole alignment. Use proper torque settings as specified by BMW to avoid warping or uneven compression. It is recommended to replace the gasket during cylinder head servicing or engine rebuilds to maintain optimal sealing performance.

Quality Assurance and Warranty

Elring is recognized for manufacturing engine gaskets that meet OEM standards. The 713.183 cylinder head gasket undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty terms may vary, Elring products typically come with coverage against manufacturing defects, providing confidence in long-term reliability for BMW 535d, 535d xDrive, 740Ld xDrive, and X5 applications.
