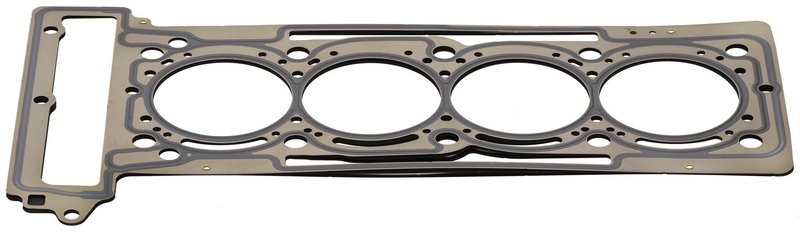

Elring 720.732 Engine Cylinder Head Gasket

Elring MLS Cylinder Head Gasket for Mercedes-Benz

Elring 720.732 is a multilayer steel engine cylinder head gasket built for precise sealing in modern turbocharged and high-compression engines. With an 84.1 mm diameter and 0.85 mm installed thickness, it is specified for select Mercedes-Benz and INFINITI applications that require exact bore and thickness matching.

Key Features

• Multilayer steel (MLS) gasket design for cylinder head sealing
• 84.1 mm diameter for matched bore coverage
• 0.85 mm thickness and 0.85 mm installed thickness
• Elring part number 720.732
• Cross-reference: Mercedes-Benz 270 016 00 20

Detailed Description

This Elring cylinder head gasket is engineered for engines that rely on a stable MLS sealing surface between the cylinder head and engine block. The 84.1 mm bore diameter and 0.85 mm thickness make Elring 720.732 a direct-spec replacement for select vehicles including Mercedes-Benz CLA250, GLA250, A200, B250, and INFINITI QX30 applications listed below. If you are servicing a Mercedes-Benz CLA250 cylinder head gasket, Mercedes-Benz GLA250 head gasket, or INFINITI QX30 MLS head gasket application, this part number should be matched carefully to engine specifications before installation.

Vehicle Fitment

• Fits 2013-2022 Mercedes-Benz CLA250, N/A, Diameter: 84.1mm
• Fits 2014-2020 Mercedes-Benz GLA200, N/A, Diameter: 84.1mm
• Fits 2014-2020 Mercedes-Benz GLA250, N/A, Diameter: 84.1mm
• Fits 2017-2019 INFINITI QX30, N/A, Diameter: 84.1mm
• Fits 2013-2019 Mercedes-Benz B250, N/A, Diameter: 84.1mm
• Fits 2013-2019 Mercedes-Benz CLA200, N/A, Diameter: 84.1mm
• Fits 2013-2018 Mercedes-Benz A200, N/A, Diameter: 84.1mm
• Fits 2015-2017 Mercedes-Benz CLA180, N/A, Diameter: 84.1mm
• Fits 2017 Mercedes-Benz SLC180, N/A, Diameter: 84.1mm
• Fits 2013-2016 Mercedes-Benz A180, N/A, Diameter: 84.1mm
• Fits 2016 Mercedes-Benz GLA180, N/A, Diameter: 84.1mm
• Fits 2012-2015 Mercedes-Benz B180, N/A, Diameter: 84.1mm
• Fits 2013-2014 Mercedes-Benz A250, N/A, Diameter: 84.1mm

Common Issues This Part Addresses

• Coolant leakage at the cylinder head sealing surface
• Compression loss between the head and block
• Combustion gas seepage into the cooling system
• Oil and coolant cross-contamination from a failed head gasket
• Repeat sealing failure after incorrect gasket thickness selection

Installation Notes and Tips

Confirm engine code, bore diameter, and gasket thickness before ordering. Elring 720.732 is an MLS gasket, so the cylinder head and block sealing surfaces must be clean, flat, and within specification before assembly. Always follow the vehicle service procedure for torque sequence, torque angle, and surface preparation when replacing a Mercedes-Benz CLA250 head gasket, GLA250 head gasket, or other listed application.

Quality Assurance

Elring is a recognized engine sealing manufacturer, and this gasket is built to OE-style dimensional requirements for the listed applications. Verify the part number 720.732 against the original gasket specification and the vehicle’s engine data before installation.
