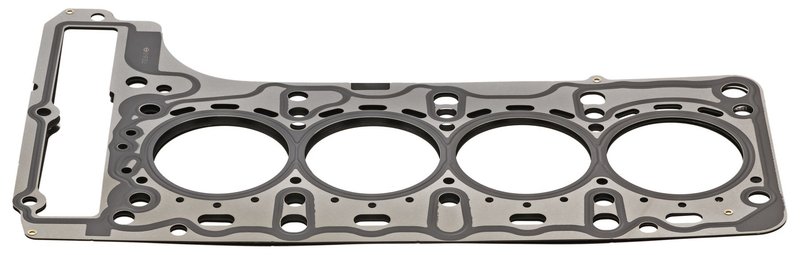

Elring 732.640 Engine Cylinder Head Gasket

Elring 732.640 Cylinder Head Gasket

The Elring 732.640 engine cylinder head gasket is a multilayer steel (MLS) gasket with an installed thickness of 1.35 mm and an 84 mm diameter. It is specified for select Mercedes-Benz diesel applications where precise sealing between the cylinder head and engine block is critical.

Key Features

• Engine cylinder head gasket for sealing the combustion chamber and coolant/oil passages
• Multilayer Steel (MLS) gasket design for controlled compression and sealing consistency
• Installed thickness: 1.35 mm
• Diameter: 84 mm
• Part number: 732.640
• Additional required article: 584.500

Detailed Description

Elring 732.640 is a head gasket built around MLS construction, a common OE-style sealing design used in modern engines that require stable clamping load and accurate thickness control. With an installed thickness of 1.35 mm and an 84 mm bore diameter, this gasket is matched to the listed Mercedes-Benz Sprinter 2500, Sprinter 3500, Sprinter, and GLK250 applications. The part number 732.640 is also useful when cross-checking service records or sourcing the correct replacement for engine rebuild work.

This part cross-references Four Seasons 54895 for the same application.

Vehicle Fitment

• Fits 2014-2017 Mercedes-Benz Sprinter 2500, N/A. Notes: Installed Thickness: 1.35mm; Diameter: 84mm
• Fits 2014-2017 Mercedes-Benz Sprinter 3500, N/A. Notes: Installed Thickness: 1.35mm; Diameter: 84mm
• Fits 2014-2016 Mercedes-Benz E250, N/A. Notes: Installed Thickness: 1.35mm; Diameter: 84mm
• Fits 2016 Mercedes-Benz Sprinter, N/A. Notes: Installed Thickness: 1.35mm; Diameter: 84mm
• Fits 2013-2015 Mercedes-Benz GLK250, N/A. Notes: Installed Thickness: 1.35mm; Diameter: 84mm

What It Is Used For

• Replacing a leaking cylinder head gasket on Mercedes-Benz Sprinter 2500 and Sprinter 3500 diesel engines
• Restoring compression sealing after head removal or engine overhaul
• Addressing coolant loss or oil seepage at the head-to-block sealing surface
• Correcting combustion sealing issues that can contribute to misfire or hard-start conditions
• Supporting accurate reassembly when the original gasket thickness and bore size must be matched

Installation Notes and Tips

Confirm the required additional article 584.500 before installation. Clean and inspect the cylinder head and block mating surfaces, verify flatness, and follow the engine manufacturer’s torque sequence and angle specifications. Because this gasket is specified by thickness and bore diameter, match the replacement to the engine build requirements before assembly. The Elring 732.640 should be installed only after all sealing surfaces and fasteners have been checked for wear or damage.

Quality Assurance

Elring is a recognized sealing-system manufacturer with extensive OE-level engine gasket coverage. The MLS construction and dimensional specifications on this gasket support accurate fitment for the listed Mercedes-Benz applications.
