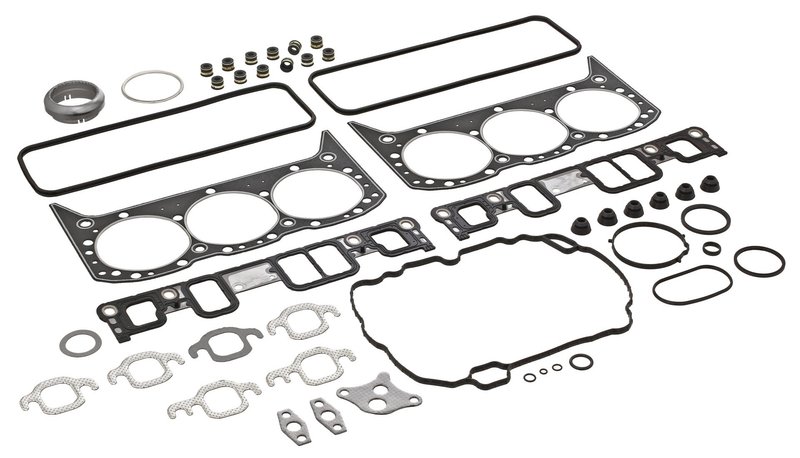

Elring 747.090 Engine Cylinder Head Gasket Set
| Brand | Elring 747.090 |
|---|---|
| Supplementary Article/Supplementary Info | With valve stem seals |
| Fits | Chevrolet and GMC · 50 vehicles |
Complete sealing set. Includes valve stem seals for top-end engine service.
Engine repair focused. Built for reliable sealing across critical gasket surfaces.
Cross-references 02-10175-01 and HS 9354 PT-7 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Engine Cylinder Head Gasket Set for GM V8 Applications
Elring 747.090 is an engine cylinder head gasket set built for sealing-critical engine service. It is listed for Chevrolet Silverado 1500, Chevrolet Express 1500, GMC Savana 1500, GMC Sierra 1500, and related applications, with valve stem seals included in the set.
Key Features
- Engine cylinder head gasket set for sealing service
- Includes valve stem seals
- Helps maintain compression and control fluid leakage
- Supports reliable sealing across multiple engine sealing points
- Elring part number 747.090 for catalog matching
Detailed Description
Elring 747.090 is a sealing set for engine top-end service, covering the gaskets and seals needed to restore proper sealing performance after cylinder head work. The included valve stem seals add coverage for a common wear point in the valvetrain area, helping reduce oil seepage and support cleaner engine operation. This part number 747.090 is a practical match for Chevrolet Silverado 1500, Chevrolet Express 1500, GMC Savana 1500, and GMC Sierra 1500 fitments listed in the catalog.
Elring focuses on gasket and seal solutions for engine repair, and this set reflects that approach with components intended to address leak-prone sealing surfaces. For buyers searching for a cylinder head gasket set for Chevrolet Silverado 1500 or GMC Sierra 1500 service, 747.090 provides a cataloged sealing solution for the specified applications.
Common Uses
- Repairing head gasket leaks that can cause coolant or combustion loss
- Restoring sealing after cylinder head removal or overhaul
- Addressing oil leakage through worn valve stem seals
- Correcting compression loss related to damaged sealing surfaces
- Supporting engine reseal work on listed Chevrolet and GMC applications
Installation Notes and Tips
Confirm engine code, cylinder head design, and all fitment details before installation. Clean mating surfaces thoroughly and inspect the head and block for warpage or damage before assembly. Follow the vehicle service manual for torque sequence, torque values, and reassembly procedures. Use the cataloged fitment for Chevrolet Silverado 1500, GMC Sierra 1500, and other listed applications to verify the correct sealing set before beginning repair.
Quality Assurance
Elring supplies engine sealing components for repair applications, and this gasket set is cataloged under part number 747.090 for the listed vehicles. This part cross-references Monroe Shocks & Struts (e.g., 02-10175-01, HS 9354 PT-7) for the same application.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2016 | Chevrolet | Silverado 1500 | — | — | — | 4.3L | V6 | — | — |
| 2014 | Chevrolet | Express 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2014 | Chevrolet | Silverado 1500 | — | — | — | 4.3L | V6 | — | — |
| 2014 | GMC | Savana 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2013 | Chevrolet | Express 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2013 | Chevrolet | Silverado 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2013 | GMC | Savana 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2013 | GMC | Sierra 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2012 | Chevrolet | Express 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2012 | Chevrolet | Silverado 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2012 | GMC | Savana 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2012 | GMC | Sierra 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2011 | Chevrolet | Express 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2011 | Chevrolet | Silverado 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2011 | GMC | Savana 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2011 | GMC | Sierra 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2010 | Chevrolet | Express 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2010 | Chevrolet | Silverado 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2010 | GMC | Savana 1500 | — | — | AWD | 5.3L | V8 | FLEX | — |
| 2010 | GMC | Sierra 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2009 | Chevrolet | Express 1500 | — | — | — | 5.3L | V8 | GAS | — |
| 2009 | Chevrolet | Silverado 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2009 | GMC | Savana 1500 | — | — | — | 5.3L | V8 | GAS | — |
| 2009 | GMC | Sierra 1500 | — | — | — | 6.2L | V8 | FLEX | — |
| 2008 | Chevrolet | Express 1500 | — | — | — | 5.3L | V8 | GAS | — |
| 2008 | Chevrolet | Silverado 1500 | — | — | — | 6.0L | V8 | GAS | — |
| 2008 | GMC | Savana 1500 | — | — | — | 5.3L | V8 | GAS | — |
| 2008 | GMC | Sierra 1500 | — | — | — | 6.2L | V8 | GAS | — |
| 2007 | Chevrolet | Express 1500 | — | — | — | 5.3L | V8 | GAS | — |
| 2007 | Chevrolet | Silverado 1500 | — | — | — | 6.0L | V8 | GAS | — |
| 2007 | Chevrolet | Silverado 1500 Classic | — | — | — | 6.0L | V8 | GAS | — |
| 2007 | GMC | Savana 1500 | — | — | — | 5.3L | V8 | GAS | — |
| 2007 | GMC | Sierra 1500 | — | — | — | 6.2L | V8 | GAS | — |
| 2007 | GMC | Sierra 1500 Classic | — | — | — | 6.0L | V8 | GAS | — |
| 2006 | Chevrolet | Express 1500 | — | — | — | 4.3L | V6 | — | — |
| 2006 | Chevrolet | Silverado 1500 | — | — | — | 4.3L | V6 | — | — |
| 2006 | GMC | Savana 1500 | — | — | — | 4.3L | V6 | — | — |
| 2006 | GMC | Sierra 1500 | — | — | — | 4.3L | V6 | — | — |
| 2005 | Chevrolet | Express 1500 | — | — | — | 4.3L | V6 | — | — |
| 2005 | Chevrolet | Silverado 1500 | — | — | — | 4.3L | V6 | — | — |
| 2005 | GMC | Savana 1500 | — | — | — | 4.3L | V6 | — | — |
| 2005 | GMC | Sierra 1500 | — | — | — | 4.3L | V6 | — | — |
| 2004 | Chevrolet | Cargo Van | Base | Standard Cargo Van | RWD | 4.3L | V6 | — | — |
| 2004 | Chevrolet | Express 1500 | — | — | — | 4.3L | V6 | — | — |
| 2004 | Chevrolet | Silverado 1500 | — | — | — | 4.3L | V6 | — | — |
| 2004 | GMC | Savana 1500 | — | — | — | 4.3L | V6 | — | — |
| 2004 | GMC | Sierra 1500 | — | — | — | 4.3L | V6 | — | — |
| 2003 | Chevrolet | Express 1500 | — | — | — | 4.3L | V6 | — | — |
| 2003 | Chevrolet | Silverado 1500 | — | — | — | 4.3L | V6 | — | — |
| 2002 | Chevrolet | Silverado 1500 | — | — | — | 4.3L | V6 | — | — |
