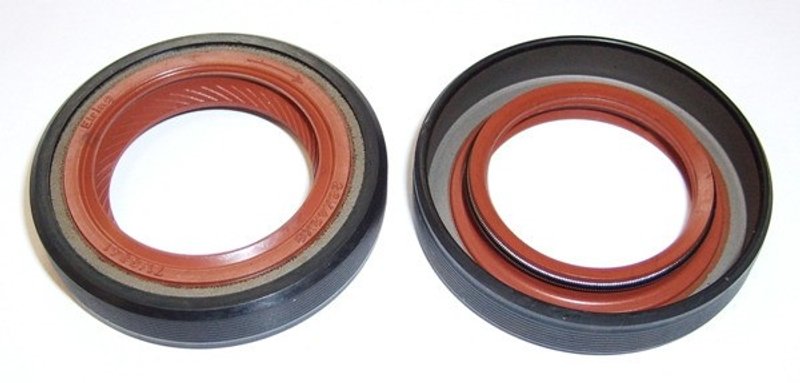

Elring 755.141 Engine Crankshaft Seal - Front
| Brand | Elring 755.141 |
|---|---|
| Position | Front |
| Dust Cover | with dust lip |
| Height 2 [mm] | 6 |
| Inside Diameter | 26.0 |
| Material | FPM (fluoride rubber)/ACM (polyacrylate rubber) |
| Outside Diameter | 42.0 |
| Radial Shaft Seal Design | ASW |
| Swirl Type | RD |
| Thickness | 8.0 |
| Fits | Fiat and Chevrolet · 16 vehicles |
Radial shaft seal design. ASW construction helps maintain a reliable seal around the crankshaft.
With dust lip. Adds extra protection against dirt and debris intrusion.
FPM/ACM material. Fluoride rubber and polyacrylate rubber provide durable sealing performance.
Cross-references 6 46 270, 6 46 816 and 50-306704-00 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Elring 755.141 Crankshaft Seal
Elring 755.141 is an engine crankshaft seal built for front timing-end service on select Chevrolet Chevy applications. It uses FPM (fluoride rubber) and ACM (polyacrylate rubber) materials to support sealing performance in demanding engine environments, with a dust lip to help keep contaminants away from the sealing edge.
Key Features
- Engine crankshaft seal for front timing-end applications
- Material construction: FPM (fluoride rubber) and ACM (polyacrylate rubber)
- Inside diameter: 26.0 mm
- Outside diameter: 42.0 mm
- Thickness: 8.0 mm
- Dust lip design for added contamination control
- Radial shaft seal design: ASW
- Swirl type: RD, right-hand twist
Detailed Description
This Elring crankshaft seal, part number 755.141, is specified for front engine sealing on Chevrolet Chevy models listed in the fitment data. The seal dimensions and radial shaft seal design are important for proper seating and shaft contact, while the FPM/ACM material blend is selected for engine oil exposure and heat resistance in sealing-system service. If you are replacing a leaking front crank seal on a Chevrolet Chevy, Elring 755.141 provides the dimensional match needed for the application.
This part cross-references 8042646 and NB697 for the same application.
What It Helps Address
- Front crankshaft oil leakage
- Oil seepage at the timing end of the engine
- Contamination entering the seal area
- Seal wear from age, heat, and shaft movement
- Loss of sealing performance around the crankshaft
Installation Notes and Tips
- Verify the inside diameter, outside diameter, and thickness before installation.
- Confirm the seal orientation matches the right-hand twist swirl type.
- Inspect the crankshaft sealing surface for grooves, scoring, or debris before fitting the new seal.
- Clean the housing and shaft area thoroughly to support proper seating.
- Use the vehicle notes to confirm front timing-end placement on the listed Chevrolet Chevy applications.
Quality Assurance
Elring is known for engine sealing components used in professional repair environments. Part number 755.141 is built to the listed dimensional and material specifications for the confirmed Chevrolet Chevy fitments.
Compatible With 1995-2001 Chevrolet Chevy, front timing end; compatible With 2002-2006 Chevrolet Chevy.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2006 | Chevrolet | Chevy | Base | Hatchback | FWD | 1.6L | L4 | N/A | — |
| 2005 | Chevrolet | Chevy | Base | Hatchback | FWD | 1.6L | L4 | N/A | — |
| 2004 | Chevrolet | Chevy | Base | Hatchback | FWD | 1.6L | L4 | N/A | — |
| 2003 | Chevrolet | Chevy | Base | Hatchback | FWD | 1.6L | L4 | N/A | — |
| 2002 | Chevrolet | Chevy | GL | Hatchback | FWD | 1.6L | L4 | N/A | — |
| 2001 | Chevrolet | Chevy | — | — | — | 1.6L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 2001 | Chevrolet | Chevy | — | — | — | 1.4L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 2000 | Chevrolet | Chevy | — | — | — | 1.6L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 1999 | Chevrolet | Chevy | — | — | — | 1.6L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 1999 | Chevrolet | Chevy | — | — | — | 1.4L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 1998 | Chevrolet | Chevy | — | — | — | 1.6L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 1998 | Chevrolet | Chevy | — | — | — | 1.4L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 1997 | Chevrolet | Chevy | — | — | — | 1.6L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 1997 | Chevrolet | Chevy | — | — | — | 1.4L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 1996 | Chevrolet | Chevy | — | — | — | 1.4L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
| 1995 | Chevrolet | Chevy | — | — | — | 1.4L | L4 | Front | Inner Diameter: 26mm; Outer Diameter: 42mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist; Timing End |
