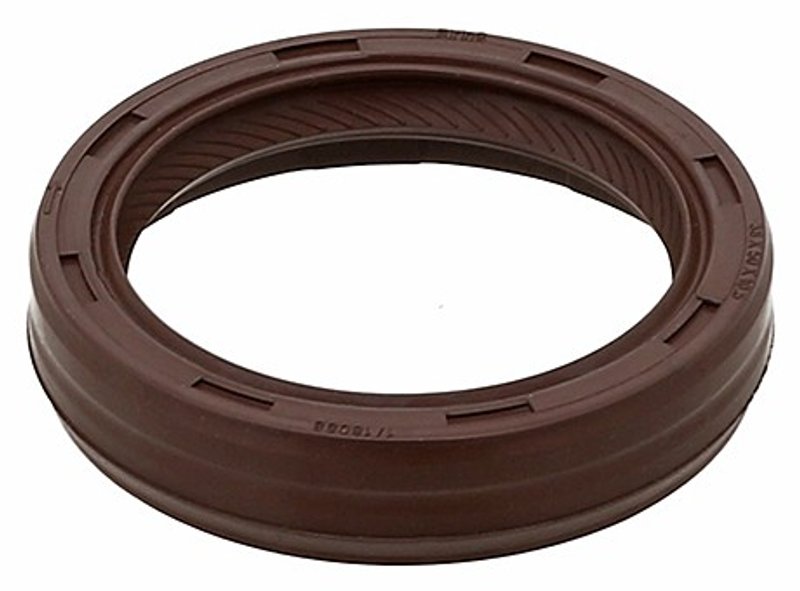

Elring 801.540 Engine Camshaft Seal

Elring 801.540 Camshaft Seal for Toyota and Lexus

Elring 801.540 is an engine camshaft seal built for precise sealing at the camshaft interface. It uses FPM (fluoride rubber) construction, a 10.5 mm height, and a dust lip to help keep contaminants out while maintaining a stable seal.

Compatible with select Toyota Camry, Sienna, Avalon, Solara, Highlander, and Lexus ES300, RX300, RX330, RX400h, and ES330 applications, this seal is sized for the specified 38 mm inner diameter and 50 mm outer diameter. The Elring 801.540 is a direct-fit sealing component for engines that require this radial shaft seal design.

Key Features

• Engine camshaft seal for sealing the camshaft area
• FPM (fluoride rubber) material for oil-resistant sealing performance
• With dust lip to help reduce contamination at the seal edge
• 10.5 mm height, 38 mm inner diameter, 50 mm outer diameter
• Radial shaft seal design: ASW
• Swirl type: RD, right-hand twist

Fitment Details

• Fits 2001-2010 Toyota Highlander, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2006-2008 Lexus RX400h, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 1999-2008 Toyota Solara, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2004-2006 Lexus ES330, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2004-2006 Lexus RX330, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 1994-2006 Toyota Camry, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 1998-2006 Toyota Sienna, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 1995-2004 Toyota Avalon, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 1994-2003 Lexus ES300, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 1999-2003 Lexus RX300, N/A; Width: 10.5mm; Inner Diameter: 38mm; Outer Diameter: 50mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 1993 Lexus ES300, N/A
• Fits 1992-1993 Toyota Camry, N/A

What This Seal Helps Address

• Oil seepage at the camshaft seal area
• Contamination entering the sealing surface
• Wear-related sealing loss from age and heat cycling
• Leak concerns during camshaft service or timing-related repairs
• Replacement needs on Toyota and Lexus engines using this seal size

Installation Notes and Tips

Confirm the seal dimensions, swirl direction, and engine application before installation. Inspect the camshaft sealing surface for scoring or wear, and clean the bore thoroughly so the new seal seats evenly. Use proper installation tools to avoid distorting the lip or damaging the dust cover.

This part cross-references Victor Reinz 81-53572-00 for the same application.

Quality Assurance

Elring is known for engine sealing components used in professional repair environments. Part number 801.540 is manufactured as a precision camshaft seal with FPM material and the specified ASW radial shaft seal design for the listed Toyota and Lexus applications.
