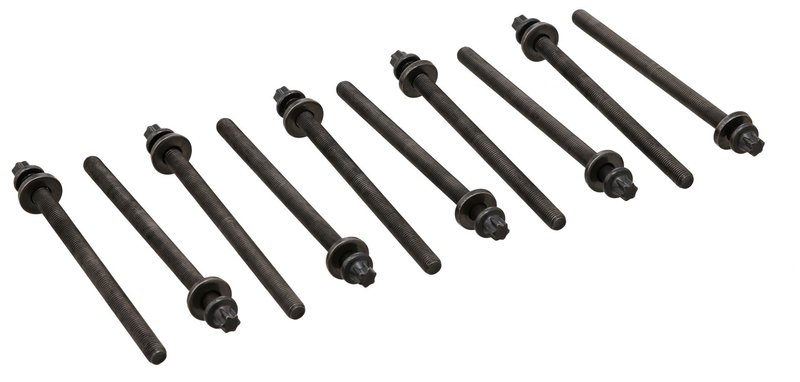

Elring 803.060 Engine Cylinder Head Bolt Set

Elring Cylinder Head Bolt Set 803.060

Elring 803.060 is a 10-piece engine cylinder head bolt set built for applications that require M10 x 1.25 x 153 mm fasteners with a Male Torx head. This set is used in a range of Chevrolet, Pontiac, Saturn, and Suzuki vehicles, including Chevrolet Cruze, Sonic, and Trax applications.

Key Features

• Engine cylinder head bolt set for service and rebuild work
• 10 bolts per set
• Male Torx bolt head / nut design
• TX-E 12 spanner size
• Thread size: M10 x 1.25 x 153 mm
• Elring part number 803.060

Detailed Description

Built to match the specified fastener dimensions, Elring 803.060 is a direct-fit cylinder head bolt set for engines that call for M10 thread size, 1.25 mm pitch, and 153 mm length. The Male Torx drive and TX-E 12 tool size support proper torque application during cylinder head service. This part number 803.060 is listed for multiple GM small-car platforms, including Chevrolet Cruze, Chevrolet Sonic, and Chevrolet Trax, along with related Pontiac, Saturn, and Suzuki models.

This part cross-references MAHLE GS33859 for the same application.

What It Is Used For

• Replacing stretched or torque-to-yield cylinder head bolts during head gasket service
• Restoring proper cylinder head clamping force after engine teardown
• Addressing head bolt wear, corrosion, or thread damage found during repair
• Supporting reassembly on Chevrolet Cruze, Sonic, and Trax engine work

Installation Notes and Tips

• Verify bolt length, thread size, and head design before installation.
• Use the specified torque sequence and tightening stages for the engine.
• Inspect cylinder head and block threads before assembly.
• Replace head bolts as a set when the service procedure calls for new fasteners.
• Confirm vehicle-specific fitment for your exact engine configuration before ordering.

Quality Assurance

Elring is a recognized OE-focused engine sealing and fastening brand, and this bolt set is manufactured to meet the dimensional requirements listed for the application. Interchange references include MAHLE GS33859 and Elring 803.060.
