Elring 821.530 Automatic Transmission Gasket SetOE Quality 60-Day Returns
Part #: 821.530

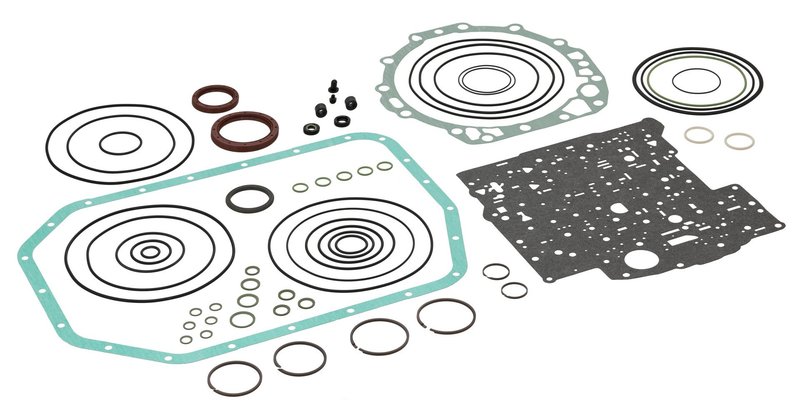

Elring 821.530 Automatic Transmission Gasket Set

54 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$201.06Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Land Rover and BMW, Range Rover, 540i, X5, 740i, 740iL, and 840Ci
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Automatic Transmission Gasket Set options

Automatic Transmission Gasket Set for ZF5HP24

Elring 821.530 is an automatic transmission gasket set for vehicles equipped with the ZF5HP24 transmission and an all-wheel drive drivetrain. It is specified for applications using a sheet steel oil sump and is supplied without bolts or screws. This part number is used across select BMW, Jaguar, and Land Rover models, including Range Rover, X5, and XJ8 applications.

Key Features

  • Automatic transmission gasket set for ZF5HP24 units
  • For all-wheel drive applications
  • Designed for sheet steel oil sump configurations
  • Supplied without bolts or screws
  • Elring part number 821.530 for transmission sealing service
  • This part cross-references 1058 298 022 for the same application

Detailed Description

Elring 821.530 is a transmission sealing solution for service work on the ZF5HP24 automatic transmission. It is relevant for BMW 540i, BMW X5, Jaguar XJ8, Jaguar XJR, Jaguar XK8, Jaguar XKR, BMW 740i, BMW 740iL, BMW 840Ci, and Land Rover Range Rover applications listed in the fitment data. When replacing transmission seals during pan service or related maintenance, using the correct gasket set helps maintain a proper seal at the oil sump interface. If you are sourcing an Elring 821.530 gasket set for BMW X5 or Jaguar XJ8 service, verify the transmission type and sump construction before installation.

Vehicle Fitment

  • Fits 2003-2005 Land Rover Range Rover, N/A
  • Fits 1997-2003 BMW 540i, N/A
  • Fits 2000-2003 BMW X5, N/A
  • Fits 1998-2003 Jaguar XJ8, N/A
  • Fits 1998-2003 Jaguar XJR, N/A
  • Fits 1997-2002 Jaguar XK8, N/A
  • Fits 2000-2002 Jaguar XKR, N/A
  • Fits 1997-2001 BMW 740i, N/A
  • Fits 1995 BMW 740i, N/A
  • Fits 1995-2001 BMW 740iL, N/A
  • Fits 1994-1997 BMW 840Ci, N/A

Common Service Uses

  • Transmission pan gasket replacement during fluid service
  • Repairing seepage at the automatic transmission oil sump
  • Restoring a proper seal after transmission maintenance
  • Addressing leaks on ZF5HP24-equipped BMW, Jaguar, and Land Rover vehicles

Installation Notes

Confirm the transmission code as ZF5HP24 and verify that the vehicle uses a sheet steel oil sump before installation. Clean the mating surfaces thoroughly and inspect the pan and sealing faces for damage or distortion. This Elring 821.530 set is listed without bolts or screws, so reuse or replacement of fasteners must be handled separately according to the vehicle service procedure.

Quality Assurance

Elring is a recognized sealing-system manufacturer with OE-level application coverage in transmission service parts. Part number 821.530 is cataloged for direct-fit use on the listed BMW, Jaguar, and Land Rover applications when the transmission and sump specifications match.

BrandElring
Part Number821.530
Drive TypeAll-wheel Drive
Oil sump MaterialSheet Steel
Supplementary Article/Info 2without bolts/screws
Transmission TypeZF5HP24

This part fits 54 vehicles. Search below:

YearMakeModelTransmissionLitersCylindersFuel TypePositionNotes
2005Land RoverRange Rover4.4LV8N/A
2004Land RoverRange Rover4.4LV8GASN/A
2003BMW540iAutomatic4.4LV8N/A
2003BMWX54.6LV8N/A
2003BMWX54.4LV8N/A
2003JaguarXJ84.0LV8GASN/A
2003JaguarXJR4.0LV8GASN/A
2003Land RoverRange Rover4.4LV8N/A
2002BMW540iAutomatic4.4LV8N/A
2002BMWX54.6LV8N/A
2002BMWX54.4LV8N/A
2002JaguarXJ84.0LV8GASN/A
2002JaguarXJR4.0LV8GASN/A
2002JaguarXK84.0LV8GASN/A
2002JaguarXKR4.0LV8GASN/A
2001BMW540iAutomatic4.4LV8N/A
2001BMW740i4.4LV8N/A
2001BMW740iL4.4LV8N/A
2001BMWX54.4LV8N/A
2001JaguarXJ84.0LV8GASN/A
2001JaguarXJR4.0LV8GASN/A
2001JaguarXK84.0LV8GASN/A
2001JaguarXKR4.0LV8GASN/A
2000BMW540iAutomatic4.4LV8N/A
2000BMW740i4.4LV8N/A
2000BMW740iL4.4LV8N/A
2000BMWX54.4LV8N/A
2000JaguarXJ84.0LV8GASN/A
2000JaguarXJR4.0LV8GASN/A
2000JaguarXK84.0LV8GASN/A
2000JaguarXKR4.0LV8GASN/A
1999BMW540iAutomatic4.4LV8N/A
1999BMW740i4.4LV8N/A
1999BMW740iL4.4LV8N/A
1999JaguarXJ84.0LV8GASN/A
1999JaguarXJR4.0LV8GASN/A
1999JaguarXK84.0LV8GASN/A
1998BMW540iAutomatic4.4LV8N/A
1998BMW740i4.4LV8N/A
1998BMW740iL4.4LV8N/A
1998JaguarXJ84.0LV8GASN/A
1998JaguarXJR4.0LV8GASN/A
1998JaguarXK84.0LV8GASN/A
1997BMW540iAutomatic4.4LV8N/A
1997BMW740i4.4LV8N/A
1997BMW740iL4.4LV8N/A
1997BMW840Ci4.4LV8N/A
1997JaguarXK84.0LV8GASN/A
1996BMW740iL4.4LV8N/A
1996BMW840Ci4.4LV8N/A
1995BMW740i4.0LV8GASN/A
1995BMW740iL4.0LV8GASN/A
1995BMW840Ci4.0LV8GASN/A
1994BMW840Ci4.0LV8GASN/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

1058 298 022

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
