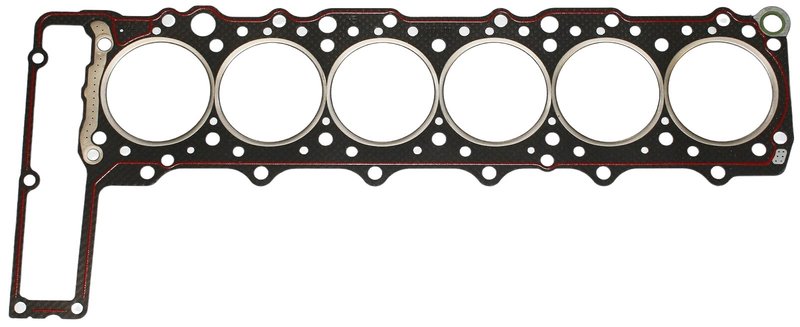

Elring 833.200 Engine Cylinder Head Gasket

Elring 833.200 Cylinder Head Gasket for Mercedes-Benz Diesel

Elring 833.200 is an engine cylinder head gasket built for specific Mercedes-Benz diesel applications. It uses a fibre composite gasket design with an 88.5 mm cylinder bore and 1.74 mm thickness, with installed thickness listed at 1.65 mm.

Compatible with 1987 Mercedes-Benz 300D, 1986-1987 Mercedes-Benz 300SDL, and 1987 Mercedes-Benz 300TD, this gasket supports accurate sealing for the cylinder head on these diesel engines. The Elring 833.200 part number is also useful when cross-checking OE-style replacement needs for Mercedes-Benz 300D and 300SDL engine service.

Key Features

• Engine cylinder head gasket for diesel engine sealing
• Fibre composite gasket design for a precise head-to-block seal
• 88.5 mm cylinder bore and 88.5 mm diameter
• Thickness: 1.74 mm
• Installed thickness: 1.65 mm
• Fits select Mercedes-Benz 300D, 300SDL, and 300TD applications
• Elring part number 833.200 for catalog and service matching

Detailed Description

Elring 833.200 is specified as an engine cylinder head gasket for Mercedes-Benz diesel engines with an 88.5 mm bore. The fibre composite construction is used to create a controlled sealing surface between the cylinder head and engine block, helping maintain compression and fluid separation in the combustion chamber area. For buyers searching for a Mercedes-Benz 300D head gasket or a Mercedes-Benz 300SDL cylinder head gasket, this part number provides a direct reference for the listed applications.

This part cross-references Walker Exhaust 50092 for the same application. The Elring 833.200 gasket is also associated with additional reference numbers used in interchange lookup, including 61-27005-30 and 603 016 34 20.

What It Is Used For

• Replacing a leaking cylinder head gasket on listed Mercedes-Benz diesel engines
• Restoring compression loss caused by head gasket failure
• Addressing coolant or oil seepage at the cylinder head sealing surface
• Correcting combustion sealing issues after engine teardown
• Supporting engine reassembly on 1987 Mercedes-Benz 300D, 1986-1987 Mercedes-Benz 300SDL, and 1987 Mercedes-Benz 300TD

Installation Notes and Tips

Verify cylinder bore size, gasket thickness, and engine code before installation. The listed additional required article number is 820.122, so confirm related service parts are on hand before beginning the repair. Clean the head and block mating surfaces thoroughly, inspect for warpage, and follow the manufacturer’s torque sequence and tightening specifications during assembly.

Quality Assurance

Elring is a recognized name in engine sealing systems, and this gasket is cataloged for precise fitment on the listed Mercedes-Benz diesel applications. Confirm part number 833.200 against the vehicle and engine specification before installation.
