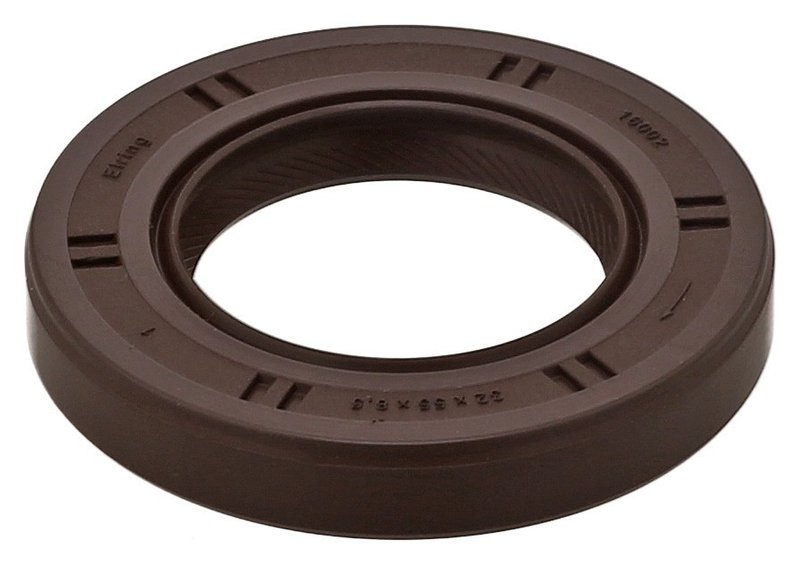

Elring 841.950 Engine Camshaft Seal

Elring 841.950 Camshaft Seal for Subaru

Elring 841.950 is an engine camshaft seal built for Subaru applications that require a 32 mm inner diameter and 55 mm outer diameter seal with a dust lip. Made from FPM (fluoride rubber), it is specified for radial shaft seal design AS and swirl type RD, helping maintain a secure seal at the camshaft area.

Use this Elring camshaft seal when servicing Subaru WRX, WRX STI, Impreza, Forester, Legacy, Outback, Baja, and Saab 9-2X applications that match the listed dimensions and configuration. The part number 841.950 is also referenced in OE-style replacement searches for these vehicles.

Key Features

• Engine camshaft seal for sealing the camshaft area
• Elring part number 841.950
• FPM (fluoride rubber) construction for sealing performance
• Dust lip helps protect the sealing edge from contamination
• 32 mm inner diameter, 55 mm outer diameter, 8 mm height
• Radial shaft seal design AS with swirl type RD

Detailed Description

Elring 841.950 is a precision engine sealing component used in Subaru boxer engine applications where the camshaft seal dimensions must match exactly. The seal’s FPM material is selected for demanding engine environments, while the dust lip adds an extra barrier against dirt and debris at the shaft interface. If you are replacing a leaking camshaft seal on a Subaru WRX STI, Subaru Impreza, or Subaru Forester, confirm the dimensions and swirl type before installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Oil seepage at the camshaft seal area
• Oil residue around the timing cover or front engine area
• Contamination entering the seal lip area
• Seal wear from age, heat, and engine cycling
• Loss of sealing integrity after engine service

Installation Notes and Tips

• Verify the 32 mm inner diameter and 55 mm outer diameter before installation.
• Inspect the camshaft surface for scoring, pitting, or wear that could affect sealing.
• Clean the bore and shaft thoroughly so the dust lip seats correctly.
• Use proper seal installation tools to avoid damaging the sealing edge.
• Confirm vehicle-specific notes for Subaru WRX STI, Subaru WRX, and other listed applications, including the right-hand twist swirl type where noted.

Quality Assurance

Elring is a recognized engine sealing brand, and this camshaft seal is manufactured to the listed dimensional and material specifications for accurate replacement use. Part number 841.950 is built for direct-fit applications where the seal dimensions and design details must match the original component.

Compatible Vehicles

• Fits 2015-2021 Subaru WRX, N/A
• Fits 2013-2020 Subaru WRX STI, N/A; Inner Diameter: 32mm; Outer Diameter: 55mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2002-2016 Subaru Impreza, N/A; Inner Diameter: 32mm; Outer Diameter: 55mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2014-2015 Subaru Forester, N/A
• Fits 2013-2014 Subaru WRX, N/A; Inner Diameter: 32mm; Outer Diameter: 55mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2004-2013 Subaru Forester, N/A; Inner Diameter: 32mm; Outer Diameter: 55mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2005-2012 Subaru Legacy, N/A; Inner Diameter: 32mm; Outer Diameter: 55mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2012 Subaru WRX, N/A; frontal sided
• Fits 2005-2009 Subaru Outback, N/A; Inner Diameter: 32mm; Outer Diameter: 55mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2005-2006 Saab 9-2X, N/A; Inner Diameter: 32mm; Outer Diameter: 55mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2004-2006 Subaru Baja, N/A; Inner Diameter: 32mm; Outer Diameter: 55mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2003 Subaru Baja, N/A
