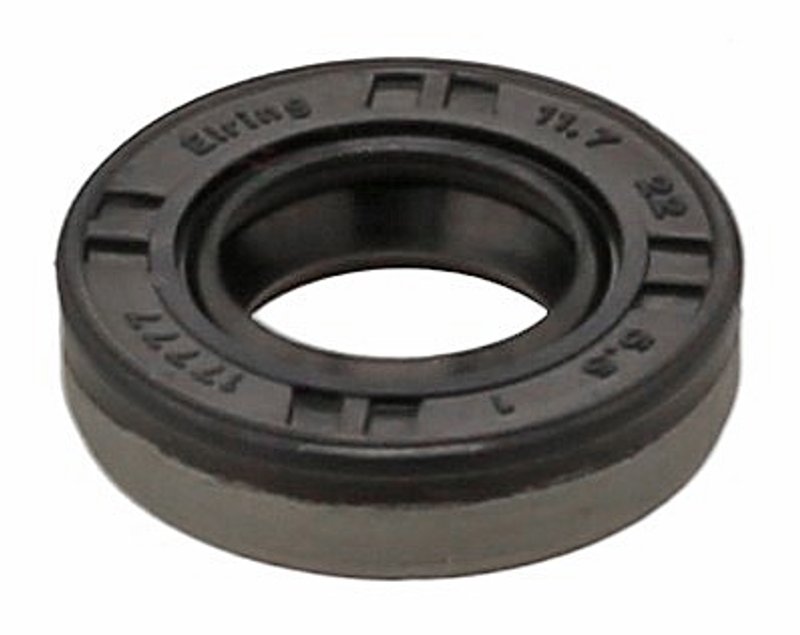

Elring 846.260 Automatic Transmission Axle Shaft Oil Seal

Overview of Elring Automatic Transmission Axle Shaft Oil Seal 846.260

The Elring 846.260 automatic transmission axle shaft oil seal is engineered for reliable sealing performance in select Audi and Volkswagen models. Designed with a dust lip and made from durable ACM (polyacrylate) material, this seal helps maintain transmission integrity and prevent fluid leaks.

• Dust cover with integrated dust lip for enhanced protection
• Height: 5.5 mm for precise fitment
• Inner diameter: 11.7 mm ensuring proper shaft sealing
• Outer diameter: 22 mm for secure installation
• Radial shaft seal design type A/bs for effective sealing
• Constructed from ACM (polyacrylate) material for resistance to heat and transmission fluids

Technical Details and Material Specifications

This automatic transmission axle shaft oil seal from Elring features a radial shaft seal design classified as A/bs, which is suitable for dynamic sealing applications in automotive transmissions. The seal’s ACM (polyacrylate) composition offers excellent resistance to heat, oil, and aging, making it suitable for the demanding environment inside Audi and Volkswagen transmissions. The dust lip provides additional protection against contaminants, extending the service life of the transmission components. With an inner diameter of 11.7 mm and an outer diameter of 22 mm, the seal fits precisely to maintain a tight barrier around the axle shaft. The 5.5 mm height ensures compatibility with the specified transmission housings.

Compatible Vehicles and Applications

This Elring 846.260 oil seal is compatible with a range of Audi and Volkswagen models, including:

• Audi A4, A4 allroad, A4 Quattro
• Audi A5, A5 Quattro, A5 Sportback
• Audi A6, A6 Quattro, A7
• Volkswagen GTI, Q5, Q5 Sportback

It is specifically designed for use in automatic transmission axle shafts, ensuring proper sealing and preventing fluid leaks in these vehicles.

Common Issues Addressed by This Oil Seal

• Prevents automatic transmission fluid leaks around the axle shaft
• Protects transmission internals from dust and contaminants with the dust lip
• Reduces risk of premature transmission wear due to fluid loss
• Maintains proper pressure and lubrication within the transmission system
• Helps avoid costly transmission repairs related to seal failure

Installation Notes and Tips

• Ensure the shaft and housing surfaces are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify the seal orientation, with the dust lip facing outward to block contaminants
• Check for proper fitment by confirming dimensions: 11.7 mm inner diameter, 22 mm outer diameter, and 5.5 mm height
• Consult vehicle service manual for torque specifications and installation procedures

Quality Assurance and Warranty

Elring manufactures this automatic transmission axle shaft oil seal to meet OEM standards for durability and performance. The use of ACM material ensures resistance to heat and transmission fluids, contributing to long service life. While specific warranty details may vary, Elring products typically come with a limited warranty against manufacturing defects. For precise warranty information, refer to the product documentation or contact the distributor.
