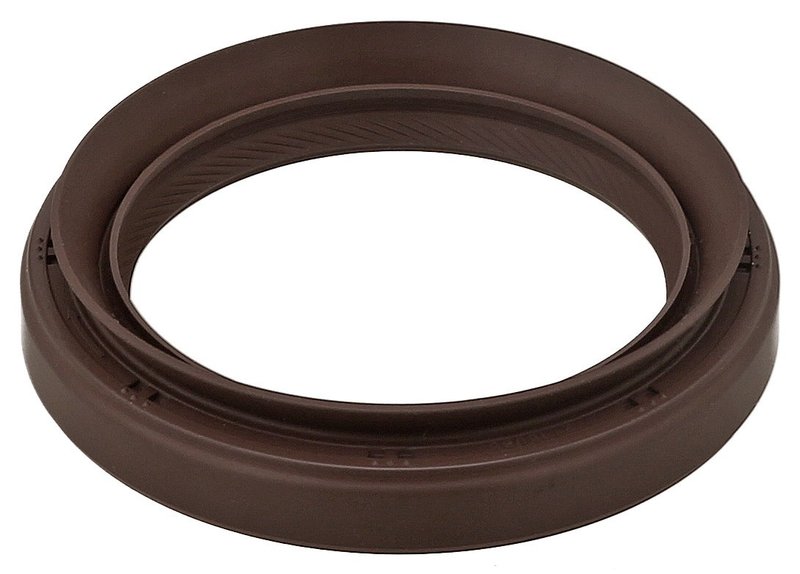

Elring 848.410 Engine Crankshaft Seal - Front

Elring 848.410 Crankshaft Seal Overview

Elring 848.410 is an engine crankshaft seal built with FPM (fluoride rubber) for sealing performance in demanding engine environments. It features a 50.0 mm inside diameter, 68.0 mm outside diameter, and 14.0 mm thickness, plus a dust lip to help keep contaminants away from the sealing surface.

Compatible with Toyota Hiace and Toyota Hilux applications, this Elring crankshaft seal is a direct-fit sealing component for front or non-position-specific use where listed by the vehicle application.

Key Features

• FPM (fluoride rubber) construction for engine sealing applications
• 50.0 mm inside diameter, 68.0 mm outside diameter, 14.0 mm thickness
• Dust lip helps reduce dirt intrusion at the shaft interface
• Radial shaft seal design: AS
• Swirl type: RD
• Elring 848.410 for Toyota Hiace and Toyota Hilux fitment

Detailed Product Description

This Elring crankshaft seal is engineered as a radial shaft seal for the crankshaft area, where stable sealing is critical to controlling engine oil leakage. The FPM material is selected for use in high-temperature, oil-exposed engine locations, while the dust lip adds an extra barrier against external contamination. Elring 848.410 is listed for 2020, 2021, 2023, 2024-2025 Toyota Hilux and 2021, 2023, 2025 Toyota Hiace applications, including front-position fitment where specified.

This part cross-references Toyota 90311-50017 and 90311-T0054 for the same application.

What This Seal Helps Address

• Engine oil seepage at the crankshaft sealing point
• Contamination entering the seal area from road dust and debris
• Wear-related sealing loss on high-mileage engines
• Leak diagnosis on Toyota Hiace and Toyota Hilux crankshaft service jobs

Installation Notes and Tips

Inspect the crankshaft sealing surface for scoring, wear, or contamination before installation. Clean the bore and shaft area thoroughly, and verify the seal orientation matches the engine application. For Toyota Hiace and Toyota Hilux service work, confirm the position listed for the vehicle before installation and replace any damaged mating components as needed.

Quality Assurance

Elring is a recognized engine sealing brand with a focus on precision gasket and seal applications. Part number 848.410 is specified with defined dimensions and material details to support accurate replacement selection.
