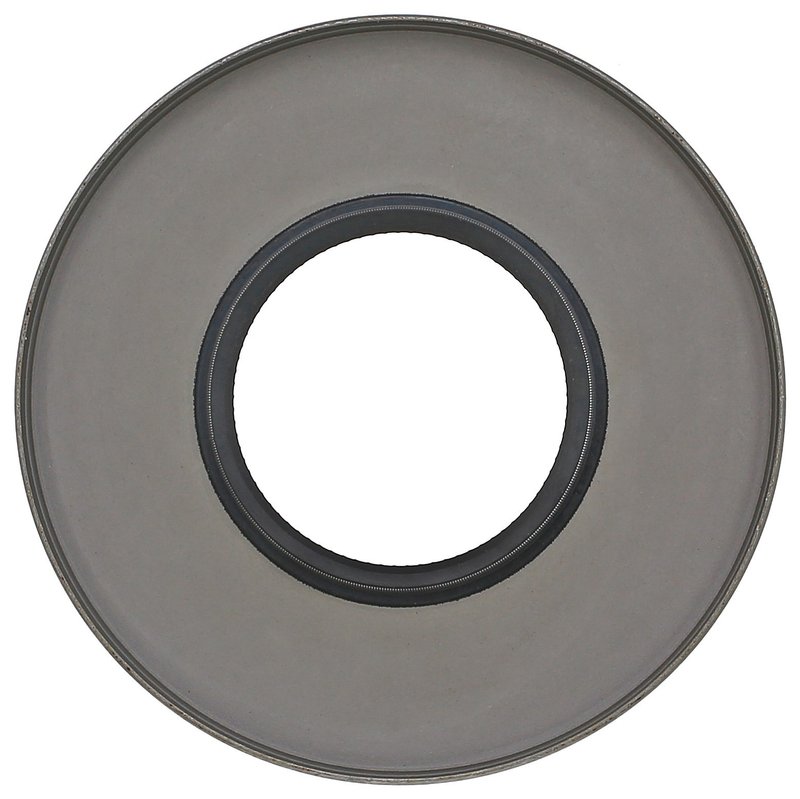

Elring 852.130 Manual Transmission Main Shaft Seal

Manual Transmission Main Shaft Seal for Audi

Elring 852.130 is a manual transmission main shaft seal built for precise shaft sealing in select Audi applications. It uses ACM (polyacrylate) material, a 37.0 mm inside diameter, 82.0 mm outside diameter, and 8.0 mm thickness, with a dust lip to help keep contaminants away from the sealing edge.

Compatible with Audi A4, A5, A6, A7, A1, A4 allroad, A5 Sportback, A6 allroad, and Q5 applications listed below, this seal is a direct-fit service part for Ultra Quattro and other confirmed configurations. Part number 852.130 is also referenced for OE cross-reference 0CJ 409 255.

Key Features

• Manual transmission main shaft seal for transmission sealing service
• 37.0 mm inside diameter, 82.0 mm outside diameter, 8.0 mm thickness
• ACM (polyacrylate) sealing material for transmission use
• Dust lip design helps reduce contamination at the seal face
• Radial shaft seal design: A/BS
• Swirl type: RD, right-hand twist
• Elring 852.130 for confirmed Audi fitments

Detailed Description

Elring 852.130 is a transmission sealing component for the manual transmission main shaft, engineered around the listed dimensions and seal profile. The ACM construction is suited to transmission environments where stable sealing performance and resistance to fluid exposure are important. The dust lip adds an extra barrier at the shaft opening, while the A/BS radial shaft seal design and RD swirl type support the specified application geometry.

This part number 852.130 is listed for Audi A4 Quattro, A5 Quattro, A6 Quattro, A7 Sportback, A4 allroad, A5 Sportback, A6 allroad, Q5, A4, A5, and A1 applications shown in the fitment table. For buyers searching for an Audi manual transmission main shaft seal, Elring 852.130 provides a dimension-matched service solution for the confirmed vehicles.

Vehicle Fitment

• Fits 2021-2024 Audi A6 allroad, N/A, Version: Ultra Quattro
• Fits 2020-2024 Audi A6 Quattro, N/A, Version: Ultra Quattro
• Fits 2020-2024 Audi A7 Sportback, N/A, Version: Ultra Quattro
• Fits 2020-2023 Audi A5 Quattro, N/A, Version: Ultra Quattro
• Fits 2020-2023 Audi A5 Sportback, N/A, Version: Ultra Quattro
• Fits 2021 Audi A4 Quattro, N/A, Version: Ultra Quattro
• Fits 2017 Audi A4 Quattro, N/A, Version: Ultra Quattro
• Fits 2021 Audi A5, N/A
• Fits 2019 Audi A5, N/A
• Fits 2020-2021 Audi Q5, N/A, Version: Ultra Quattro
• Fits 2020 Audi A1, N/A
• Fits 2017-2020 Audi A4 allroad, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2018-2020 Audi A4 Quattro, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2020 Audi A6 allroad, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2019 Audi A4, N/A
• Fits 2015 Audi A4, N/A
• Fits 2018-2019 Audi A5 Quattro, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2018-2019 Audi A5 Sportback, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2019 Audi A6 Quattro, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2019 Audi A7 Sportback, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2018-2019 Audi Q5, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist
• Fits 2018 Audi A5, N/A, Inner Diameter: 37mm; Outer Diameter: 82mm; Dust Cover: with dust lip; Swirl Type: Right-hand Twist

Common Repair Uses

• Transmission fluid seepage at the main shaft area
• Dust or road contamination entering the seal interface
• Seal wear from age, heat, or shaft movement
• Service replacement during manual transmission repair
• Leak diagnosis on confirmed Audi Ultra Quattro applications

Installation Notes and Tips

Verify shaft diameter, seal orientation, and housing dimensions before installation. Clean the sealing bore and shaft surface thoroughly, and inspect for scoring or wear that could affect sealing performance. Match the right-hand twist and dust lip orientation to the original application, and confirm the vehicle’s transmission configuration against the fitment list before ordering.

Quality Assurance

Elring is a recognized OE-level sealing brand, and this part is built to the listed dimensional and design specifications for the confirmed Audi applications. Part number 852.130 cross-references 0CJ 409 255 for the same application.
